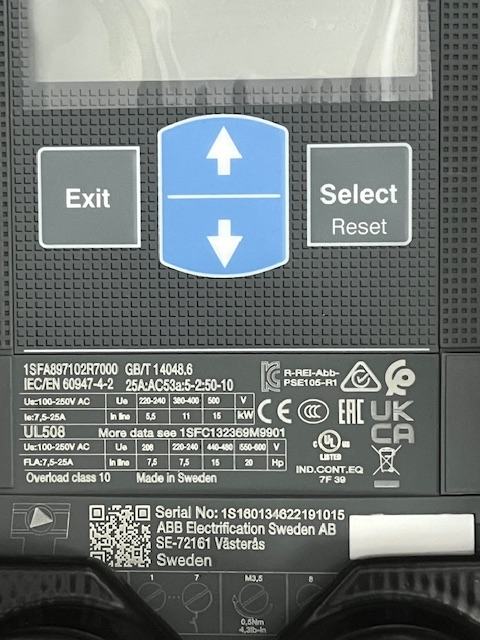

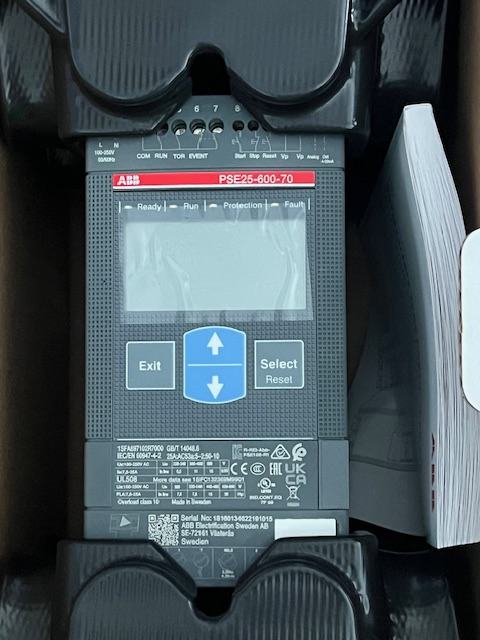

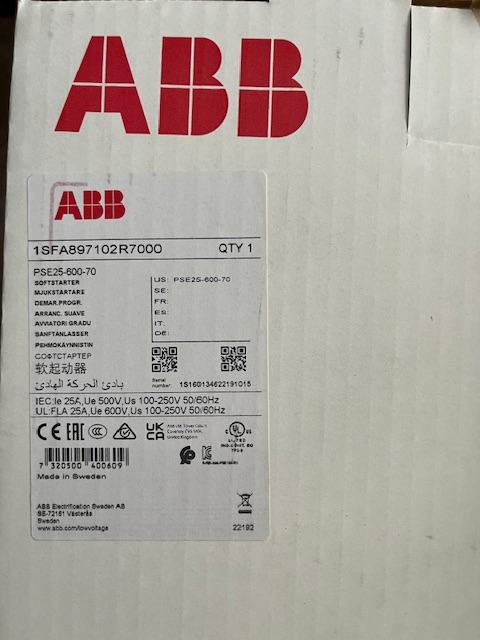

Prodajem 5 novih : ABB PSE Digital Soft Starter PSE25-600-70 (1SFA897102R7000).
Cjena po komadu 250 eura.
Link:
https://www.tme.eu/hr/en/details/pse25-600-70/soft-starters/abb/1sfa897102r7000/
Opis:
ABB PSE Digital Soft Start to 25A for 11kW 400V 3 phase motor
Starting Capacity: 4 x Motor rated current for 10 seconds
Trip Class 10 Rating: (Normal Duty eg. Centrifugal Pump, Compressor):
11kW, 25A @400Vac
Trip Class 30 Rating: (Heavy Duty eg. Mixer, Crusher):
7.5kW, 18A @400Vac
For Trip Class guidelines see ‘PSE Datasheet’ below.
If more than 10 starts per hour are required then the next rating up should be selected. See linked products below.
Size: Frame A: 245mm High x 90mm Wide x 185.5mm Deep.
IP Rating: IP00 (main circuit) IP20 (supply and control circuit)
Weight: 2.4kg
Features include:
HMI with 4 x 7 segment display, navigation and selection keys.
3 x Digital Inputs, 1 x Analogue Output, 3 x Relay Contact Sets.
Motor Thermal Overload Protection.
Ramp Time during start: 1-30s
Ramp Time during stop: 1-30s
Input Voltage: 208-600Vac 3 Phase +10% -15% at 50/60Hz.
Control Supply: 110-250Vac Single Phase +10% -15%, 50/60Hz
Mounting: Cubicle mount.
Ambient Temperature: Rated at -10C to 40C without de-rating.
Cjena po komadu 250 eura.
Link:
https://www.tme.eu/hr/en/details/pse25-600-70/soft-starters/abb/1sfa897102r7000/
Opis:
ABB PSE Digital Soft Start to 25A for 11kW 400V 3 phase motor
Starting Capacity: 4 x Motor rated current for 10 seconds
Trip Class 10 Rating: (Normal Duty eg. Centrifugal Pump, Compressor):
11kW, 25A @400Vac
Trip Class 30 Rating: (Heavy Duty eg. Mixer, Crusher):
7.5kW, 18A @400Vac
For Trip Class guidelines see ‘PSE Datasheet’ below.
If more than 10 starts per hour are required then the next rating up should be selected. See linked products below.
Size: Frame A: 245mm High x 90mm Wide x 185.5mm Deep.
IP Rating: IP00 (main circuit) IP20 (supply and control circuit)
Weight: 2.4kg
Features include:
HMI with 4 x 7 segment display, navigation and selection keys.
3 x Digital Inputs, 1 x Analogue Output, 3 x Relay Contact Sets.
Motor Thermal Overload Protection.
Ramp Time during start: 1-30s
Ramp Time during stop: 1-30s
Input Voltage: 208-600Vac 3 Phase +10% -15% at 50/60Hz.
Control Supply: 110-250Vac Single Phase +10% -15%, 50/60Hz
Mounting: Cubicle mount.
Ambient Temperature: Rated at -10C to 40C without de-rating.
