STEP MOTOR (OSIJEK)
- Cijena
- 30 €
Šifra oglasa: 27912733
Osnovne informacije
- Lokacija
- Osječko-baranjska, Osijek, Donji grad
- Stanje
- rabljeno
Opis oglasa
ISPRAVAN VRLO MALO KORIŠTEN.

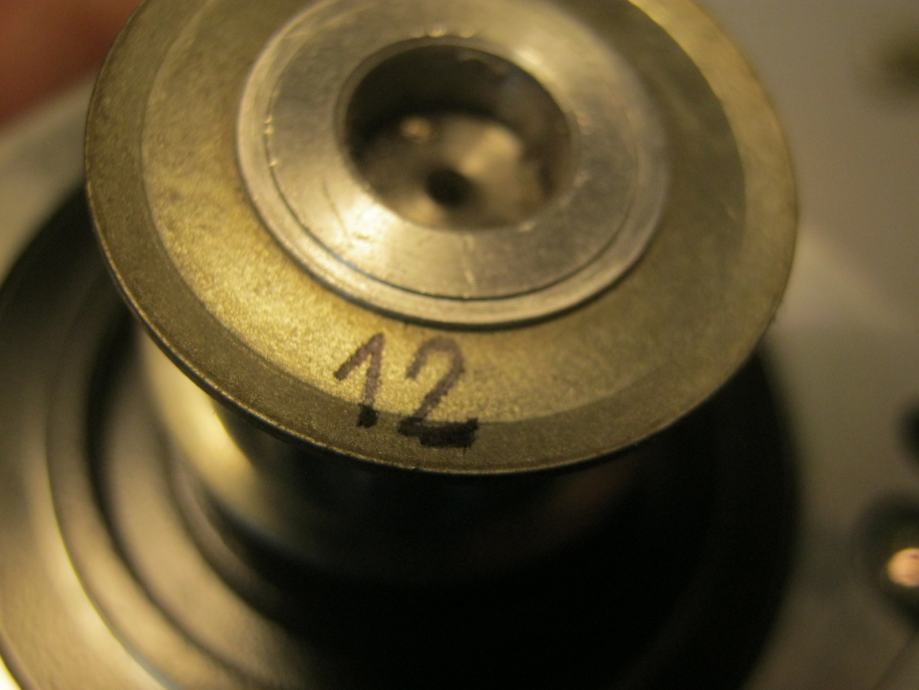

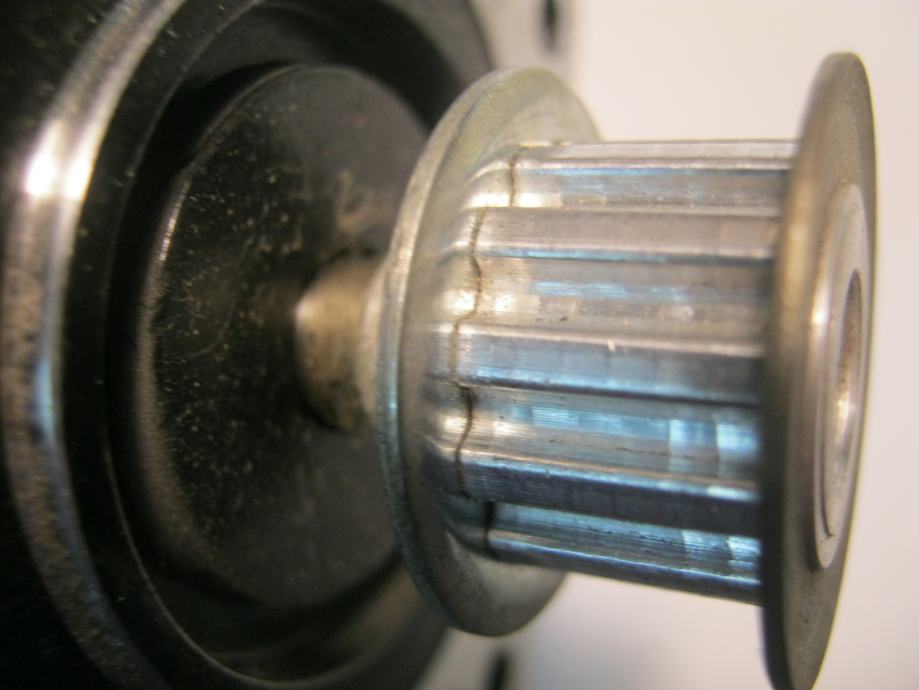

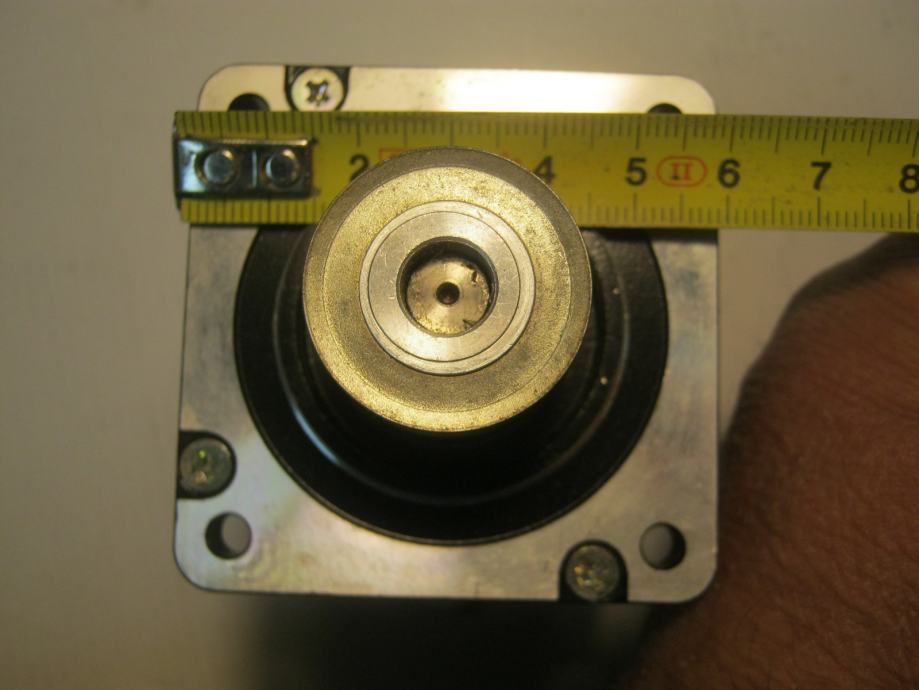

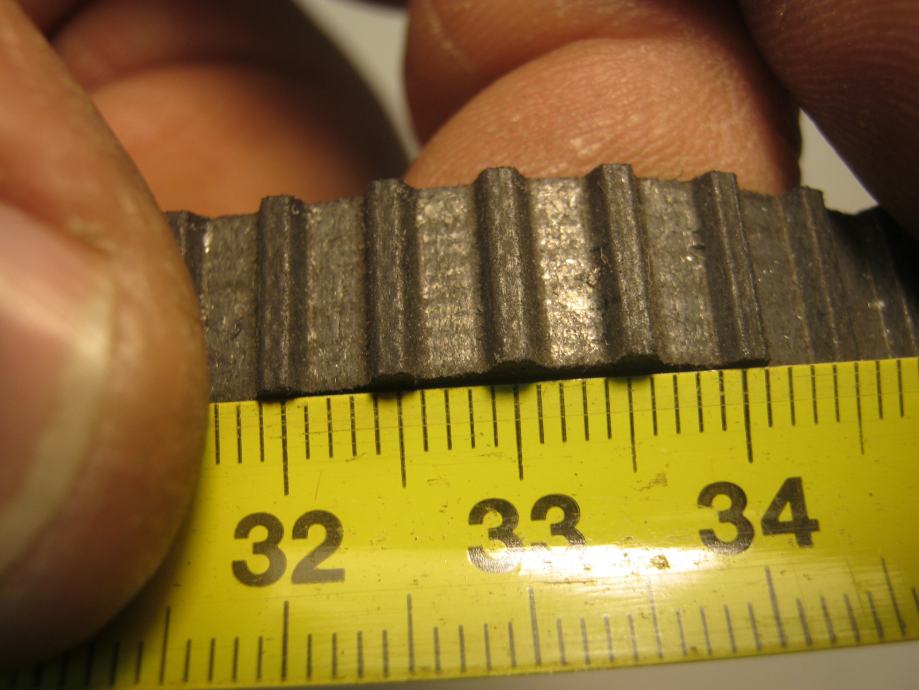

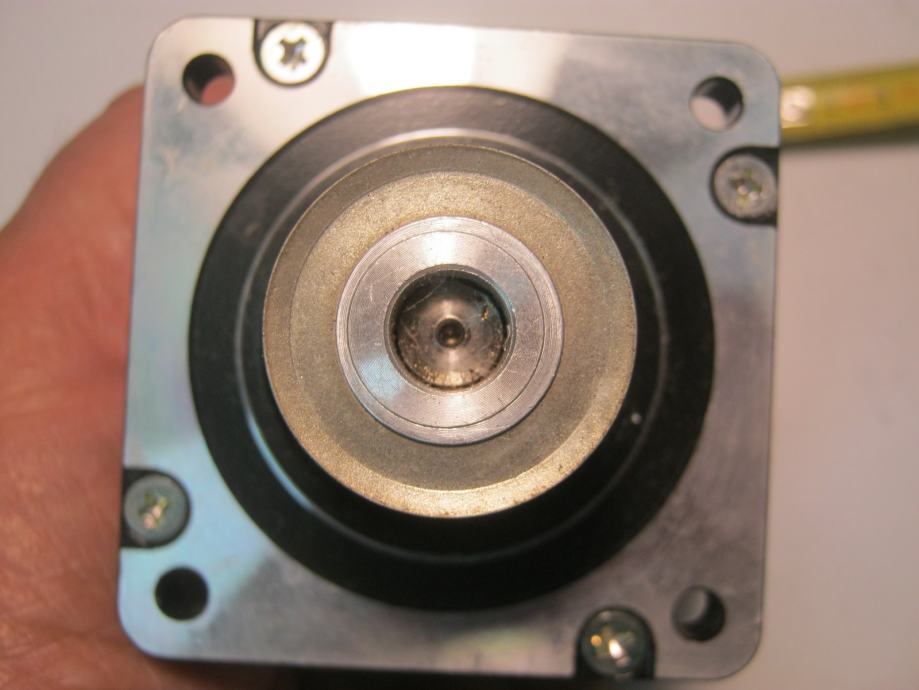

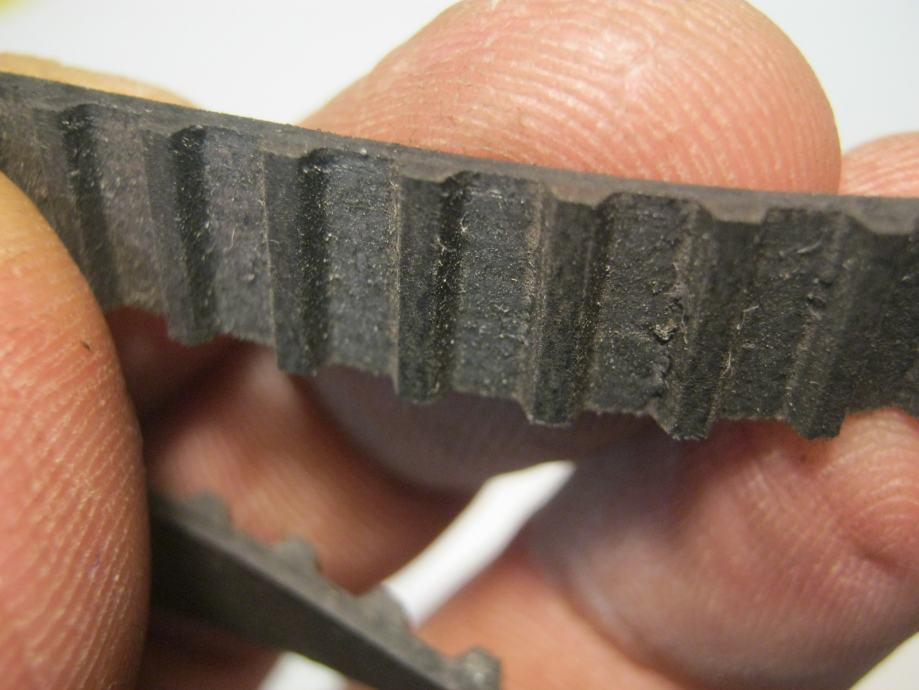

U PRODAJI 4 MOTORA. REMENICA MOTORA SA 12 ZUBACA.

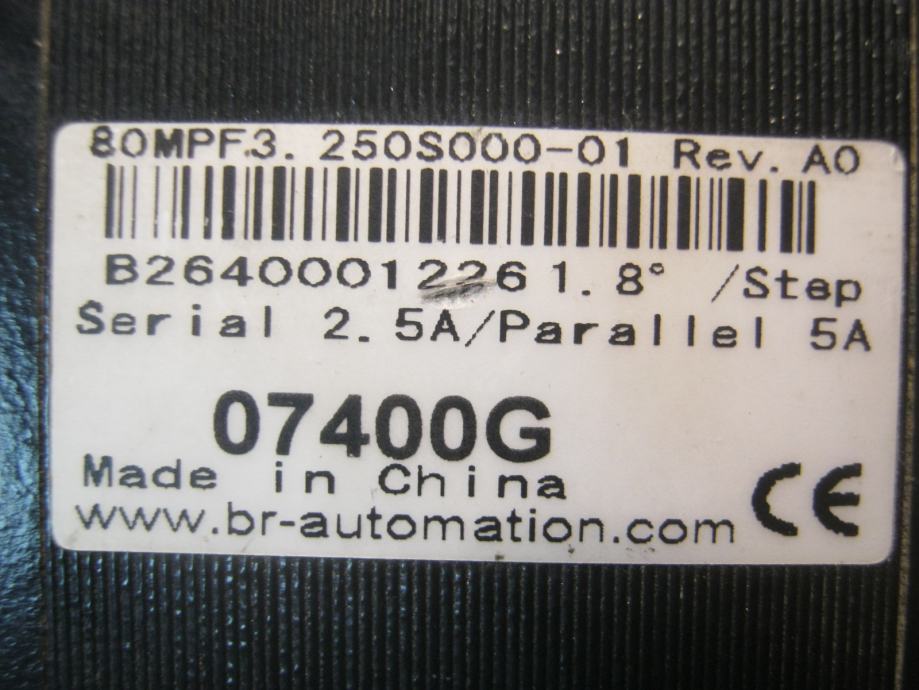

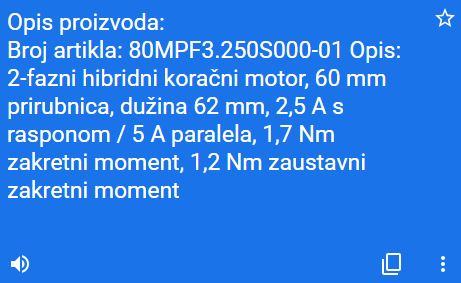

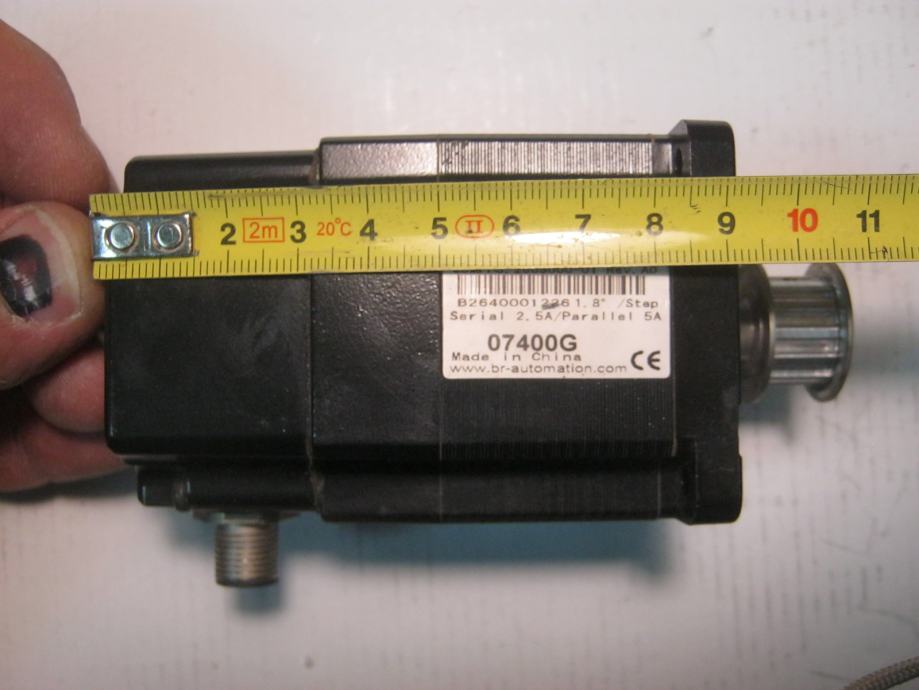

STEP MOTOR: 80MPF3. 250S000-01.
Stepper motors without options
Stepper motors User's Manual V 2.0 27
6.2.2 Technical data

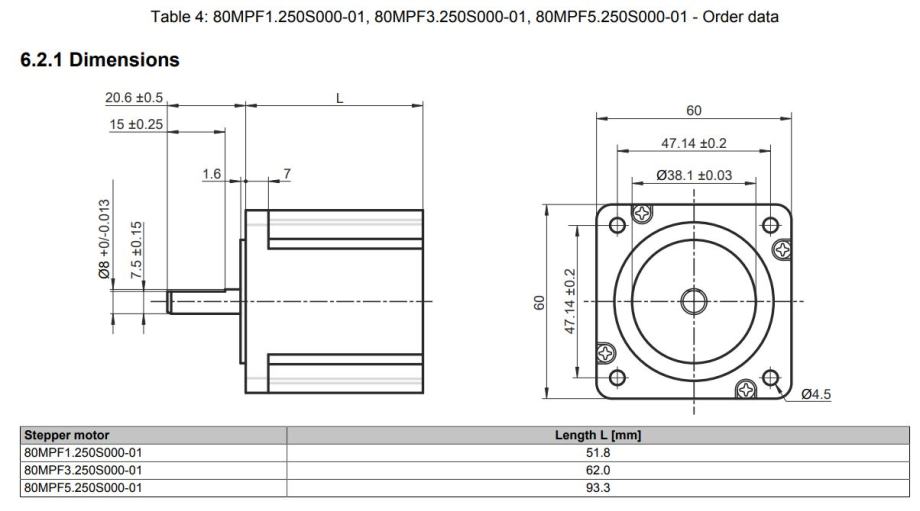

Basic motors 80MPF (flange size 60 mm)
Product ID 80MPF1.250S000-01 80MPF3.250S000-01 80MPF5.250S000-01
Short description
Stepper motor Stepper motor flange size
60 mm, length 51.8 mm
Stepper motor flange size
60 mm, length 62 mm
Stepper motor flange size
60 mm, length 93.3 mm
Specific motor data
Wiring
Series True
Parallel True
Current
Series wiring 2.5 A
Parallel wiring 5 A
Resistance / phase
Series wiring 1.28 Ω 1.52 Ω 2.4 Ω
Parallel wiring 0.32 Ω 0.38 Ω 0.6 Ω
Inductance / phase
Series wiring 3.4 mH 5.6 mH 11.2 mH
Parallel wiring 0.85 mH 1.4 mH 2.8 mH
Stall torque 0.8 Nm 1.2 Nm 2.5 Nm
Holding torque 1) 1.1 Nm 1.7 Nm 3.5 Nm
Detent torque
Ostale podatke pogledati na: https://www.technologybsa.com/XTechBsa/File/Import/Def-Data/AllegatiEstesi/80MPH3.300S000-01.pdf
U PRODAJI 4 MOTORA. REMENICA MOTORA SA 12 ZUBACA.
STEP MOTOR: 80MPF3. 250S000-01.
Stepper motors without options
Stepper motors User's Manual V 2.0 27
6.2.2 Technical data
Basic motors 80MPF (flange size 60 mm)
Product ID 80MPF1.250S000-01 80MPF3.250S000-01 80MPF5.250S000-01
Short description
Stepper motor Stepper motor flange size
60 mm, length 51.8 mm
Stepper motor flange size
60 mm, length 62 mm
Stepper motor flange size
60 mm, length 93.3 mm
Specific motor data
Wiring
Series True
Parallel True
Current
Series wiring 2.5 A
Parallel wiring 5 A
Resistance / phase
Series wiring 1.28 Ω 1.52 Ω 2.4 Ω
Parallel wiring 0.32 Ω 0.38 Ω 0.6 Ω
Inductance / phase
Series wiring 3.4 mH 5.6 mH 11.2 mH
Parallel wiring 0.85 mH 1.4 mH 2.8 mH
Stall torque 0.8 Nm 1.2 Nm 2.5 Nm
Holding torque 1) 1.1 Nm 1.7 Nm 3.5 Nm
Detent torque
Ostale podatke pogledati na: https://www.technologybsa.com/XTechBsa/File/Import/Def-Data/AllegatiEstesi/80MPH3.300S000-01.pdf
