Elektronika / Ožičenje za Gitaru Pre-Wired Harness Stratocaster Strat
- Cijena
- 74,75 €
Šifra oglasa: 47861090
Osnovne informacije
- Lokacija
- Splitsko-dalmatinska, Makarska, Makarska
- Stanje
- novo
Opis oglasa
Ožičenje za Strat gitaru, Q Pickups/Guitar Magnets d.o.o. - kompletna elektronika za Stratocaster.
Compatible with potentiometer knobs that have FINE KNURLING found on guitars made in the USA and Mexico.
Assembled and soldered in our workshop using top components, ready to drop into your guitar!
We professionally hand-soldered these harnesses using the best brand-name components for long life and great sound:

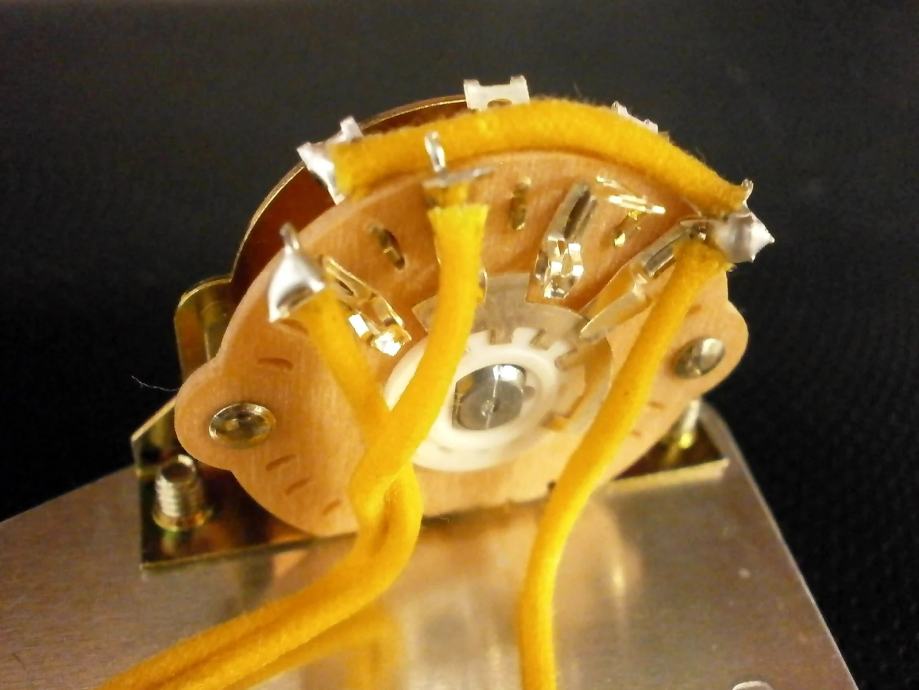

5-way switch USA Oak Grigsby

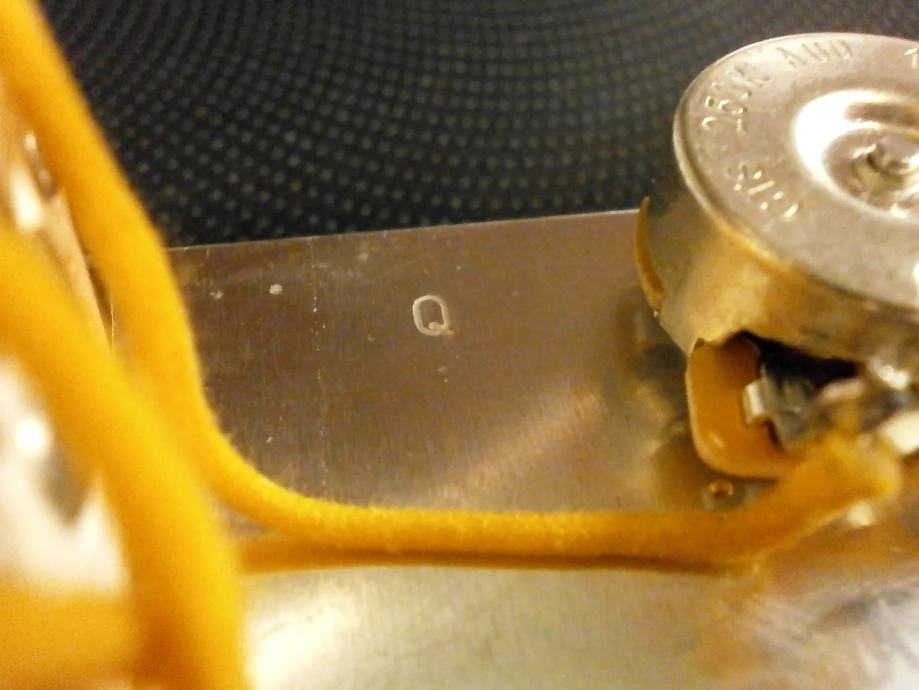

CTS 250kOhm Audio Taper Potentiometers with fine knurling
cloth covered push back Gavitt wire

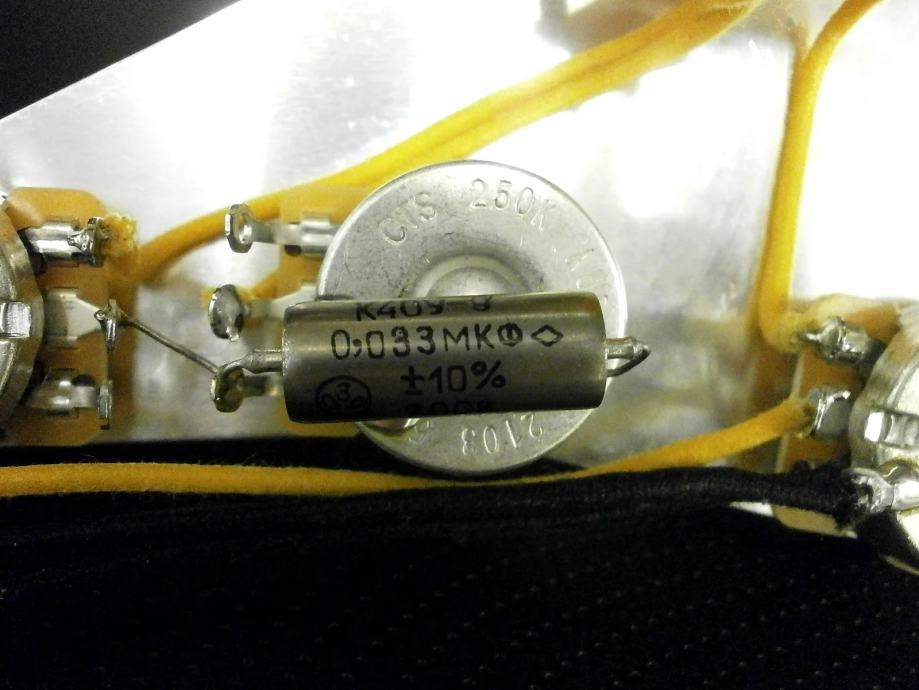

0,033uF Paper In Oil Capacitor 200V 10% K40Y-9

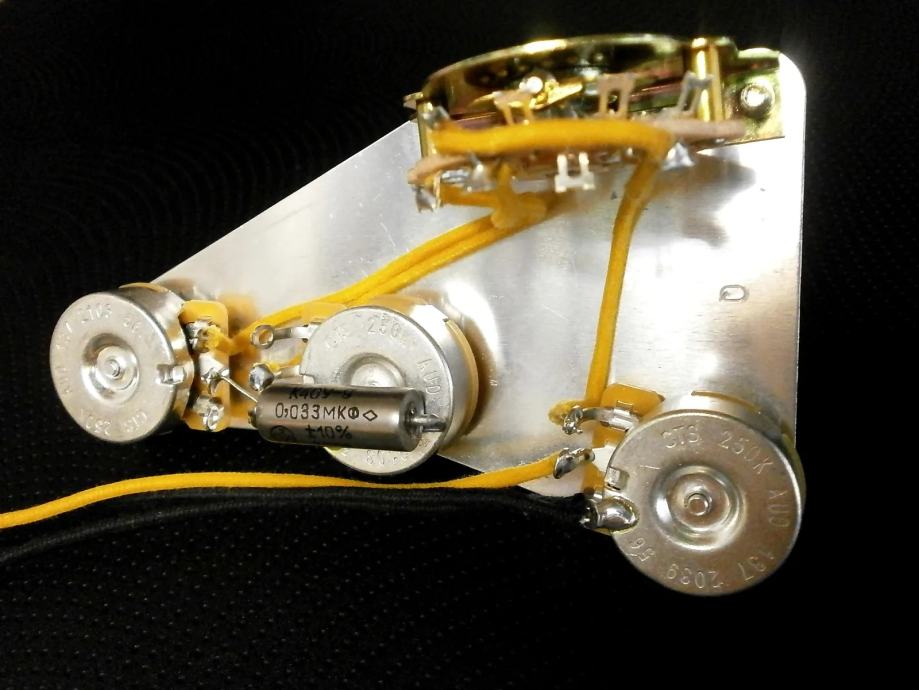

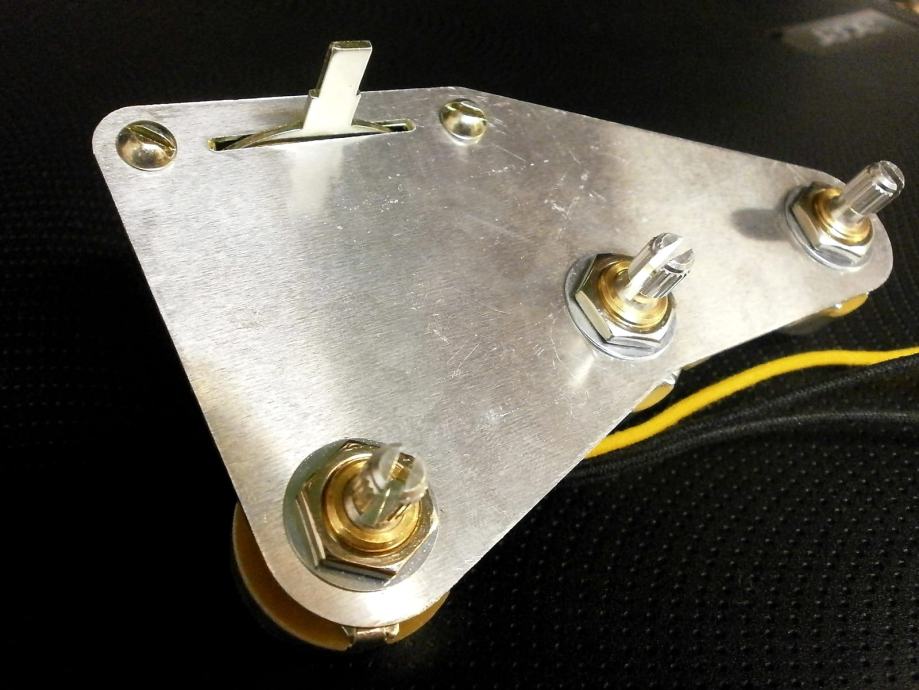

assembled and soldered on a thin aluminum plate that will fit most Strat style guitars, both USA and import
Switchcraft jack
This is a vintage-style pre-1980 wiring harness, with tone controls assigned as follows:
Tone 1: Adjusts the neck pickup.
Tone 2: Adjusts the middle pickup.
Bridge pickup: No tone control, just like 50s, 60s and 70s Stratocasters.
If you’d like a tone control added to the bridge pickup, just send us a message, and we’ll make the adjustment for you!
Switch:
Bridge
Bridge/Middle
Middle
Middle/Neck
Neck
Compatible with potentiometer knobs that have FINE KNURLING found on guitars made in the USA and Mexico.
Assembled and soldered in our workshop using top components, ready to drop into your guitar!
We professionally hand-soldered these harnesses using the best brand-name components for long life and great sound:
5-way switch USA Oak Grigsby
CTS 250kOhm Audio Taper Potentiometers with fine knurling
cloth covered push back Gavitt wire
0,033uF Paper In Oil Capacitor 200V 10% K40Y-9
assembled and soldered on a thin aluminum plate that will fit most Strat style guitars, both USA and import
Switchcraft jack
This is a vintage-style pre-1980 wiring harness, with tone controls assigned as follows:
Tone 1: Adjusts the neck pickup.
Tone 2: Adjusts the middle pickup.
Bridge pickup: No tone control, just like 50s, 60s and 70s Stratocasters.
If you’d like a tone control added to the bridge pickup, just send us a message, and we’ll make the adjustment for you!
Switch:
Bridge
Bridge/Middle
Middle
Middle/Neck
Neck
