HIKVISION SNIMAČ DS-7604NI-K1/4P

-Novo
-Garancija 2 godine
-Mogućnost montaže
-R1

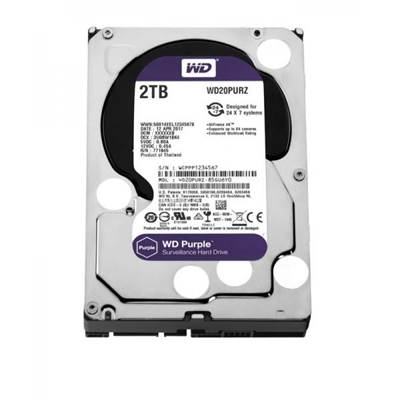

-Mogućnost kupnje - HARD DISK 2000GB WD PURPLE za snimač
-Cijena: 570 kn
Sučelje: SATA3
Kapacitet diska [GB]: 2000
Brzina rotacije [okr./min.]: 5400
Cache [MB]: 64
Veličina: 3.5´´
Za video nadzor snimače
garancija 2 godine
R1

Video/Audio Input

Two-way audio input:
1-ch, RCA (2.0 Vp-p, 1kΩ)
IP video input:
4-ch



Network

Outgoing bandwidth:
80Mbps
Incoming bandwidth:
40Mbps



Video/Audio Output

HDMI Output:
1-ch, resolution: 4K(3840*2160)/60Hz, 4K(3840*2160)/30Hz, 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz
Recording Resolution:
8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Audio Output:
1-ch, RCA (Linear, 1kΩ)
VGA Output:
1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz



Decoding

Live view / Playback:
8MP/6MP/5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Capability:
4-ch@1080P



Hard Disk

SATA:
1 SATA interface for 1 HDD
Capacity:
Up to 6TB capacity for each HDD



External Interface

Network Interface:
1 RJ-45 10 / 100 Mbps selfadaptive
Ethernet interface
USB Interface:
2, USB2.0



POE

Interface:
4 independent 10 /100 Mbps PoE
Ethernet interfaces



General

Power Supply:
48 VDC
Consumption(without hard disk and POE):
≤ 10 W
Working Temperature:
0 ºC ~ +40 ºC (+32 ºF ~ +104 ºF)
Working Humidity:
10 % ~ 90 %
Chassis:
315 mm chassis
Dimensions:
315 × 240 × 48 mm (12.4" × 9.4" × 1.9")
Weight(without HDD):
≤ 1 kg (2.2 lb)
