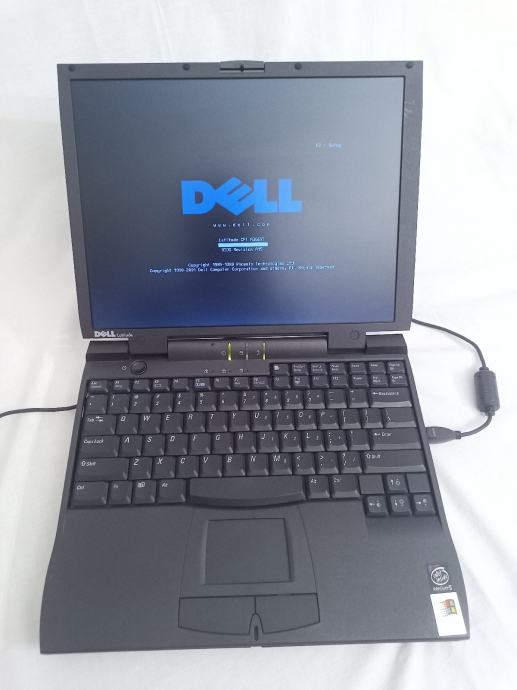

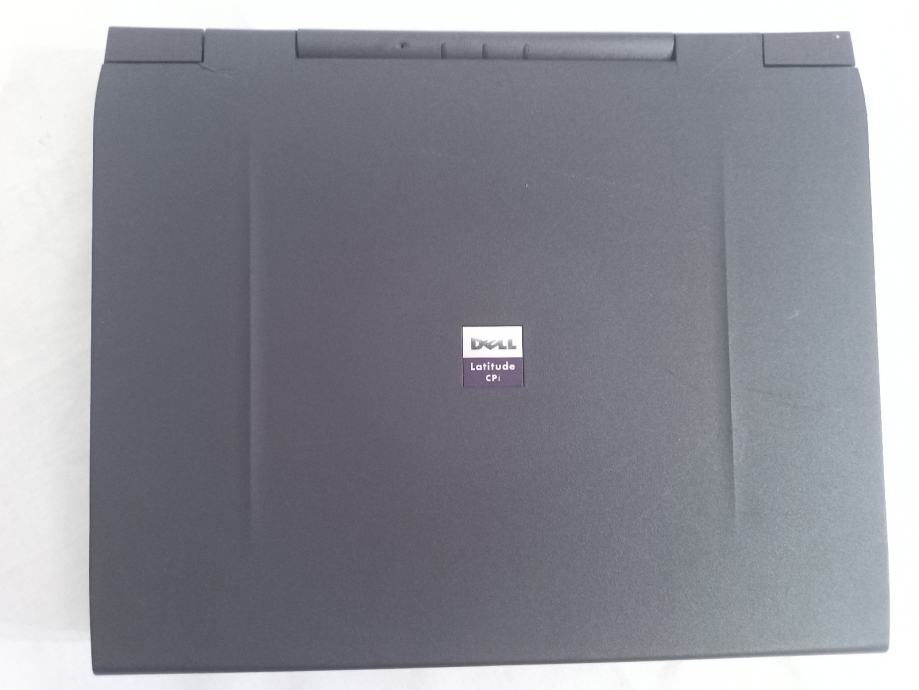

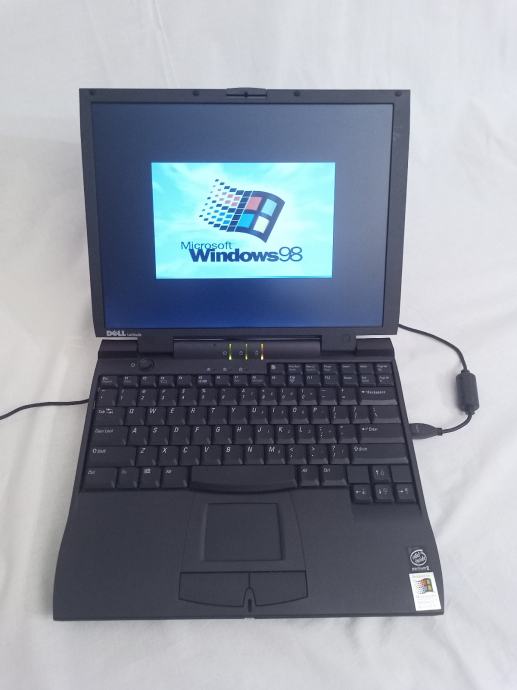

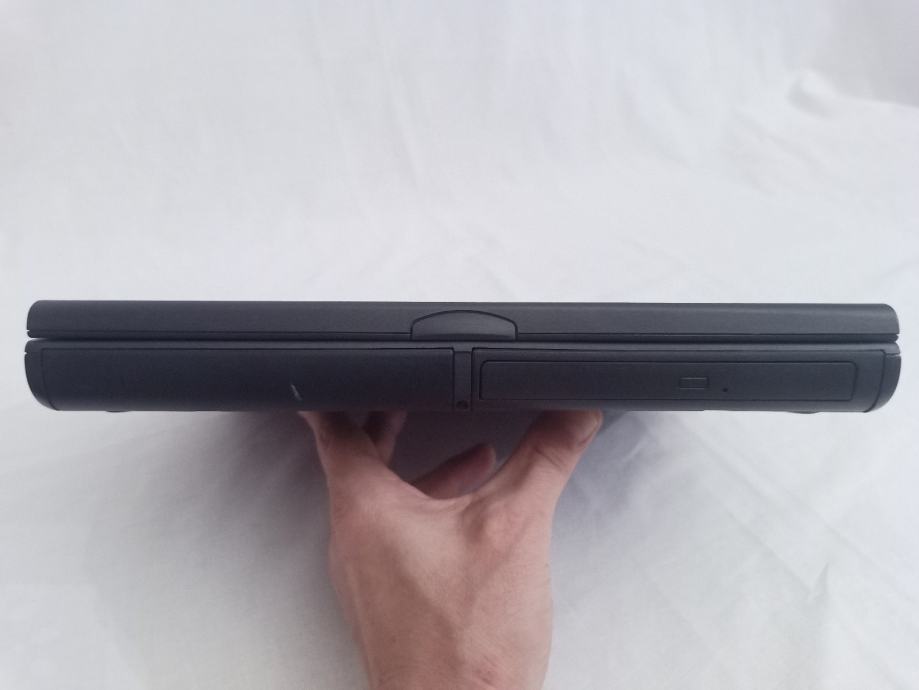

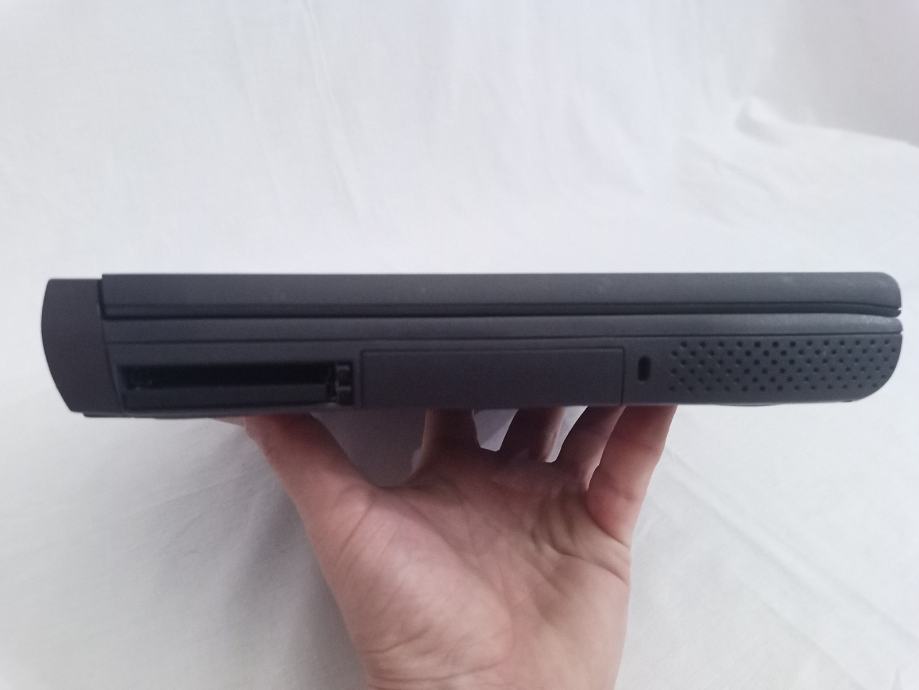

Vintage Dell Latitude CPi A-Series

Vintage laptop u super stanju.

Predmet je dostupan sve dok je oglas aktivan.

Radi Vaseg osjecaja sigurnosti oko kupnje slobodno pogledate moje ostale oglase, kao i vrijeme trajanja moga clanstva. Lp.

Specifikacije su skinute s interneta, moguca su odstupanja.

Technical Specifications: Dell™ Latitude™ CPi A-Series System User's Guide

Chip Set and BusSystem chip setIntel® Mobile 440BX PCIsetMicroprocessor data bus width64 bitsDRAM bus width64 bitsAddress bus width32 bitsFlash EPROM4 MbitsAGP bus66 MHzPCI bus33 MHzPC CardsCardBus controllerTexas Instruments PCI 1225 CardBus controllerPC Card connectorstwo (supports type I and type II cards in any combination; type III cards can be used only in the lower connector; the upper connector supports zoomed video cards on systems using the Microsoft® Windows® 95 or Windows 98 operating system)Cards supported3.3-V and 5-VPC Card connector size68 pinsData width (maximum):

PCMCIA

16 bits

CardBus

32 bitsMemoryArchitectureSDRAM memoryMemory module socketstwoMemory module capacities and type32-, 64-, and 128-MB 3.3-V SDRAM1Standard RAMone 64-MB memory moduleMaximum RAM256 MBMemory access time:

tRAC

60 ns

tCAC

15 nsBIOS addressF000:0000-F000:FFFFConnectorsSerial (DTE)one 16,550-compatible, 16-byte buffer connectorParallelone unidirectional, bidirectional, or ECP connectorVideoone connectorPS/2one mini-DIN connectorInfraredone port compatible with both IrDA Standard 1.1
(Fast IR) and IrDA Standard 1.0 (Slow IR)Audioone microphone-in jack;
one line-in/audio-in jack;

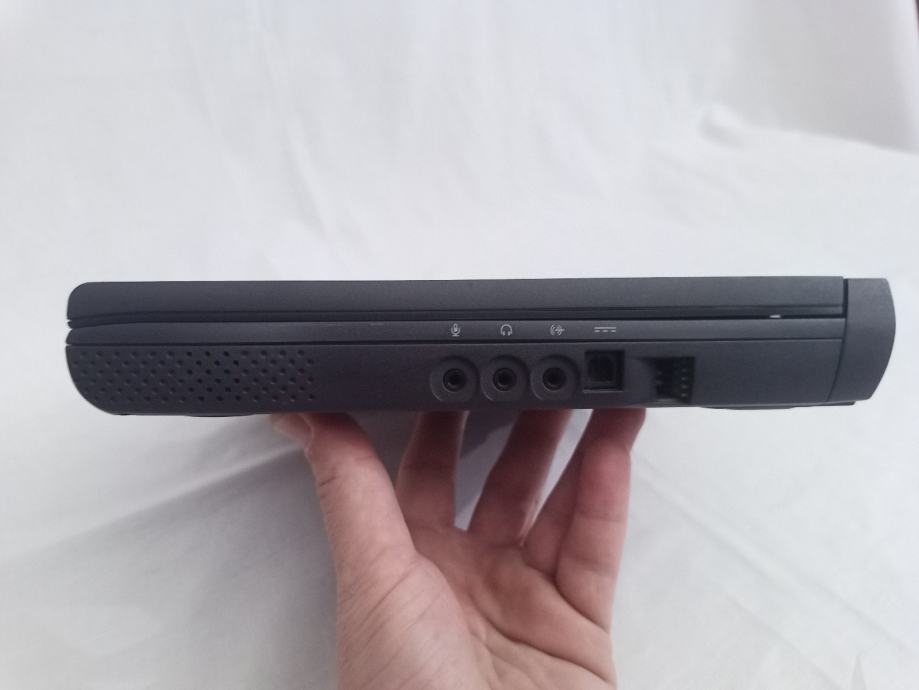

one headphones/speakers jackUSBone USB-compliant connectorDockingone connector for the C/Port Advanced Port
Replicator or C/Dock Expansion StationAudioAudio typeSound Blaster emulationAudio controllerNeoMagic 2200 AC97 CodecStereo conversion16 bit (analog-to-digital and digital-to-analog)Interfaces:

Internal

PCI bus / AC97

External

stereo line-in minijack;
microphone-in minijack;
headphones/speakers-out minijackSpeakerstwo 8-ohm speakersInternal speaker amplifier1 W into 8 ohms stereoControlsvolume can be controlled through key combinations, software application menus, or the Speaker window in the Dell Control Center (Windows 95 only)VideoVideo type256-bit hardware-acceleratedData busAGPVideo controllerNeoMagic 2200Video memory2.5 MB12.1-Inch DisplayTypeactive-matrix color (TFT LVDS)Dimensions (active area):

Height

184.5 mm (7.26 inches)

Width

246.0 mm (9.68 inches)

Diagonal

307.5 mm (12.1 inches)

Maximum resolution/colors

800 x 600 pixels; 16 million colors

Response time (typical)

50 ms

Operating angle

0° (closed) to 180°

Dot pitch

0.31 mmPower consumption:

Panel (typical)

0.6 W

Backlight

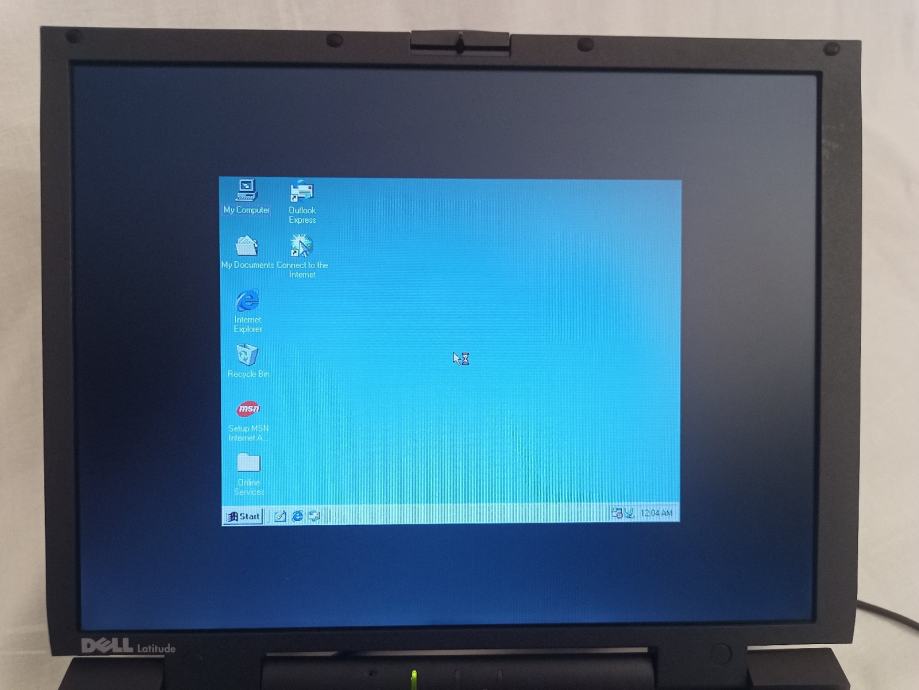

2.4 WControlsbrightness can be controlled through a key combination, the Display window in the Dell Control Center (Windows 95 only), or the System Setup program13.3-Inch DisplayTypeactive-matrix color (TFT)Dimensions (active area):

Height

202.8 mm (7.98 inches)

Width

270.3 mm (10.64 inches)

Diagonal

337.8 mm (13.3 inches)

Maximum resolution/colors

1024 x 768 pixels; 65,536 colors

Response time (typical)

50 ms

Operating angle

0° (closed) to 180°

Dot pitch

0.26 mmPower consumption:

Panel (typical)

1.7 W

Backlight

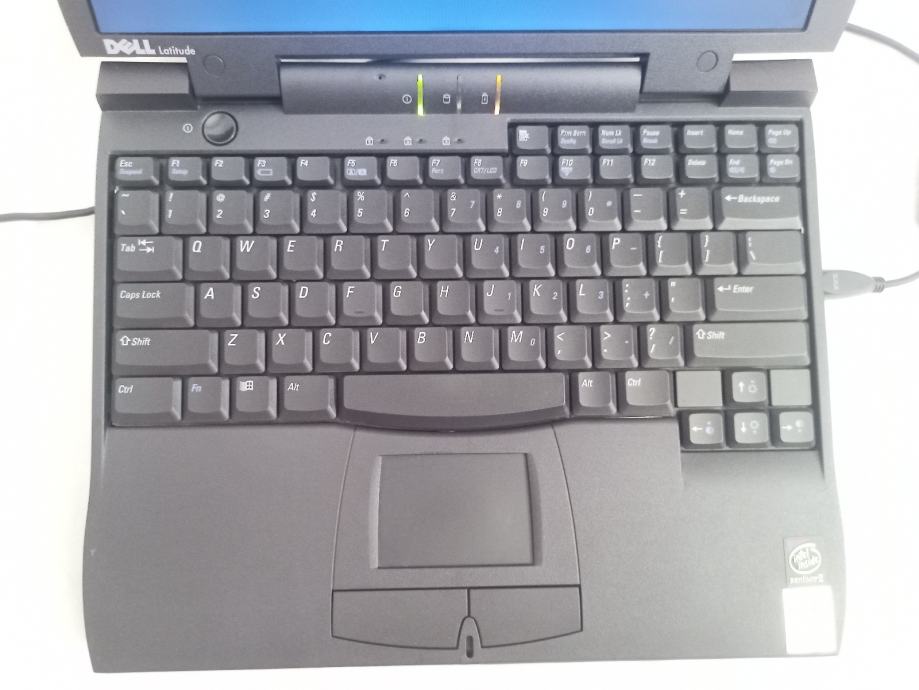

2.6 WControlsbrightness can be controlled through a key combination, the Display window in the Dell Control Center (Windows 95 only), or the System Setup programKeyboardNumber of keys87 (U.S., Canada, Korea, Thailand, and locations that use traditional Chinese);
88 (Europe);
90 (Japan)Key travel3.0 mm + 0.5 mm/-0.2 mm
(0.12 inch + 0.02 inch/-0.0008 inch)Key spacing19.05 mm ± 0.3 mm (0.75 inch ± 0.012 inch)BatteryTypelithium ionDimensions:

Height

21.5 mm (0.83 inch)

Depth

88.5 mm (3.48 inches)

Width

139.0 mm (5.47 inches)

Weight

0.39 kg (0.87 lb)Voltage16.8 VDCCapacity44 WHCharge time (approximate):2

Computer on

2.5 hours

Computer off

1 hourLife span (approximate)2500 discharge/charge cyclesTemperature range:

Charge

0° to 40°C (32° to 104°F)

Storage

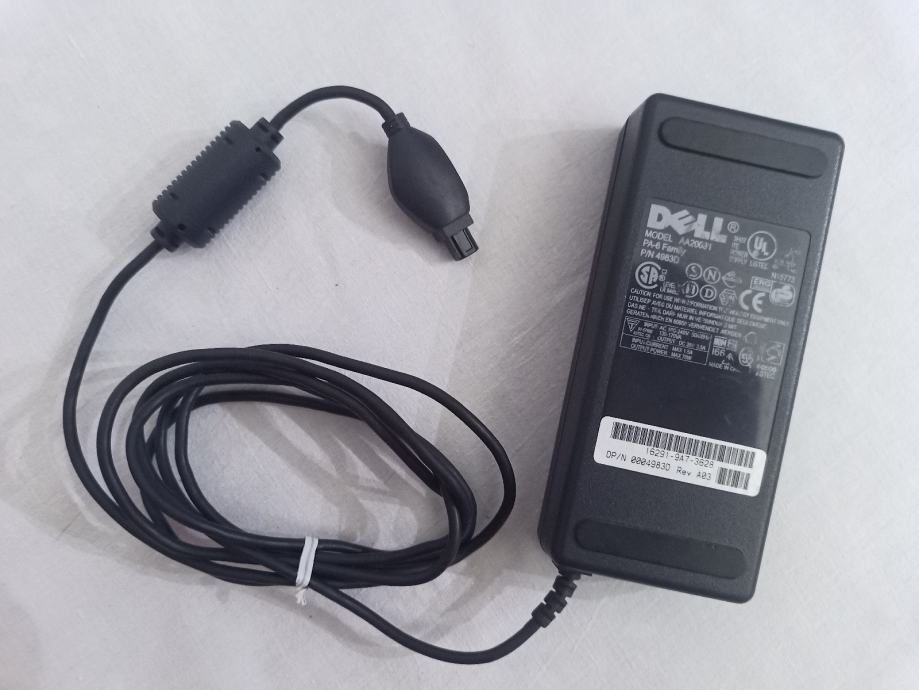

-20° to 60°C (-4° to 140°F)AC AdapterInput voltage90 to 135 VAC and 164 to 264 VACInput current (maximum)3.5 AInput frequency47 to 63 HzOutput current4.5 A (maximum at 4-second pulse);
3.51 A (continuous)Rated output voltage20.0 VDCHeight27.94 mm (1.1 inches)Width58.42 mm (2.3 inches)Depth133.35 mm (5.25 inches)Weight (with cables)0.4 kg (0.9 lb)Temperature range:

Operating

0° to 40°C (32° to 104°F)

Storage

-20° to 60°C (-4° to 140°F)PhysicalHeight38.6 mm (1.52 inches)Width306.0 mm (12.05 inches)Depth241.0 mm (9.49 inches)Weight32.63 kg (5.8 lb)Environmental (Computer)Temperature:

Operating

0° to 40°C (32° to 104°F)

Storage

-20° to 60°C (-4° to 140°F)Relative humidity (maximum):

Operating

10% to 90% (noncondensing)

Storage

5% to 95% (noncondensing)Maximum vibration:

Operating

0.51 GRMS using a random-vibration spectrum that simulates truck shipment

Storage

1.3 GRMS using a random-vibration spectrum that simulates air/truck shipmentMaximum shock:4

Operating

152.4 cm/sec (60.0 inches/sec)
(less than or equal to a pulse width of 2 ms)

Storage

203.2 cm/sec (80 inches/sec)
(less than or equal to a pulse width of 2 ms)Altitude (maximum):

Operating

-18 to 3048 m (-59 to 10,000 ft)

Storage

-18 to 10,600 m (-59 to 35,000 ft)Touch PadInterfacePS/2-compatibleX/Y position resolution (graphics table mode)200 points/mm (500 points/inch)Size:

Thickness

2.50 mm (0.10 inch) at highest component

Width (sensor-active area)

61.8 mm (2.43 inch) at bottom
58.6 mm (2.31 inch) at top

Height

48.8-mm (1.92-inch) rectangle

Weight

8 g (0.28 oz) 0.5 g (0.02 oz)Power:

Supply voltage

5 V ± 10%

Supply current

2.75 mA (maximum operating)ESD12 kV applied to front surfaceNOTES:1 The Dell Latitude CPi A-Series does not support memory modules from older models of Dell portable computers, such as the Latitude XP, XPi CD, or LM.2 Battery performance features such as charge time and life span can vary according to the conditions under which the computer and battery are used.3 Weight shown is with a hard-disk drive, a battery in the battery bay, a diskette drive in the modular bay, and one memory module. Your computer might weigh more or less, depending on its configuration. The maximum weight of the Dell Latitude CPi  A366XT is 2.81 kg (6.2 lb), which includes a hard-disk drive, two batteries, and two memory modules. The minimum weight of a Latitude CPi A300ST is 2.4 kg (5.3 lb), which includes a hard-disk drive, a battery in the battery bay, the travel module in the modular bay, and one memory module.4 Measured with the hard-disk drive in head-parked position.
