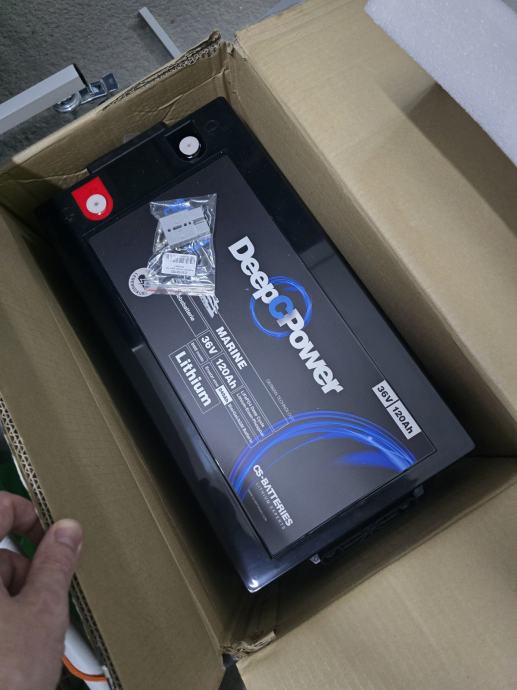

LiFePO4 MARINE BATERIJA 36 V / 120 Ah + PUNJAČ — NOVO, NEKORIŠTENO

Stanje: potpuno nova, nikad ugrađena ni korištena

Punjač: uključen originalni 36 (48) V punjač, također nekorišten

Razlog prodaje: baterija je kupljena kao primarna pogonska baterija za Minn Kota elektromotor, ali sam u međuvremenu prešao na brod koji već ima ugrađen kompletan Minn Kota sustav; od tada je baterija sigurno čuvana u suhoj garaži

Težina kompleta: oko 45 kg (znatno lakše od AGM baterija spojenih u seriju)

Cijena ovakvog novog kompleta je oko 3000+ eura.

Specifikacije:
Technical data:
Model:CSX36120-BMS200M
Type: Drivebattery Nominal
capacity:120Ah
Energy content:4608Wh
Cell technology:Lithium iron nanophosphate LiFePO4
Cell type:Big-Capacity-PrismaticCells (BCC)
Replaces one:36V / 120Ah lead-gel battery
Application: Electric drives, solar
Application Parallel connection:Yes, any number of the same type possible.
Use in series connection: No, not possible
Operating voltage: 27.6-43.2V Nominal
voltage: 38.4V Service
life: = 10 years
cycle duration at 50% DoD: = 5000
cycle duration at 80% DoD: = 3500
cycle duration at 90% DoD: = 3000
charging programs: CCCV / IU / IUoU end-of-
charge voltage: 43.2V
Maximum charging current: 200A / 1C
standard charging current: 100A / 0.5C
charging current for max.life
time : 70A / 0.33C continuous discharge current: max.200A
peak discharge current (3-5 sec.):. max 400A
Maximum output: to 7680W
discharge voltage: 27.6V
temperature range (discharge): -20 ° C to + 65 ° C
temperature range (charging): 0 ° C to + 50 ° C
temperature range (storage): -20 ° C to + 65 ° C
Battery Management System (BMS): Yes, built-in
Balancer: Yes, active balancer
Self-discharge: 1-2% / month
Installation position: any
Connection: M8 screw or cone
NEW: Protection class: IP65 Water & dust-proof
Weight approx: 39.0kg
dimensions (WxDxH): 520 x 268 x 220 mm
NEW:Manufacturer's guarantee : 5 years

Napomena: isključivo osobno preuzimanje
