Ventilator Vortice Lineo 100 V0
- Cijena
- 260 €
Šifra oglasa: 33066530
Osnovne informacije
- Lokacija
- Splitsko-dalmatinska, Split, Spinut
- Stanje
- novo
Opis oglasa

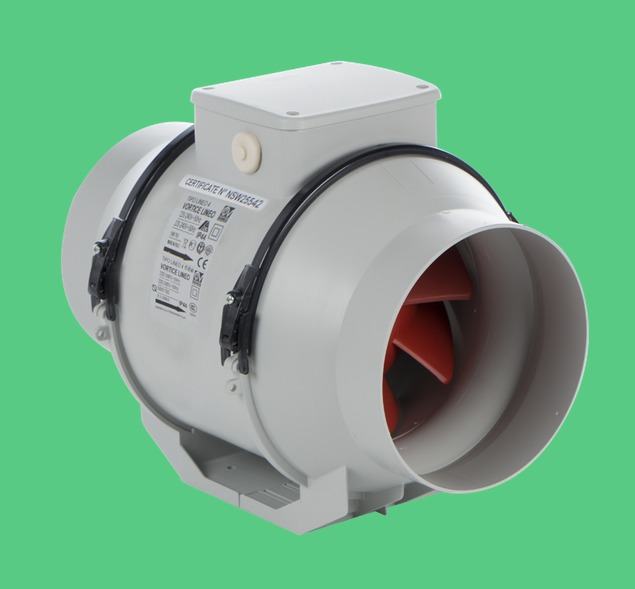

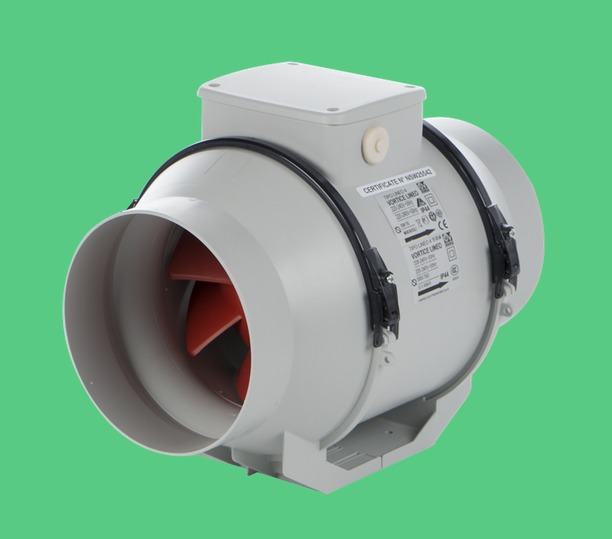

Ventilator Vortice Lineo 100 V0
• Material: self-extinguishing plastic resin (self-extinguishing capability V0)
• Nominal diameter 100 mm.

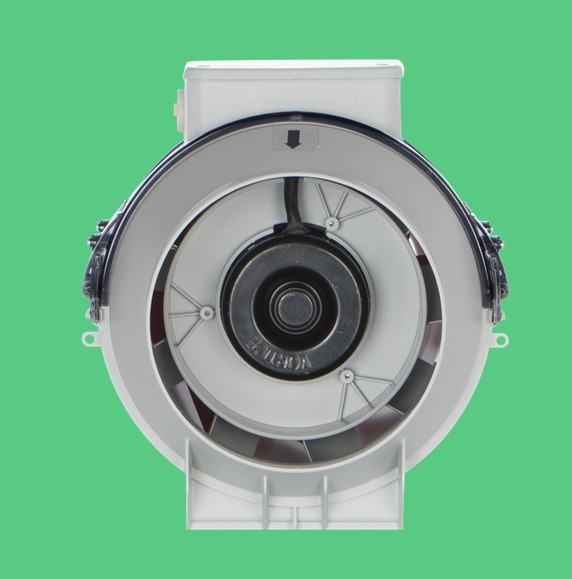

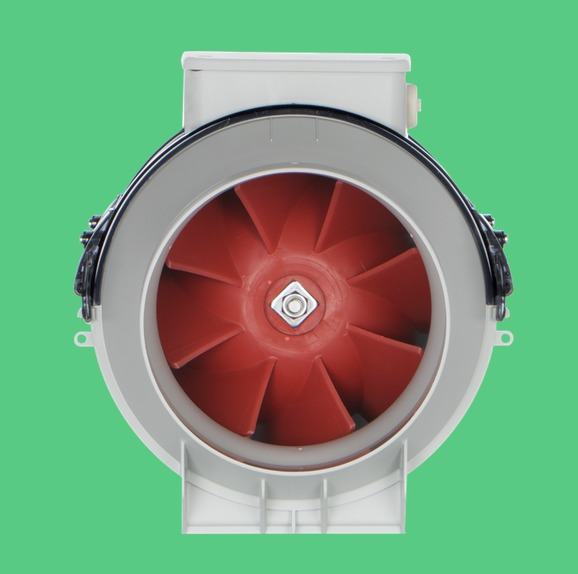

• 2 speed AC motor with thermal overload cutout and shaft turning in ball bearings, coupled to mixed flow axial-centrifugal impeller.
• Minimum air flow 180 m3/h
Maximum air flow: 255 m3/h
• IMQ SAFETY and IMQ PERFORMANCE certifications
• Vortice speed controllers.
• Absorbed power 1st speed (W)20
• Absorbed Power max (W)23
• Frequency (Hz)50
• Insulation ClassII°
• IP44
• Max ambient temperature for continuous operation (°C)60
• Max. absorbed Current at max. speed (A)0,11
• Max. absorbed Current at min. speed (A)0,09
• Max. absorbed power at max speed (W)23
• Nominal Diameter (mm)100
• Voltage (V)220-240
• Weight (Kg)1,8
• Delivery 1st speed (l/s)50
• Delivery 1st speed (m³/h)180
• Max delivery at max speed (l/s)70,8
• Max delivery at max speed (m³/h)255
• Pressure - 1st speed (mmH20)13
• Pressure - 1st speed (Pa)127,5
• Pressure max - max speed (mmH20)16,5
• Pressure max - max speed (Pa)161,9
• RPM max2030
• RPM min1520
• Sound pressure level Lp [dB (A)] 3m - max speed39,4
• Sound pressure level Lp [dB (A)] 3m - min speed30,7
Info 091 785 68 24
