Brodske klime - MBC Marine air units AKCIJA - ISPORUKA ODMAH

LUCKY WAVE specializes in nautical equipment, yacht and mega yacht service. Sales and representation of nautical equipment, dry marina services and winter maintenance, year-round maintenance with a contract. Complete care of your ships. Sales of all marine devices (gangways, cranes, air conditioners, refrigerators, generators, chargers, winches, bow thrusters…) with technical advice, secured installation for all equipment purchased from us. As representatives of many companies, we are customer-oriented in providing top quality and service.
We offer a complete program for boats and yachts.
Contact us with confidence.

https://www.lucky-wave.eu/shop
https://lucky-wave.eu/zastupstva/

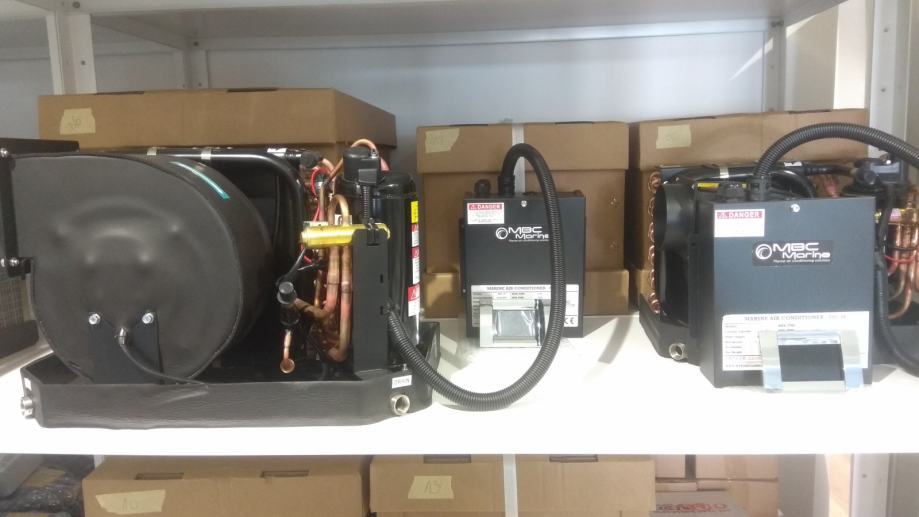

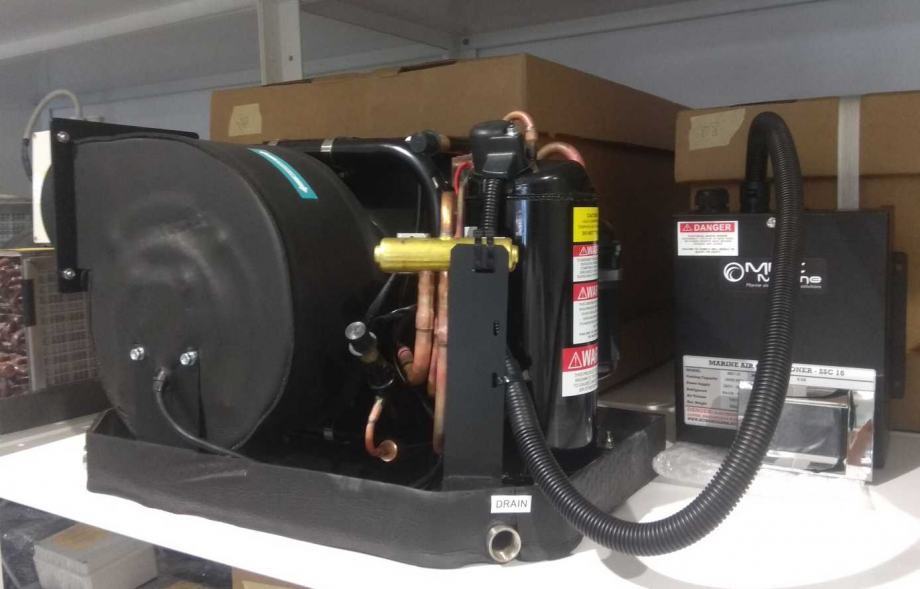

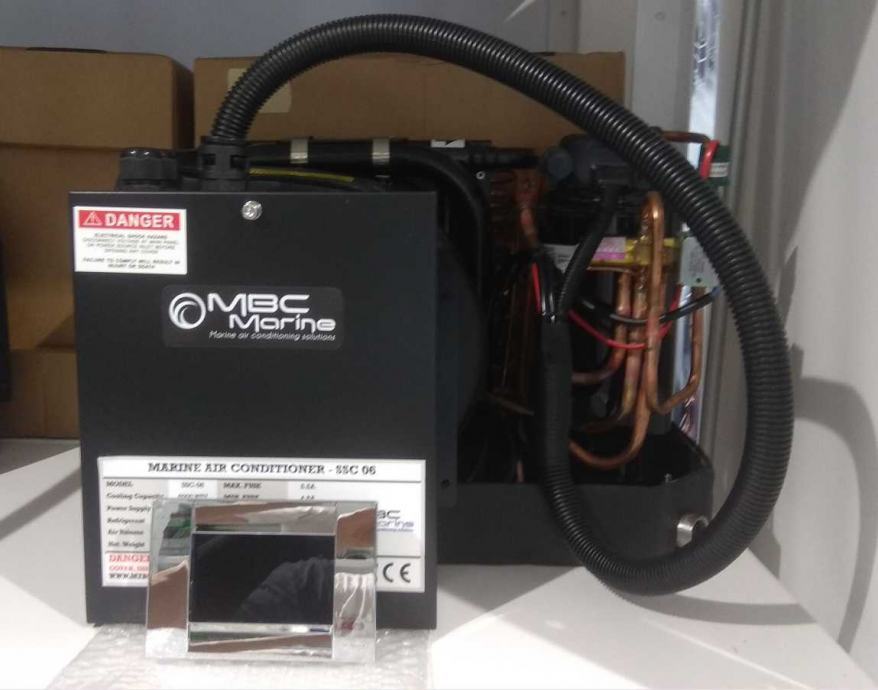

MBC SSC equipments are self contained direct expansion systems specifically developed for boats ideal for simultaneous cooling and heating of one or more cabins. MBC Marine – SSC equipments are carefully designed to be lightweight and compact, for a quick and easy installation in any suitable room of every boat. The base plates of these units are entirely made of AISI 316 stainless steel, which assures a long service life and allows the collection of a large amounts of condensate water.

The SSC range is provided with an elegant LCD backlight digital control panel as a part of the standard installation kit. SSC systems are all available in heat pump version and in 5 sizes ranging from 6.000 to 16.000 BTU/h.


Unit Parameters SSC 06 SSC 08 SSC 10 SSC 13 SSC 16 SSC 24
Cooling capacity Btu/h 6000 8000 10000 13000 16000 24000
Heating capacity Btu/h 6500 8700 11000 13800 17600 26400
Power source 230V/50Hz
Input power (kW) Cooling 0.51 0.74 0.78 1.01 1.17 1.75
Heating 0.66 0.86 1.05 1.28 1.56 2.2
Amp Draw (A) Cooling 4.5 3.2 3.5 4.2 5.1 7.9
Heating 5.8 3.8 4 5.2 6.5 9.9
Air flow (m3/h High 380 420 500 580 730 1200
Middle 305 350 405 495 610 1080
Low 210 280 350 410 520 900
Refrigerant R410A
Dimension Height 280 298 298 298 338 430
Width 400 480 480 480 500 690
Depth 238 285 285 285 315 448
Minimum air Duct Size (mm) 100 100 125 125 150 200
Drain Connection Size DN20 DN20 DN20 DN20 DN20 DN20
Seawater pipe 5/8” 5/8” 5/8” 5/8” 5/8” 5/8”
Net Weight (kg) 17.5 23 25 26 32 58

SSC 06 .........1806 €
SSC 08 .........2007 €
SSC 10 .........2116 €
SSC 13 .........2226 €
SSC 16 .........2377€

Price not include taxes
