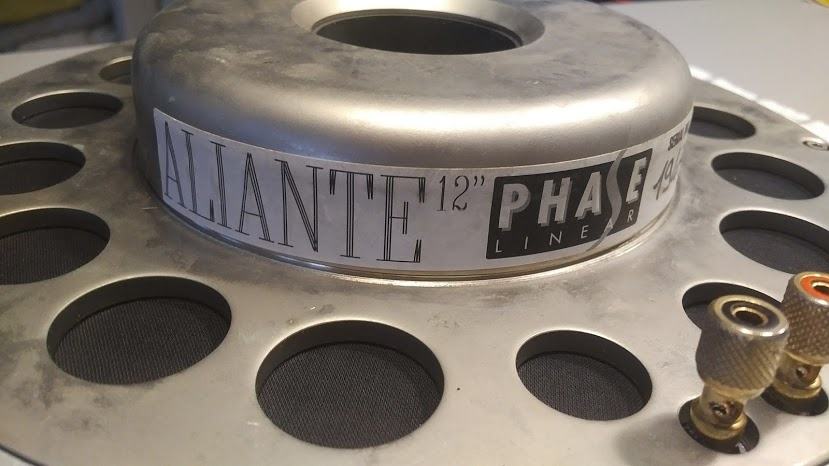

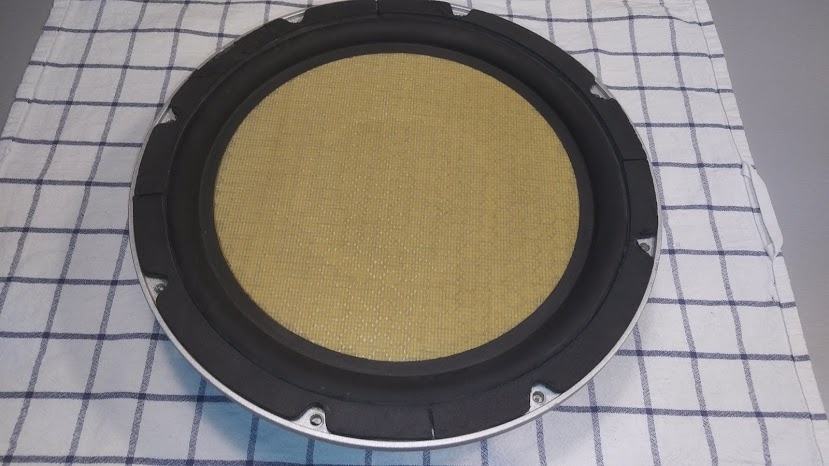

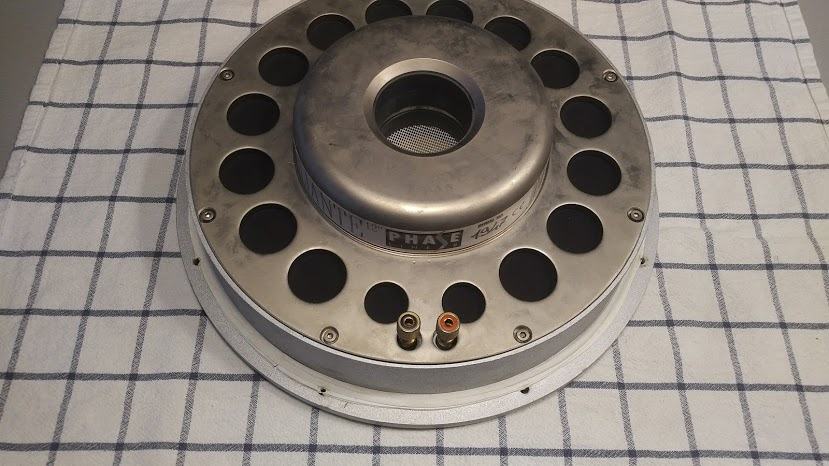

Subwoofer Phase Linear Aliante 12"
- Cijena
- 172,54 €
Šifra oglasa: 22856006
Osnovne informacije
- Lokacija
- Grad Zagreb
- Stanje
- rabljeno
Opis oglasa
Nekoristi se već 2 godine pa ide u prodaju. Stanje 10/10. Pogledajte i druge oglase.
Driver Model Name: Aliante 12
Flat diaphragm, slim-line, bass reflex audiophile subwoofer
Piston material: Aluminum honeycomb
Surround type & material: Rubber roll surround
Basket material: Stainless steel & aluminum
Terminals: Gold plated binding posts (screw clamp/4mm banana plugs)
--Mechanical Parameters--
Fs (Hz): 19 Qms: 2.081 Vas (liters): 165.2 Cms (mm/N): 0.400
Mms (g): 175.0 Linear Excursion, Xmax (mm): ± 3.5
Piston Diameter (mm): 262 Sd (cm2): 543
-Electrical Parameters-
Qes: 0.264 Re (ohms): 3.1 Le (mH): 1.80 Z (ohms): 4
BL (Tm): 17.07 Peak Power, Pe (W): 900 RMS Power, Pn (W): 400
-Electromechanical Parameters-
Qts: 0.235
2.83V/1m Sensitivity (dB): 91 1W/1m Sensitivity (dB): 87
Nominal Dimensions: 318 x 85mm (overall dia. x depth)
Approximate speaker displacement (liters): 3.4
Driver Model Name: Aliante 12
Flat diaphragm, slim-line, bass reflex audiophile subwoofer
Piston material: Aluminum honeycomb
Surround type & material: Rubber roll surround
Basket material: Stainless steel & aluminum
Terminals: Gold plated binding posts (screw clamp/4mm banana plugs)
--Mechanical Parameters--
Fs (Hz): 19 Qms: 2.081 Vas (liters): 165.2 Cms (mm/N): 0.400
Mms (g): 175.0 Linear Excursion, Xmax (mm): ± 3.5
Piston Diameter (mm): 262 Sd (cm2): 543
-Electrical Parameters-
Qes: 0.264 Re (ohms): 3.1 Le (mH): 1.80 Z (ohms): 4
BL (Tm): 17.07 Peak Power, Pe (W): 900 RMS Power, Pn (W): 400
-Electromechanical Parameters-
Qts: 0.235
2.83V/1m Sensitivity (dB): 91 1W/1m Sensitivity (dB): 87
Nominal Dimensions: 318 x 85mm (overall dia. x depth)
Approximate speaker displacement (liters): 3.4
