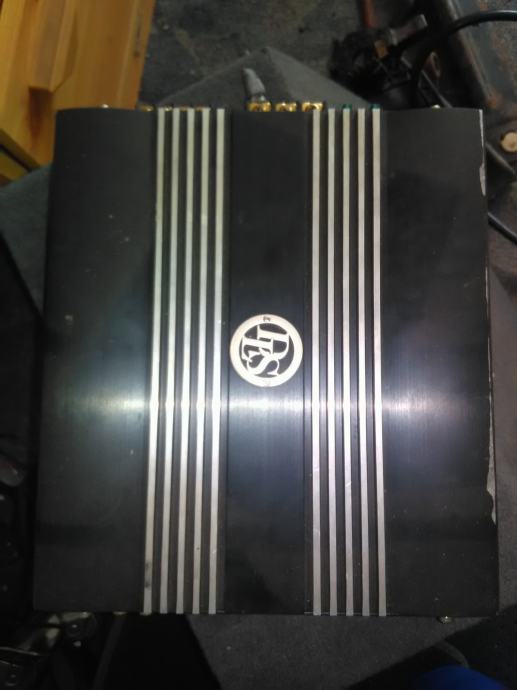

autopojačalo dls ca23
- Cijena
- 59,73 €
Šifra oglasa: 22696093
Osnovne informacije
- Lokacija
- Sisačko-moslavačka
- Stanje
- rabljeno
Opis oglasa
meni je sluzilo za sub hertz 400rms
CA 23 is a powerful amplifier with a power output of 2 x 135 Watts. With a mono bridge-connection, it puts out all of 400 Watts, ideal for subwoofer use.
- Built-in low pass filter for subwoofers, variable between 50 and 500 Hz.
- High pass / subsonic filter 15 - 150 Hz
- Bass boost control from 25 Hz - 80 Hz, 0-18 dB.
- Built-in protection circuits shut down the amplifier in the event of overloads.
- High level input with automatic start.
- RMS output power @ 13,8 V, 20Hz - 20 kHz
Specifications
Number of channels 2
Amplifier class AB
Output power in 2 ohm 2 x 200 W
Output power in 4 ohm 2 x 135 W
Mono bridge mode 4 ohm 400 W RMS
Damping factor >100
S/N ratio, A-weighted >100 dB
Frequency range 10 Hz - 35 kHz
Input sensitivity 0,25 - 5 V
Input impedance > 10 kohm
Input impedance, high level 100 ohm
High pass filter 15 - 150 Hz
Low pass filter 50 - 500 Hz
Low level output Yes
Grand bass filter 25 - 80 Hz, 0-18 dB
Remote bass level control No
Remote phase shift control No
High level input with auto start Yes
Integrated fan No
Power consumption (idle) 0,7 A
Power consumption (max) 60 A
Rec. power cable Minimum 5AWG / 16 mm2
Fuses 2 x 30 A
Dimension (W x D x H) 250 x 295 x 67 mm / 9,84 x 11,6 x 2,63"
Weight 3,6 kg ( 7,9 lb)
CA 23 is a powerful amplifier with a power output of 2 x 135 Watts. With a mono bridge-connection, it puts out all of 400 Watts, ideal for subwoofer use.
- Built-in low pass filter for subwoofers, variable between 50 and 500 Hz.
- High pass / subsonic filter 15 - 150 Hz
- Bass boost control from 25 Hz - 80 Hz, 0-18 dB.
- Built-in protection circuits shut down the amplifier in the event of overloads.
- High level input with automatic start.
- RMS output power @ 13,8 V, 20Hz - 20 kHz
Specifications
Number of channels 2
Amplifier class AB
Output power in 2 ohm 2 x 200 W
Output power in 4 ohm 2 x 135 W
Mono bridge mode 4 ohm 400 W RMS
Damping factor >100
S/N ratio, A-weighted >100 dB
Frequency range 10 Hz - 35 kHz
Input sensitivity 0,25 - 5 V
Input impedance > 10 kohm
Input impedance, high level 100 ohm
High pass filter 15 - 150 Hz
Low pass filter 50 - 500 Hz
Low level output Yes
Grand bass filter 25 - 80 Hz, 0-18 dB
Remote bass level control No
Remote phase shift control No
High level input with auto start Yes
Integrated fan No
Power consumption (idle) 0,7 A
Power consumption (max) 60 A
Rec. power cable Minimum 5AWG / 16 mm2
Fuses 2 x 30 A
Dimension (W x D x H) 250 x 295 x 67 mm / 9,84 x 11,6 x 2,63"
Weight 3,6 kg ( 7,9 lb)
