KENWOOD KDC-W4044U/usb

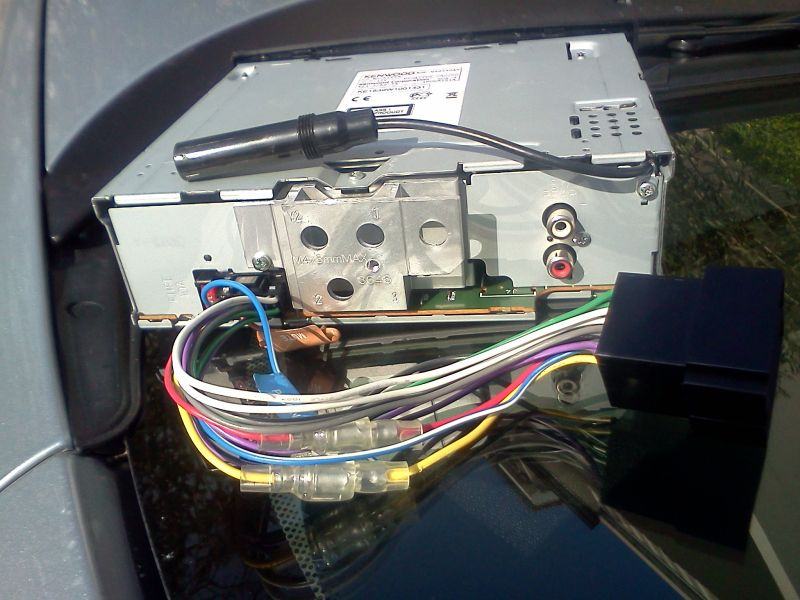

....prodajem KENWOOD KDC-W4044U/usb....malo koristen,u odlicnom stanju ,nema tragova koristenja sto se i vidi na slikama...450 kn
... u zamjenu mogu kabeli za napajanje 35-5o mm,osigurac,distribucija...

Key Features

CD Player with MP3/WMA/AAC decoder built-in
Front USB input with slide protection cover & front AUX input
1 preout rear/subwoofer switchable
Bass Boost
MP3, WMA & AAC files playback with ID-3 tag display
RDS tuner with radio-text support
High-preformance, clean-reception K3I tuner
Remote sensor for optional IR remote control unit
Avalible in either green or amber ilumination

General Features

DIN Size 1 DIN
Detachable Faceplate Yes
Protection Case For Faceplate Yes, Soft Case
Faceplate Mechanism Full Detachable Faceplate
Security Code Function Yes
Key Illumination Red
Rotary Encoder & Control Knob Yes
Operation mode Rotary + push
Attenuator with Smooth Volume Return Yes, only bij remote control
Touch Sensor Tone Yes
Digital Clock (24H) Yes
All-off Select (20/40/60 minutes) Yes
Built-in Connector Molex 16 pin
ISO connector Yes

Display Features

Display Type Fluorescent (FL) Tube Display
Display Layout 14 segments x 8 Characters
Dimmer Control 2 steps - Manual
Demo Mode Yes
Special Character Display No

Tuner Features

RDS (PI, PS, AF, TI, Clock) Yes
Radio Text (RDS) Yes
Program Type Function (PTY) Yes
Enhanced Other Networks Function (EON) Yes
K3I - Clean Reception Tuner Yes
FM Reception Yes
AM (MW/LW) Reception Yes
Presets 24 Presets (18FM / 3LW / 3MW)
Automatic Memory Entry (AME) Yes
Up/Down Seek Tuning Yes
Tuning mode (Auto1 / Auto2 / Manual) Yes
FM Stereo / Mono Selector Yes

CD Features

CD-R/RW Compatible Yes
MP3 Playback with ID3 Tag Display Yes
WMA (Windows Media Audio) Playback Yes
AAC (Advanced Audio Coding) Playback Yes
Multi-session Disc Playback Yes
CD Text Support Yes
Supreme Yes
D.A.C. processing 24 bit
0 bit Mute Yes
Random Function (Track/Disc) Yes
Repeat Function (Track/Disc) Yes
Scan Function (Track/Disc) Yes

USB Features

USB interface port Yes, Front (built-in)
USB Type USB1.1 / USB 2.0
USB extension cable supplied no
MP3 playback with ID3 Tag Display Yes
WMA (Windows Media File) playback Yes
AAC (Advanced Audio Codec) playback Yes

Audio Features

Maximum Output Power 50W x 4
Auxiliary input Yes, in front panel
Auxiliary Type Mini-jack
Pre-out 1 RCA
Pre-out Output Level 2V
Preout Rear / Subwoofer Switchable Yes
Subwoofer Reference Level Adj. Yes
Source Tone Control & Memory Bass / Mid / Treble
Balance/Fader/Loudness Control Yes
Att.(-20dB) with smooth Volume Return Yes
System Q (Preset Sound Control) Yes
Bass Boost Circuit Yes
Low-pass Filter Yes

Connectivity

PS Amplifier Control System (5L-Bus) No
Power Control (P.CON) wire Yes
2-way (Tel/Navi) mute wire Yes

Cosmetics features

Front/edge Black Injection
Dress plate Black Injection
Volume & operation knob or wheel Chrome Plated
Preset key finish Black Injection
Escution Black Injection
Triangle Illumination Red
Volume & operation knob illumination Green
Key illumination Green

Tuner Specifications

FM Frequency Range 87.5MHz ~ 108MHz
FM Frequency Step 50kHz
FM Usable Sensitivity 0.7μV/75ohm (S/N 26dB)
FM Quieting Sensitivity 1.6μV/75ohm (S/N 46dB)
FM Frequency Response 30Hz ~ 15kHz (± 3dB)
FM Sigal to Noise Ratio 65dB(MONO)
FM Selectivity(DIN) over 80dB (±400kHz)
FM Stereo Separation (1kHz) 35dB
MW Frequency Range 531kHz ~ 1611kHz
MW Frequency step 9kHz
MW Usable Sensitivity 25μV (S/N 20dB)
LW Frequency Range 153kHz ~ 281kHz
LW Usable Sensitivity 45μV (S/N 20dB)

CD Specifications

Laser Diode GaAIAs
Digital Filter(D/A) 8 Times OverSampling
Digital/Analogue Converter 24 Bit
Spindle Speed 500 ~ 200rpm (CLV: 1 times)
Wow & Flutter Below Measurable Limit
Frequency Response 10Hz ~ 20kHz (±1dB)
Total Harmonic Distortion 0.01% (1kHz)
Sigal to Noise Ratio 105dB (1kHz)
Dynamic Range 93dB
MP3 Decoder Compliant with MPEG-1/2 Audio Layer-3
WMA Decoder Compliant with Windows Media Audio
AAC Decoder AAC-LC".m4a" Files
Maximum number of files 512
Maximum number of folders 50
Max. nr. files per folder 255
Max. nr. of characters for file name 64
Max. nr. of characters for folder name 64
Max. nr. of characters for MP3-tags 30
Max. nr. of characters for WMA-tags 30
Max. nr. of characters for AAC-tags 30

USB Specifications

USB Version compatibility 1.1 / 2.0
File System FAT 16/32
Maximum Supply current 500mA
MP3 Decode Compliant with MPEG-1/2 Audio Layer-3
WMA Decode Compliant with Windows Media Audio
AAC Decode AAC-LC "m4a" Files
Max. nr. of files 65025
Max. nr. of folders 255
Max. nr. of files per folder 255
Max. nr. of characters for file names 126
Max. nr. of characters for folder names 126
Max. nr. of characters for MP3 tags 30
Max. nr. of characters for WAV-tags 30
Max. nr. of characters for WMA-tags 30

Audio Specifications

Maximum Power 50W x 4
Output Power (DIN45324,+B=14.4v) 30W x 4
Preout Level 2000mV / 10kOhm,
Preout Impedance 600Ohm
Speaker Impedance 4Ohm ~ 8Ohm
AUX Frequency Response 20Hz ~ 20kHz (±1dB)
AUX Maximum Input Voltage 1200mV
AUX Input Impedance 10kOhm
Bass Tone Control 100Hz ±8dB
Middle Tone Control 1kHz ±8dB
Treble Tone Control 10kHz ±8dB

General Specifications

Operating voltage 14.4V (11 ~ 16V Allowable)
Current Consumption 10A
Dimensions (WxHxD) 182 x 53 x 155mm
Weight 1300gr
