Autoradio, 2DIN multimedija Audiovox 8022

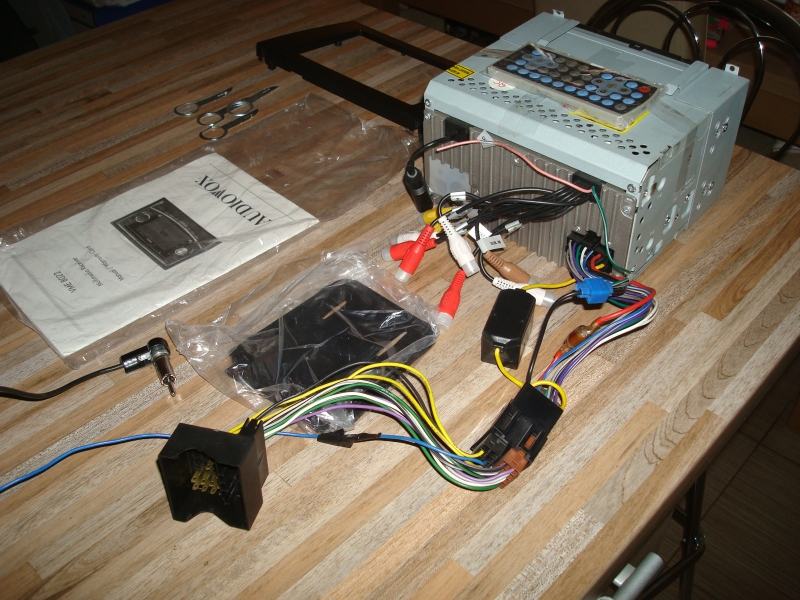

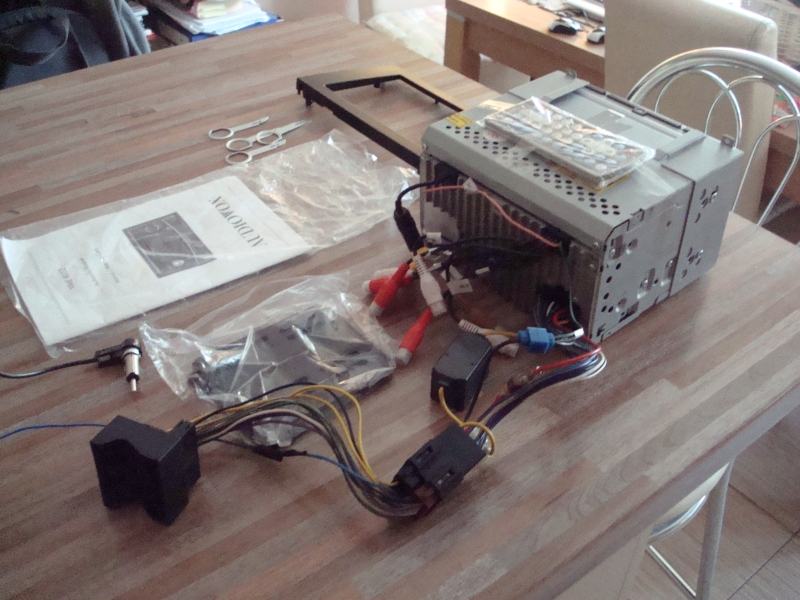

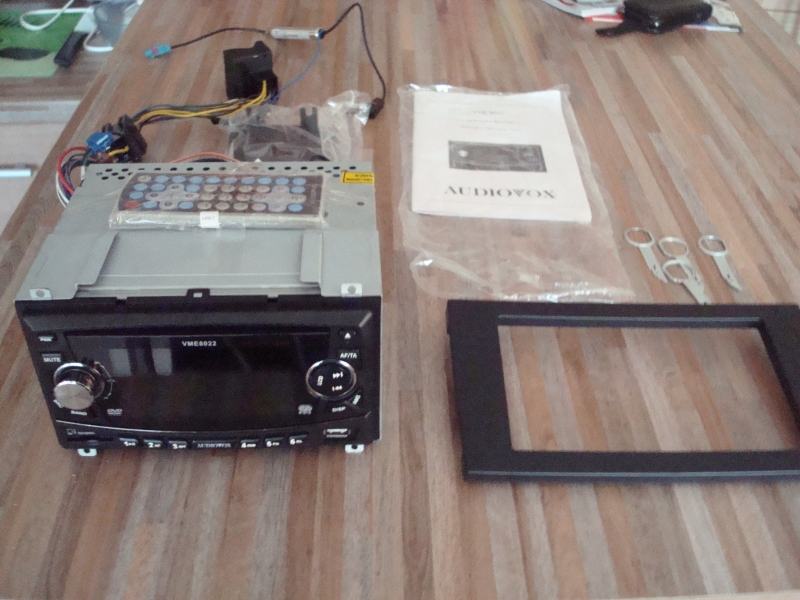

2DIN multimedija za auto kvalitetne njemačke tvrtke Audiovox (Jensen). Čita sve moguće formate MP3, DVD, DIVX, SVCD, VCD. Ima SD i USB port. Uređaj je bio u Audi-u A4 B6 pa ga i prodajem s maskom i dodacima za A4. Uređaj je ispravan i u prilično dobrom stanju.


Power Output - 3 watts RMS X 4 channels into 4-ohms @ < 1% THD+N
Signal to Noise Ratio - 70dBA below reference (reference: 1 watt, 4-ohms)
Frequency Response - 20Hz to 20kHz (-3dB), Auxiliary input used as source reference
Reference Supply Voltage - 14.4VDC

DVD/CD Player

Compatible Disc Media - DVD + R / RW and CD-R / RW
Compatible Media Formats - CD-DA, MP3, WMA, VCD, SVCD, AVI, MPEG1 / 2, XviD, DivX and Kodak picture CD (JPEG)
Signal to Noise Ratio - >95dBA
Dynamic Range >95dB
Frequency Response 20Hz to 20 kHz, -3dB
Channel Separation > 60dB @ 1 kHz

Video

Format NTSC, PAL (auto-detection)
Output 1Vp-p (75-ohm)
Input 1Vp-p (75-ohm)

FM Tuner

Tuning Range 87.5MHz - 107.9MHz
Mono Sensitivity (-30dB) 10dBf
Quieting Sensitivity (-50dB) 15dBf
Alternate Channel Selectivity 70dB
Signal to Noise Ratio @ 1 kHz 58dB
Image Rejection 75dB
Stereo Separation @ 1 kHz >27dB
Frequency Response 30Hz - 13 kHz, -3dB

AM Tuner

Tuning Range 530 kHz - 1720 kHz
Sensitivity (-20dB) 15uV
Signal to Noise Ratio @ 1 kHz 50dB
Frequency Response . 50Hz - 2kHz, -3dB

Monitor

Screen Size 4.0" (Measured diagonally)
Active Area 88mm x 50mm
Screen Type Digital TFT Panel
Resolution 480 (W) X 272 (H) sub pixels
Dot Pitch 0.061 (H) x 0.183 (V)
Contrast Ratio 100:1
Brightness 200 cd/m2

General

Auxiliary Input Impedance 10k
Power Supply 11 to 16VDC, negative ground
Power Antenna (Blue) 500mA max, current limited protection
Operating Temperature -20C ~ 65C
Fuse 15-amp, mini ATO type
DIN Chassis Dimensions 2.0 DIN (Double DIN)
