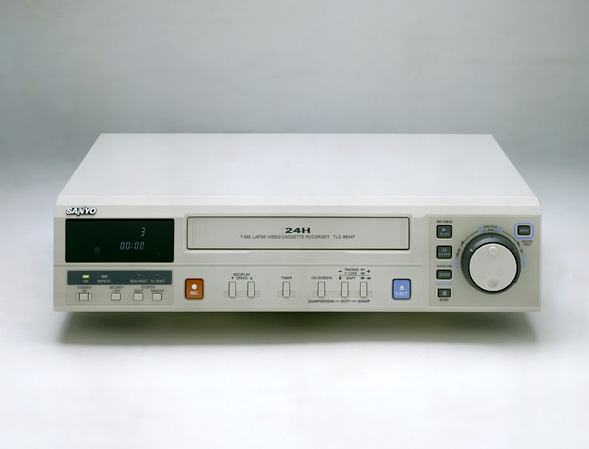

Sanyo TLS-9924P 24-Hour Time Lapse Video Cassette Recorder

http://de.sanyo.com/Products/View/Discontinued/TLS-9924P

Model model TLS-9924P
Type Time Lapse
Tape Cassette Standard 1/2", E-180, VHS
Video Recording System (Recording Method) 4-head, 2-video helica/heads for recording and standard playback, helical scan heads for time lapse modes
Tape Speed 23,39 mm/sec., 3-hour-mode
Recording and Playback Time 24 hours, 3 hours, 12 hours, E-180
Audio Recording 3 hour mode, 12 hour mode , 24 hour mode, E-180
Highspeed Scan 5 x (3-hour mode)
Rewind / FF Time 2 min., E-180
Signal Format PAL (color), CCIR (B/W), autoselect, 625 lines/50 field/sec.
Horizontal Resolution 250 lines (color), 350 lines (B/W)
Video S/N Ratio 45 dB
Video Input 1.0 V (p-p), 75 ohms unbalanced (BNC)
Video Output 1.0 V (p-p), 75 ohms unbalanced (BNC)
Audio Input - 8 dB, unbalanced, 27 kOhm, RCA
Audio Output RCA, - 8 dB, unbalanced, 600 Ohm
Microphone Input 10 kOhm, - 60 dB
Alarm Input Ground contact closure (srew type terminal strip)
Alarm Output DC 5 V 5.7 kohms, low at alarm (srew type terminal strip)

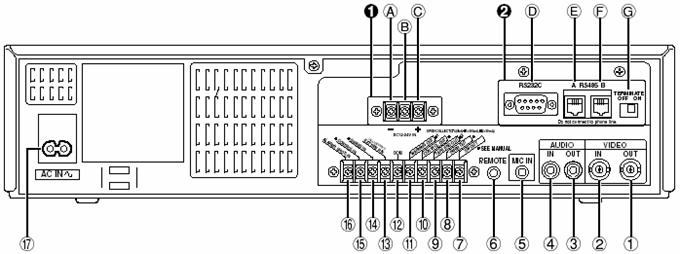

Connectors Control in/out, 1-shot in, screw type terminal strip, Eject in/out, Clock set in/out, Series in/out, Timer out, remote control input, 3,5 mm mini jack, Ext.-timer in, Warning out, Tape end out
RS-482/RS-232C-data transfer speed 19200 Baud, 2400 Baud, 4800 Baud, 9600 Baud
Time/Date Generator 1st Line date, month, year, day of week, alarm count
Time/Date Generator 2nd Line hour, minute, second, recording speed
Battery Backup 30 days
Power Source 220-240 V AC, 60 Hz, 50 Hz
Power Consumption 15 W
Operating Conditions 5 - 40 °C
Dimensions 420 x 99,5 x 306 W x H x D mm
Weight 4,0 kg

------------------------

- Prodajem ili mijenjam.

- Pogledajte i ostale moje oglase !
