Mackie DLZ Creator - digitalna mikseta

A Powerhouse Audio Studio for Content Creation

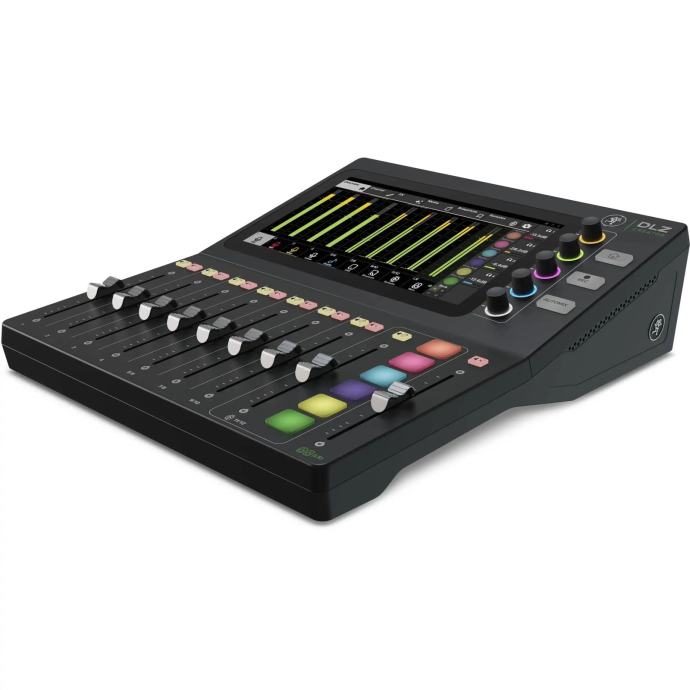

Designed for content creators, the Mackie DLZ Creator is an adaptive digital mixer for podcasting and streaming that's designed for users of all experience levels to quickly get professional results for podcasts, YouTube videos, live streams, and more. The mixer features Mix Agent technology, Onyx80 microphone preamps, and a 10.1" touchscreen that tailors the controls based on your choice of modes (Easy, Enhanced, or Pro).
Mix Agent is a virtual audio assistant that guides you through set up and automates functions for an efficient, user-friendly experience. AutoMix manages levels for up to four microphones, so you and your guests can be heard, even when everyone speaks at the same time. You can also integrate a phone call into your mix via Bluetooth and activate Mix Minus with one tap, so the caller won't hear their voice echo when they speak. More than a podcast mixer or audio interface, the DLZ Creator can record or stream multitrack audio to a computer via USB-C or straight to an SD card for a truly self-contained setup.

Create on Your Terms

Choose the mode that fits your creative style and needs, and DLZ Creator tailors the display and controls to match.
Easy Mode: a no-fuss user interface that’s the fastest path to recording your first episode. For those who want to get great results without menu-diving.
Enhanced Mode: expanded control over your sound and mix. For those who want some customization without an overwhelming number of options.
Pro Mode: total control and fully customizable. For those who know what they want, and how to get it.
Recording & Monitoring Flexibility Meets Built-In Smarts
Connect up to 4 microphones and 3 external devices—including a smartphone—using analog, Bluetooth, or USB
4 combo XLR-1/4" inputs can accommodate microphone- or line-level signals
2 unbalanced 1/4" inputs and a single stereo 3.5mm jack can be used for analog input sources
Record or stream to a computer via USB-C or record to an SD card or USB flash drive
The unit can function as a 14x4 USB-C audio interface to Mac/PC
Mix Agent is your personal audio assistant, guiding you through set up and setting gain levels
Automatic Gain sets your input levels for you
AutoMix manages levels for up to four mics, so everyone can be heard, even when everyone is speaking at the same time
Using Mix Minus with your Bluetooth-connected smartphone brings a caller into your mix with no audible echo
Up to 4 guests can monitor the audio via independent 1/4" outputs
Tactile Controls and High-Quality Audio Processing
10.1” high-resolution, full-color touch display with anti-glare coating provides a quick and intuitive workflow
5 Quick Control knobs provide a variety of easy to access mode-dependent functions, including headphone volumes and parameter controls
Instantly trigger pre-made samples via dedicated backlit buttons
Additional backlit buttons are provided for mute, solo, and navigation functions
Onboard vocal processing helps you sound like a pro with 3-Band Parametric EQ, High-Pass Filter, De-Esser, Compression, and Noise Gate functions.
Atomizer Reverb and Chronotronic Delay effects are available for additional sound sweetening and or accent effects
Mixer
Number of Analog Input Channels 8 (4 Mono / 2 Stereo)
Number of Mic Preamps 4
Number of Analog Output Channels 6
Max I/O Capacity 12 x Input / 6 x Output
Mix Routing 1 x Stereo Main LRC
4 x Stereo Headphone
Groups None
Display 10.1" LCD Touchscreen
Faders & Level Adjustment 9 x Fader
Signal Processing
EQ 3-Band Parametric
Graphic EQ None
Solo/Mute Solo, Mute per Input Channel
Channel Output/Source Monitoring AFL
Real Time Analyzer None
Audio Delay None
Automatic Mic Mixing Yes
Digital Audio
Sample Rates 48 kHz
Bit Depth 24-Bit
Latency 3 ms
Connectivity

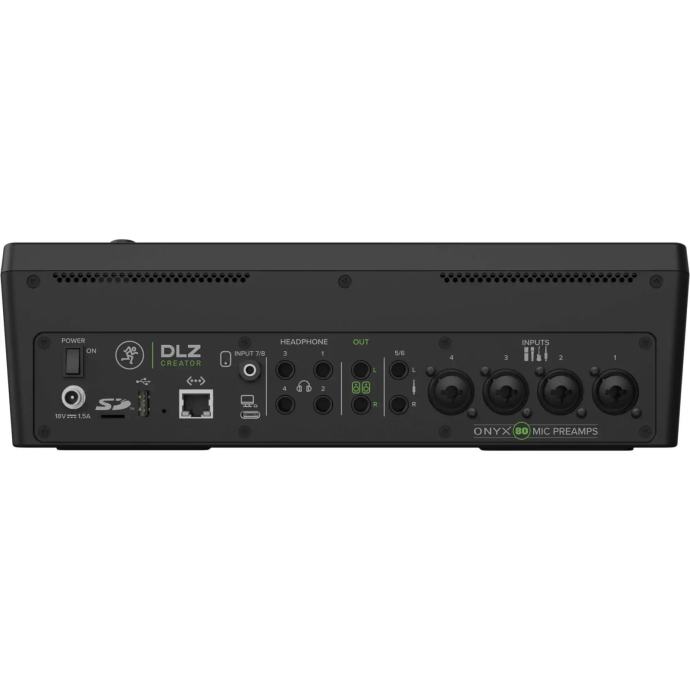

Analog Inputs 4 x Combo XLR-1/4" 3-Pin Balanced/Unbalanced Mic/Line/Hi-Z Input
2 x 1/4" TRS Balanced/Unbalanced Line Input (1 Stereo Pair)
1 x 1/8" / 3.5 mm TRS Unbalanced Stereo Line Input
Analog Outputs 2 x 1/4" TRS Balanced/Unbalanced Stereo Main Output (1 Stereo Pair)
4 x 1/4" TRS Unbalanced Stereo Headphone Output
Digital I/O None
MIDI I/O None
USB 1 x USB-A 2.0 (Audio Playback, Audio Streaming, Multitrack Record, Recording)
1 x USB-C (Host Connection)
USB I/O Capacity 12 x Input / 2 x Output
Expansion Ports None
Wireless Bluetooth 5.0
Wireless Connectivity Bluetooth
Bluetooth 5.0
Mobile App Compatible No
*As of March, 2023: Check with manufacturer for the most up-to-date compatibility
Recording
Max Multitrack Recording 12 Tracks
Media Support SD
Compatibility
OS Compatibility macOS
Windows
*As of March, 2023: Check with manufacturer for the most up-to-date compatibility
Power
AC Input Power 100 to 240 VAC, 50 / 60 Hz
DC Input Power 18 VDC at 1.5 A
Physical
Rack Mountable No
Dimensions 15 x 13 x 4.1" / 38.1 x 33 x 10.4 cm
Weight 6.1 lb / 2.8 kg
Packaging Info
Package Weight 9.57 lb
Box Dimensions (LxWxH) 16.6 x 15 x 5.1"
