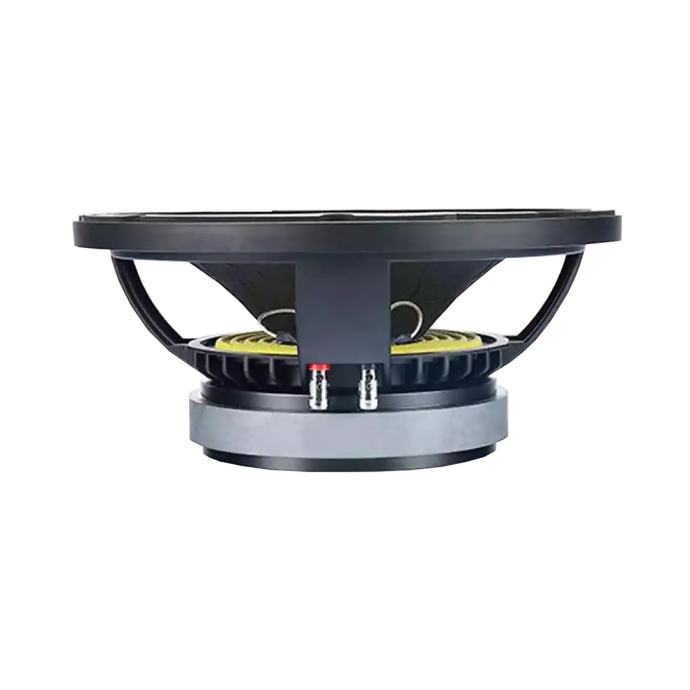

MARTIN WISMAN HPLX 10
- Cijena
- 119 €
Šifra oglasa: 44541400
Osnovne informacije
- Lokacija
- Grad Zagreb, Trnje, Kruge
- Stanje
- novo
- Interna šifra
- 14099
Opis oglasa
General Specifications
Nominal Diameter 250mm/10 inch
Nominal Impedance 8Ω
AES Power Handing 300W
Continuous Program Power 600W
Sensitivity 1W/1M 94dB
Frequency Range 62.9~2.3KHz
Voice Coil Diameter 65mm/2.6 inch
Windinig Material Copper
Former Material Glass Fibre
Winding Depth 17mm
Magnetic Gap Depth 8mm
surround material Polycotton
surround Design M-roll
Magnet Φ156 Ferrite Ring
Thiele & Small Parameters
Resonance Frequency Fs 62.9Hz
DC Resistance Re 6Ω
Mechanical Factor Qms 3.30
Electrical Factor Qes 0.51
Total Factor Qts 0.44
BL Factor BL 14.34T.m
Effective Moving Mass Mms 44gr
Compliance Cms 145.7μ M/N
Equivalent Cas Air Load Vas 27.28dm3
Effettive Piston Area Sd 363cm2
η(Eta Zero) η0 0.01%
Mountiong & Shipping Information
Overall Diameter 262mm
Bolt circle diameter 248mm
Baffle Cutout Diameter 232mm
Depth 115mm
Net Weight 4.2kg
Shipping Weight 4.4kg
Shipping Box(Single) 26.5x26.5x12.5cm
*Ne odgovaramo za pogrešne opise i cijene, fotografije ne moraju u potpunosti odgovarati stvarnom izgledu proizvoda već ih treba shvatiti samo kao informativnu ilustraciju. Za točne informacije posjetite SLUŽBENU WEB stranicu- https://www.player.hr/ ili nazovite +385977148673.
Nominal Diameter 250mm/10 inch
Nominal Impedance 8Ω
AES Power Handing 300W
Continuous Program Power 600W
Sensitivity 1W/1M 94dB
Frequency Range 62.9~2.3KHz
Voice Coil Diameter 65mm/2.6 inch
Windinig Material Copper
Former Material Glass Fibre
Winding Depth 17mm
Magnetic Gap Depth 8mm
surround material Polycotton
surround Design M-roll
Magnet Φ156 Ferrite Ring
Thiele & Small Parameters
Resonance Frequency Fs 62.9Hz
DC Resistance Re 6Ω
Mechanical Factor Qms 3.30
Electrical Factor Qes 0.51
Total Factor Qts 0.44
BL Factor BL 14.34T.m
Effective Moving Mass Mms 44gr
Compliance Cms 145.7μ M/N
Equivalent Cas Air Load Vas 27.28dm3
Effettive Piston Area Sd 363cm2
η(Eta Zero) η0 0.01%
Mountiong & Shipping Information
Overall Diameter 262mm
Bolt circle diameter 248mm
Baffle Cutout Diameter 232mm
Depth 115mm
Net Weight 4.2kg
Shipping Weight 4.4kg
Shipping Box(Single) 26.5x26.5x12.5cm
*Ne odgovaramo za pogrešne opise i cijene, fotografije ne moraju u potpunosti odgovarati stvarnom izgledu proizvoda već ih treba shvatiti samo kao informativnu ilustraciju. Za točne informacije posjetite SLUŽBENU WEB stranicu- https://www.player.hr/ ili nazovite +385977148673.
