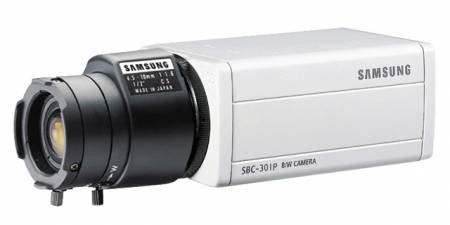

Samsung Standard CCTV Camera SBC-301P (za Video nadzor)
- Cijena
- 19,91 €
Šifra oglasa: 1145520
Osnovne informacije
- Lokacija
- Grad Zagreb
Opis oglasa
crno bijela kamera za video nadzor sa obijektivom ,
ispravna moguca proba prije kupnje
infodugy@gmail.com
Specification Features
Scanning System
PAL Standard:625 TV Lines,25Frames/sec
Image Device Interline transfer CCD, 470,000 Pixels
Image Size 1/3 Inch (Approx. 4.8mm x 3.6mm)
Picture Elements-795(H)x596(V) : Effective Picture Elements
Geometry-No Geometry Distortion
Interlace_2:1 Interlace
Scanning Frequency-Horizontal : 15.625KHz / 15.625KHz Vertical : 50Hz / 50Hz
Sync. System
Internal / Line-Look
Resolution
Horizontal : 550TV Lines, Vertical : 350TV Lines
Video Output Level
VBS 1.0Vp-p(75 ohms, composite)
S/N Ratio
More than 48dB
Scene Illumination
Lens Mount
C/CS Compatible
Gamma Correction
0.45
Lens Control (AI Lens)
DC Iris, Video Iris
Controls (Switch)
ELC : ON/OFF, BLC : ON/OFF, AGC : ON/OFF
SYNC : Internal/Line Lock(V Phase Control)
Input/Output Sockets
Video Output : BNC(rear), AI Lens : 4-pin DIN(side) Power :Power cord.(rear)
Power Indicator
LED (rear)
Environmental Conditions
Operating Temperature : -10¡É~50¡É(14¢µ~122¢µ)
Humidity : Within 90% RH
Power Requirement
AC 230V
Power Consumption
4.0W
Weight
Approx. 450g
Dimensions(WxHxD
65x52x133mm(2.65\" x 2.05\" x 5.24\")
ispravna moguca proba prije kupnje
infodugy@gmail.com
Specification Features
Scanning System
PAL Standard:625 TV Lines,25Frames/sec
Image Device Interline transfer CCD, 470,000 Pixels
Image Size 1/3 Inch (Approx. 4.8mm x 3.6mm)
Picture Elements-795(H)x596(V) : Effective Picture Elements
Geometry-No Geometry Distortion
Interlace_2:1 Interlace
Scanning Frequency-Horizontal : 15.625KHz / 15.625KHz Vertical : 50Hz / 50Hz
Sync. System
Internal / Line-Look
Resolution
Horizontal : 550TV Lines, Vertical : 350TV Lines
Video Output Level
VBS 1.0Vp-p(75 ohms, composite)
S/N Ratio
More than 48dB
Scene Illumination
Lens Mount
C/CS Compatible
Gamma Correction
0.45
Lens Control (AI Lens)
DC Iris, Video Iris
Controls (Switch)
ELC : ON/OFF, BLC : ON/OFF, AGC : ON/OFF
SYNC : Internal/Line Lock(V Phase Control)
Input/Output Sockets
Video Output : BNC(rear), AI Lens : 4-pin DIN(side) Power :Power cord.(rear)
Power Indicator
LED (rear)
Environmental Conditions
Operating Temperature : -10¡É~50¡É(14¢µ~122¢µ)
Humidity : Within 90% RH
Power Requirement
AC 230V
Power Consumption
4.0W
Weight
Approx. 450g
Dimensions(WxHxD
65x52x133mm(2.65\" x 2.05\" x 5.24\")
