EWM Tetrix 400 Comfort Plasma / TIG uređaj za varenje
- Cijena
- 1.100 €
Šifra oglasa: 45098016
Osnovne informacije
- Lokacija
- Dubrovačko-neretvanska, Konavle, Popovići
- Vrsta stroja
- Aparat za zavarivanje
- Proizvođač
- Ostalo
- Model
- EWM Tetrix 400 Comfort Plasma
- Stanje
- rabljeno
Opis oglasa

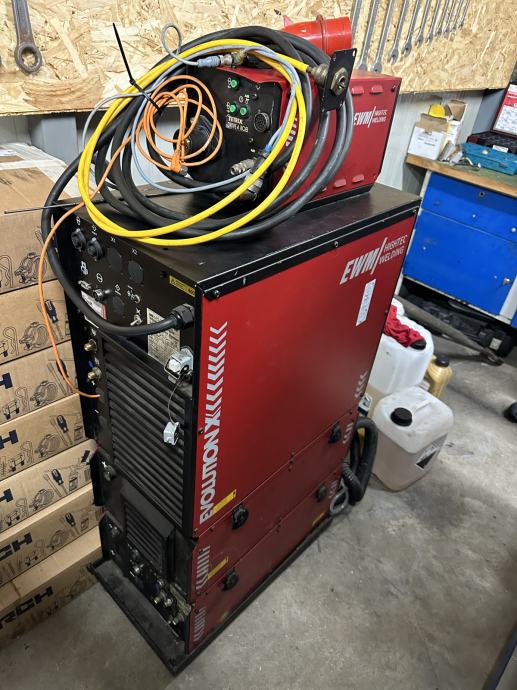

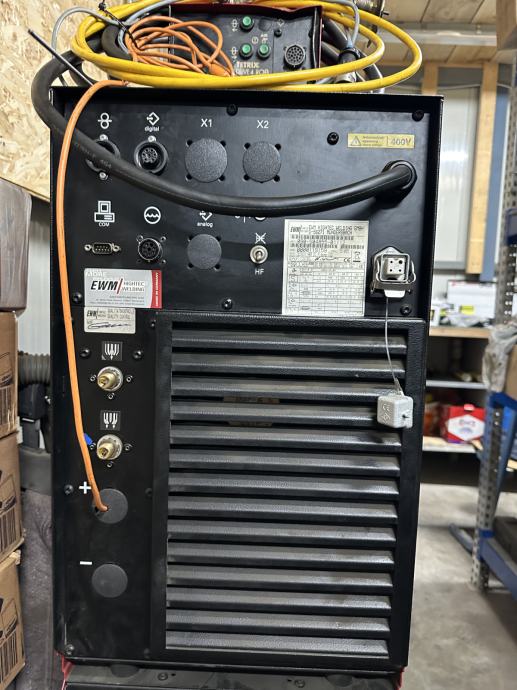

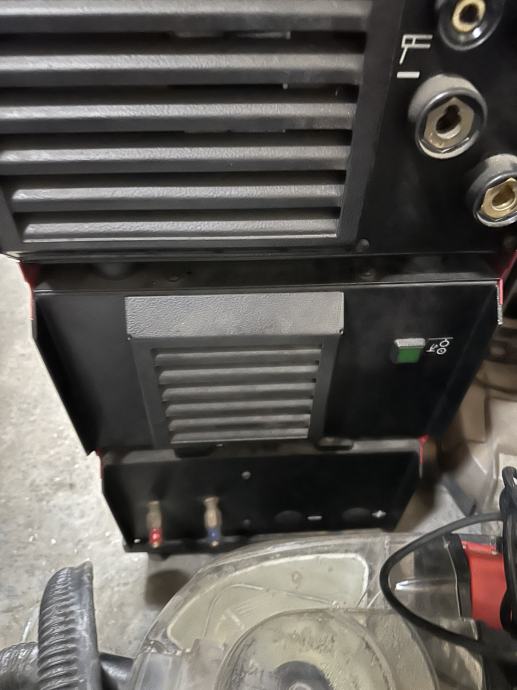

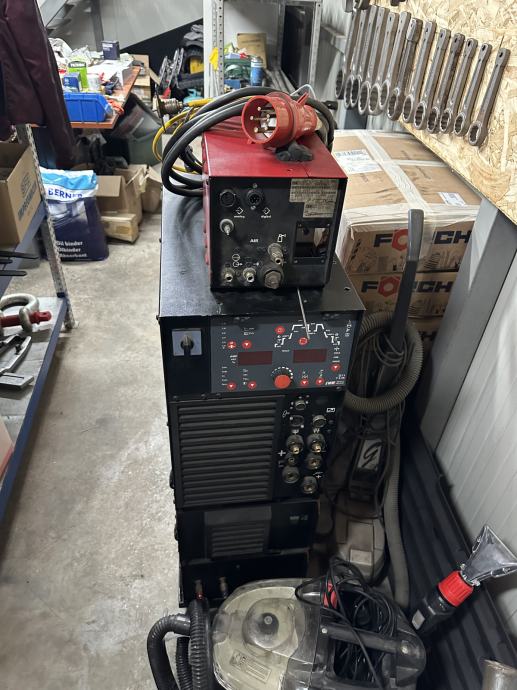

EWM Tetrix 400 Comfort Plasma / TIG uređaj za varenje - jedan komplet - sve sto je vidljivo na fotografijama
Stanje : rabljeno
Specifikacija proizvodaca
Tetrix 400 Plasma
Setting ranges Plasma/TIG MMA
Pilot arc current, pilot arc
(adjustable with PC 300 software)
5 A to 25 A
(factory setting 10 A)
-
Welding current 5 A-400 A 5 A-400 A
Welding voltage 25.2 V-41 V/10.2 V-26 V 20.2 V-36 V
Duty cycle at 25 °C ambient temperature
45% DC
65% DC
100% DC
400 A
380 A
330 A
400 A
360 A
310 A
Duty cycle at 40 °C ambient temperature
40% DC
60% DC
100% DC
400 A
380 A
320 A
400 A
360 A
300 A
Load alternation 10 min. (60% DC ∧ 6 min. welding, 4 min. pause)
Open circuit voltage 98 V
Mains voltage (tolerances) 3 x 400 V (-25% to +20%)
Frequency 50/60 Hz
Mains fuse (safety fuse, slow-blow) 3 x 35 A
Mains connection lead 4 x 4 mm2
Maximum connected load 20.7 kVA/13.1 kVA 18.2 kVA
Recommended generator rating 28 kVA
cosϕ 0.99
Insulation class/protection classification H/IP 23
Ambient temperature -20 °C to +40 °C *
Machine cooling Fan
Workpiece lead 70 mm2
Dimensions L/W/H [mm] 660 x 335 x 850
Weight 85 kg
Stanje : rabljeno
Specifikacija proizvodaca
Tetrix 400 Plasma
Setting ranges Plasma/TIG MMA
Pilot arc current, pilot arc
(adjustable with PC 300 software)
5 A to 25 A
(factory setting 10 A)
-
Welding current 5 A-400 A 5 A-400 A
Welding voltage 25.2 V-41 V/10.2 V-26 V 20.2 V-36 V
Duty cycle at 25 °C ambient temperature
45% DC
65% DC
100% DC
400 A
380 A
330 A
400 A
360 A
310 A
Duty cycle at 40 °C ambient temperature
40% DC
60% DC
100% DC
400 A
380 A
320 A
400 A
360 A
300 A
Load alternation 10 min. (60% DC ∧ 6 min. welding, 4 min. pause)
Open circuit voltage 98 V
Mains voltage (tolerances) 3 x 400 V (-25% to +20%)
Frequency 50/60 Hz
Mains fuse (safety fuse, slow-blow) 3 x 35 A
Mains connection lead 4 x 4 mm2
Maximum connected load 20.7 kVA/13.1 kVA 18.2 kVA
Recommended generator rating 28 kVA
cosϕ 0.99
Insulation class/protection classification H/IP 23
Ambient temperature -20 °C to +40 °C *
Machine cooling Fan
Workpiece lead 70 mm2
Dimensions L/W/H [mm] 660 x 335 x 850
Weight 85 kg
