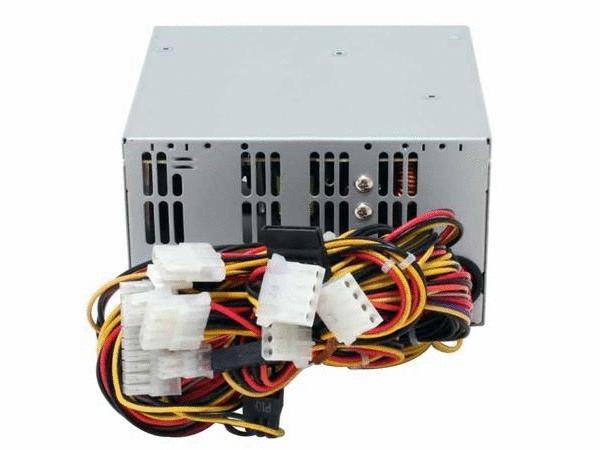

Antec Basiq BP500U 500W Continuous Power ATX12V

Product Description Antec Basiq BP500U - power supply - 500 Watt
Device Type Power supply - active Power Factor Correction (PFC) - internal
Specification Compliance ATX12V 2.01
Dimensions (WxDxH) 5.9 in x 6.2 in x 3.3 in
Weight 5.1 lbs
Input Voltage AC 100-240 V
Output Voltage +3.3, +5, ±12 V
Power Provided 500 Watt
Output connector(s) 4 pin internal power, power 4 pin ATX12V connector, 15 pin Serial ATA power, 6 pin PCI Express power, power 24 pin ATX with detachable 4 pin section
Manufacturer Warranty 1 year warranty
General
Device Type Power supply - active Power Factor Correction (PFC) - internal
Specification Compliance ATX12V 2.01
Width 5.9 in
Depth 6.2 in
Height 3.3 in
Weight 5.1 lbs
Localization United States
Power Device
Input Voltage AC 100-240 V
Input Voltage Margin ± 10%
Frequency Required 47 - 63 Hz
Input Connector(s) 1
Output Voltage +3.3, +5, ±12 V
Output connector(s) 4 pin internal power, power 4 pin ATX12V connector, 15 pin Serial ATA power, 6 pin PCI Express power, power 24 pin ATX with detachable 4 pin section
Power Output Connectors Details 2 x power 4 pin ATX12V connector Ý 1 x power 24 pin ATX with detachable 4 pin section Ý 15 pin Serial ATA power Ý 4 pin internal power Ý 6 pin PCI Express power
Power Provided 500 Watt
Miscellaneous
MTBF 80,000 hour(s)
Features Overvoltage protection, overpower protection
Compliant Standards FCC Class B certified, CE, UL, TUV, cUL, CB
Manufacturer Warranty
Service & Support 1 year warranty
Service & Support Details Limited warranty - parts and labor - 1 year
Environmental Parameters
Min Operating Temperature 50 °F
Max Operating Temperature 122 °F
