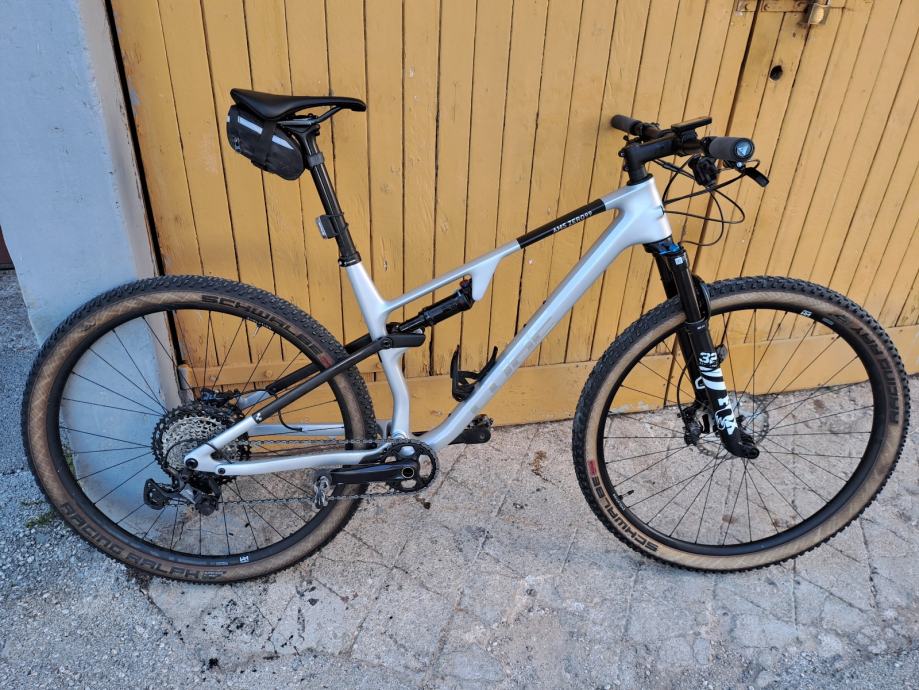

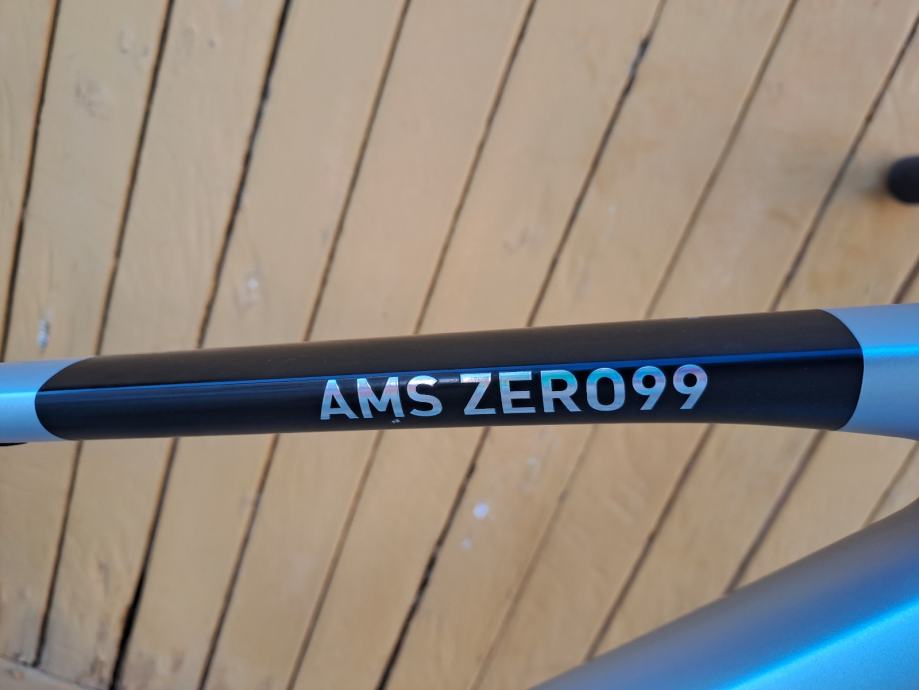

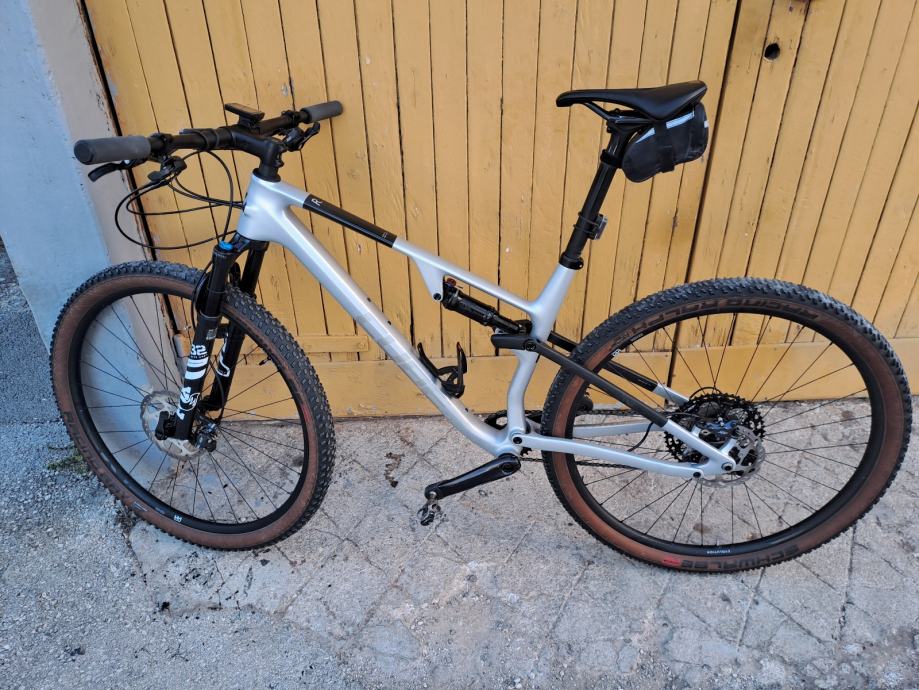

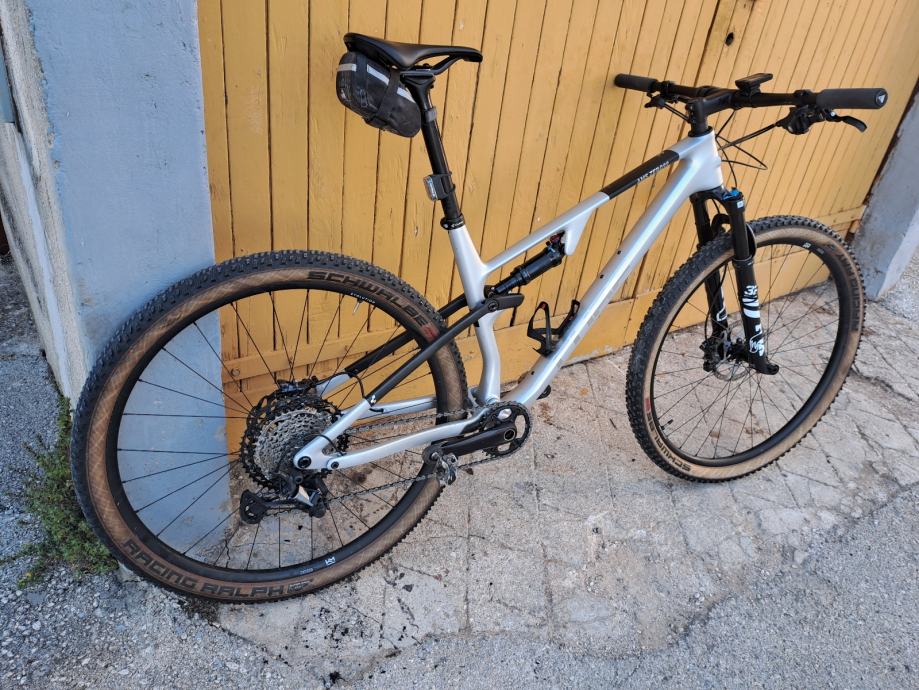

cube ams c68 zero99 carbon

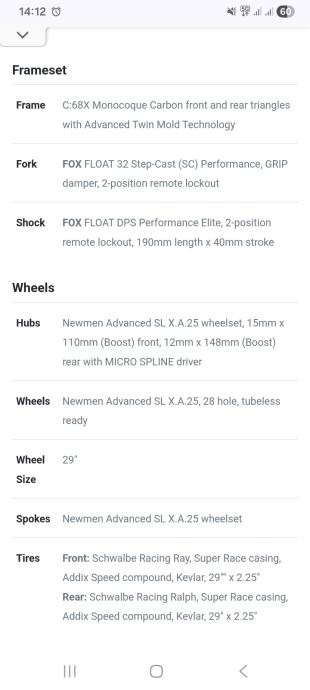

Frame Material Details

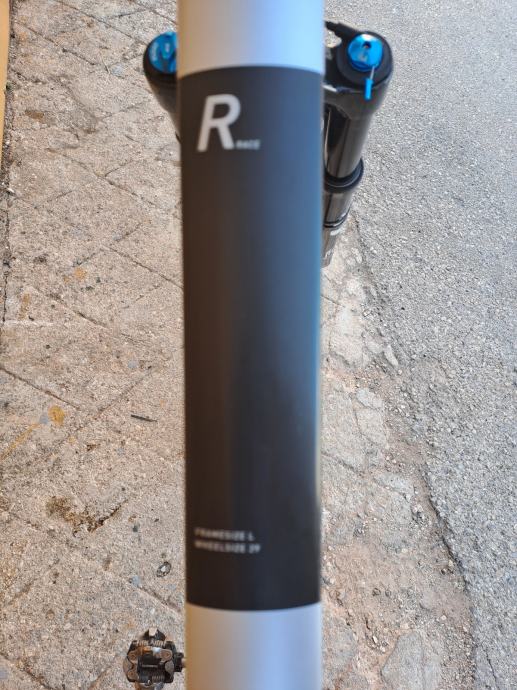

C:68X Monocoque Carbon front and rear triangles with Advanced Twin Mold Technology

Rear Travel

100mm

Rear Shock

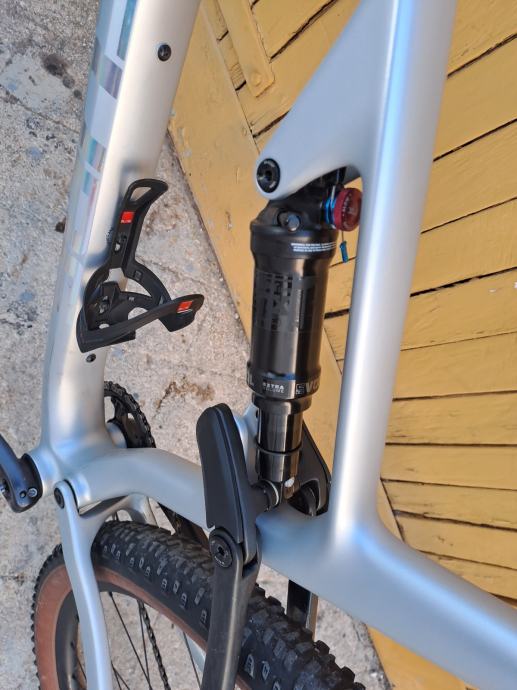

FOX FLOAT DPS Performance Elite, 2-position remote lockout, 190mm length x 40mm stroke

Fork

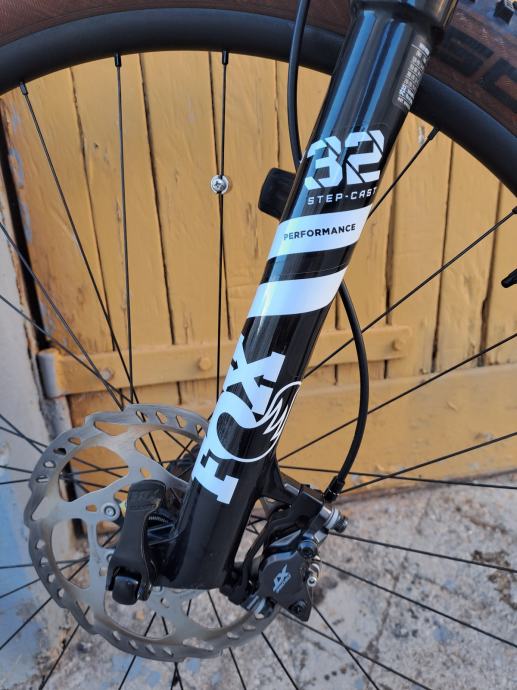

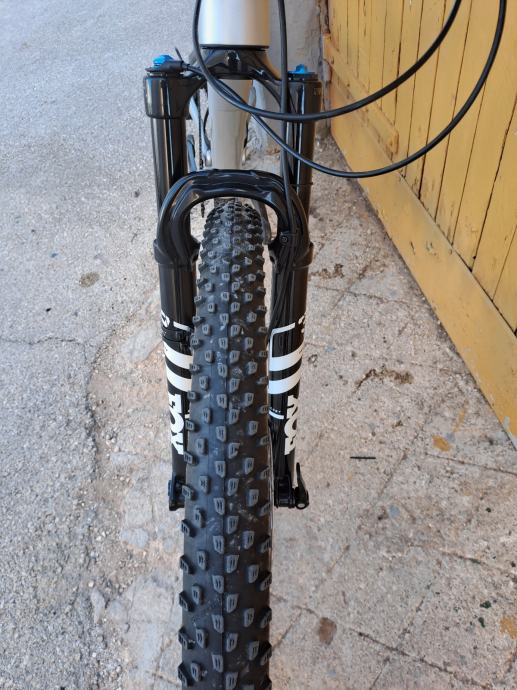

FOX FLOAT 32 Step-Cast (SC) Performance, GRIP damper, 2-position remote lockout

Fork Travel

100mm

Head Tube Diameter

Tapered, 1.125" top, 1.5" bottom

Headset

ACROS Integrated, fiber inserts for 0.6° angle adjustment

Handlebar

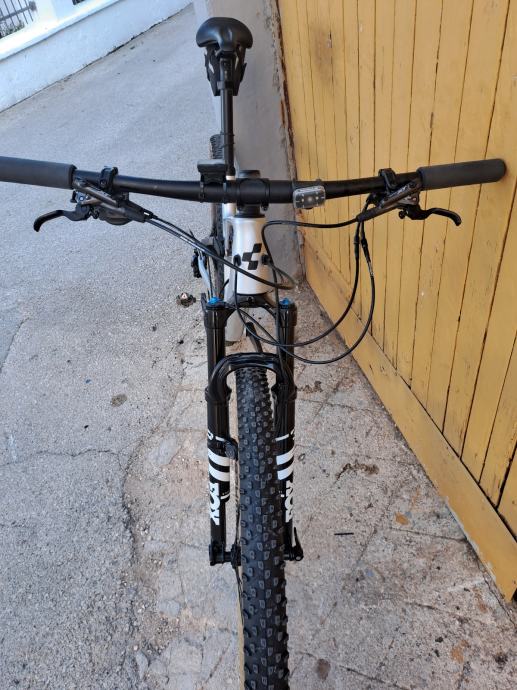

Newmen Advanced 318.0 Carbon, 740mm width, 31.8 clamp diameter

Stem

Newmen Evolution SL 318.2, 6° rise, 31.8mm bar clamp
Length: 70mm (SM), 80mm (MD), 90mm (LG), 100mm (XL)

Grips

ACID React Pro

Brakes

Shimano Deore XT M8100, 2-piston, 180mm front rotor, 160mm rear rotor

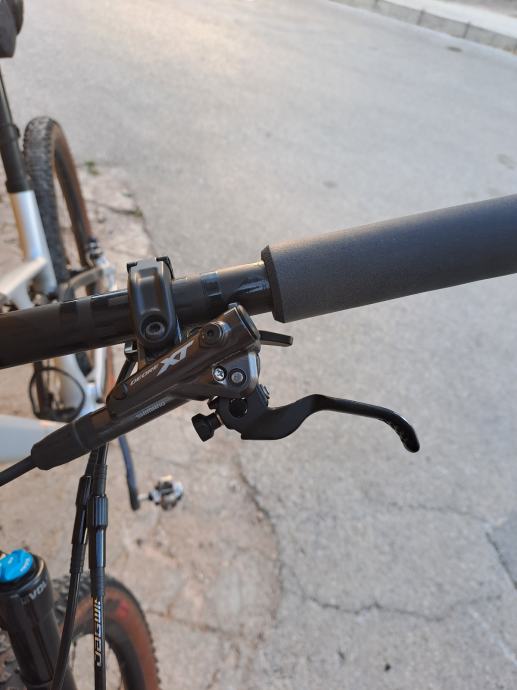

Brake Levers

Shimano Deore XT M8100

Drivetrain

1x

Shifters

Shimano Deore XT M8100, 12-speed, direct attach mounting bracket

Front Derailleur

None

Rear Derailleur

Shimano Deore XT M8100, 12-speed, SGS cage, SHADOW RD+

ISCG Tabs

None

Chainguide

None

Cranks

Shimano Deore XT M8100
Length: 170mm (SM), 175mm (MD-XL)

Chainrings

Shimano Deore XT M8100, 32 tooth

Bottom Bracket

Shimano MT500PA, 92mm press-fit

Pedals

None

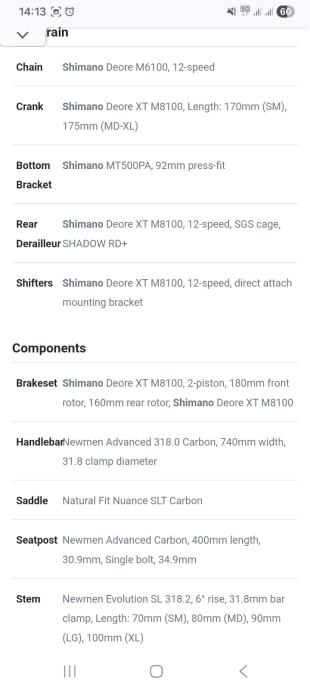

Chain

Shimano Deore M6100, 12-speed

Cassette

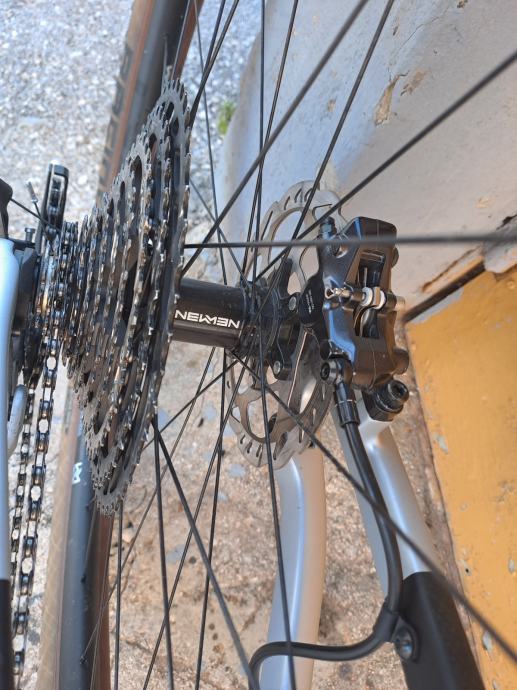

Shimano Deore XT M8100, 12-speed, 10-51 tooth

Rims

Newmen Advanced SL X.A.25, 28 hole, tubeless ready

Hubs

Newmen Advanced SL X.A.25 wheelset, 15mm x 110mm (Boost) front, 12mm x 148mm (Boost) rear with MICRO SPLINE driver

Spokes

Newmen Advanced SL X.A.25 wheelset

Tires

Front: Schwalbe Racing Ray, Super Race casing, Addix Speed compound, Kevlar, 29" x 2.25"

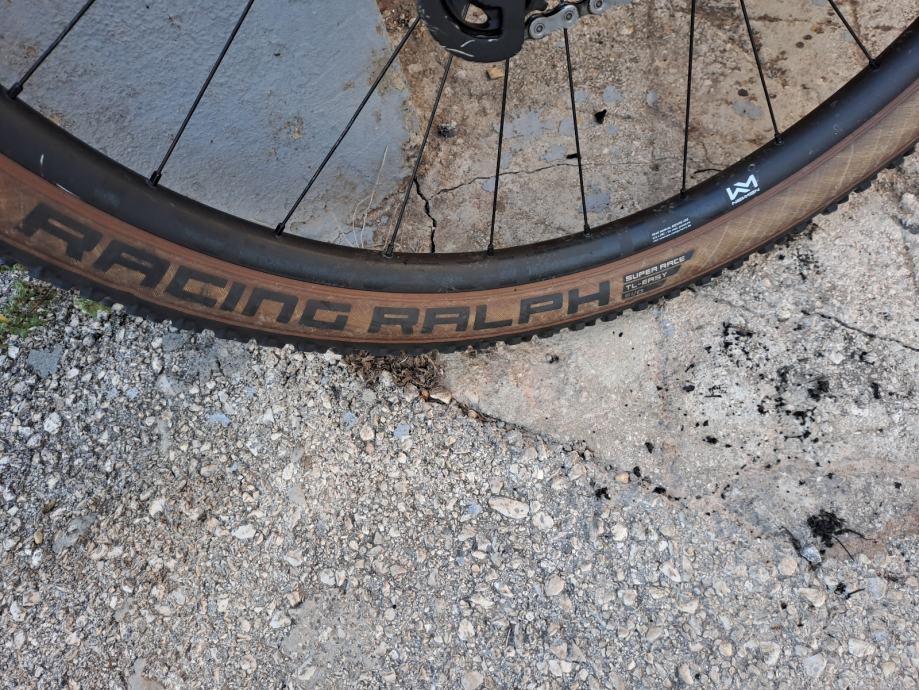

Rear: Schwalbe Racing Ralph, Super Race casing, Addix Speed compound, Kevlar, 29" x 2.25"

Saddle

Natural Fit Nuance SLT Carbon

Seatpost

Newmen Advanced Carbon, 400mm length

Seatpost Diameter

30.9mm

Seatpost Clamp

Single bolt, 34.9mm

Rear Dropout / Hub Dimensions

12mm x 148mm (Boost)

Max. Tire Size

29" x 2.25"

Bottle Cage Mounts

Two inside front triangle

Colors

Silver/Black

Warranty

3 years frame

Weight

23 lb 9.4 oz (10700 g)
