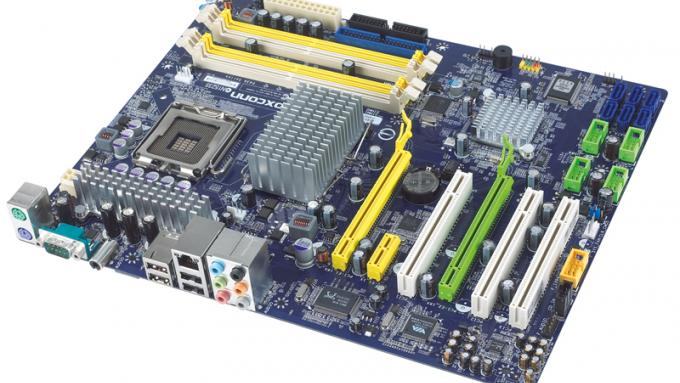

Foxconn P43A-S matična za LGA 775, SATA2, eSATA, DDR2 x4

Vrhunska matična ploča, Ispravna i testirana ploča za intel LGA 775 socket, podržava core 2 duo i core 2 quad procesore i DDR2 RAM memoriju. Ima dva PCI-express X16 utora za grafičke kartice u Crossfire modu. Uz ploču imam i original zadnji limić za kučište. Imam i memoriju za ovu matičnu DDR2 2GB dva komada Kingmax i A-data ukupno 4GB, i grafičku karticu Geforce GT440 2GB.

Intel® Core™2 Quad, Core™2 Extreme, Core™2 Duo, Pentium® Dual-Core, Celeron® Dual-Core processors, Socket T (LGA775)
Supports Intel® next generation 45nm Multi-Core processors
1600(oc**)1333/1066/800 MHz (FSB)
Dual channel DDR2 1066(oc**)/800/667 x 4 DIMMs, Max. 16GB
2* PCIe2.0 x16, 1* PCIe2.0 x1, 3* PCI
1* ATA133, 2*1394a, 6* SATA II, 1* eSATA
7.1 channel HDA, Realtek® ALC888GR
Gigabit LAN, Realtek® RTL8110SC
12 USB 2.0 ports

Processor Intel® Core™2 Quad, Core™2 Extreme, Core™2 Duo, Pentium® Dual-Core, Celeron® Dual-Core processors, Socket T (LGA775)
Chipset Intel® P43 + ICH10
Front Side Bus 1600(oc**)1333/1066/800 MHz (FSB)
Memory Dual channel DDR2 1066/800/667 x 4 DIMMs, Max. 16GB
VGA on Die Discreted
Expansion Slots 2* PCIe2.0 x16, 1* PCIe2.0 x1, 3* PCI
IDE 1* ATA133
Serial ATA(SATA)/RAID 6* SATAII + 1* eSATA
Audio 7.1 channel HDA by Realtek® ALC888GR
LAN Gigabit LAN by Realtek® RTL8110SC
IEEE1394 2* 1394a connectors (rear panel x1, pin header x1)
Back Panel I/O Ports 1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x S/PDIF Out Coaxial port
1 x eSATA port
1 x IEEE1394a port
1 x Audio jack supports 6 jacks
4 x USB 2.0 ports
1 x RJ45 LAN ports
1 x Serial port
Internal I/O Connectors 1 x ATX 24-pin power connector
1 x 8-pin ATX 12V power connector
2 x 4-pin CPU / System smart fan connectors
1 x 3-pin NB fan connectors
1 x Floppy disk drive connector
1 x CD-in connector
1 x Front Panel header
1 x Buzzer (reserved)
4 x USB 2.0 headers support additional 8 ports
6 x Serial ATAII connectors
1 x ATA133 IDE connector
1 x Intrusion Alarm header
1 x Intel Azalia header
1 x 1394a header
1 x IrDA header
1 x Speaker
BIOS Features 8Mb flash EEPROM w/ LAN boot PnP, ACPI, WfM, DMI
Support CD Drivers, Adobe Reader, SuperUtilities, Norton Internet Security
Standards/Manageability PCI 2.3, USB2.0, DMI 2.5
Special Features ** Achieved by overclocking
* 2* PCIe x16 Gen2.0 with ATI CrossFireX™ support
Form Factor ATX (12" x 9.6")
