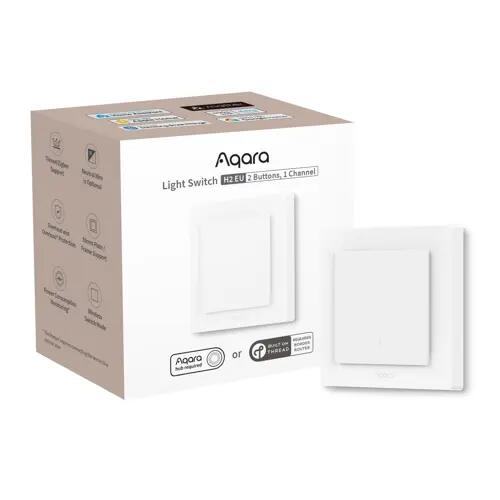

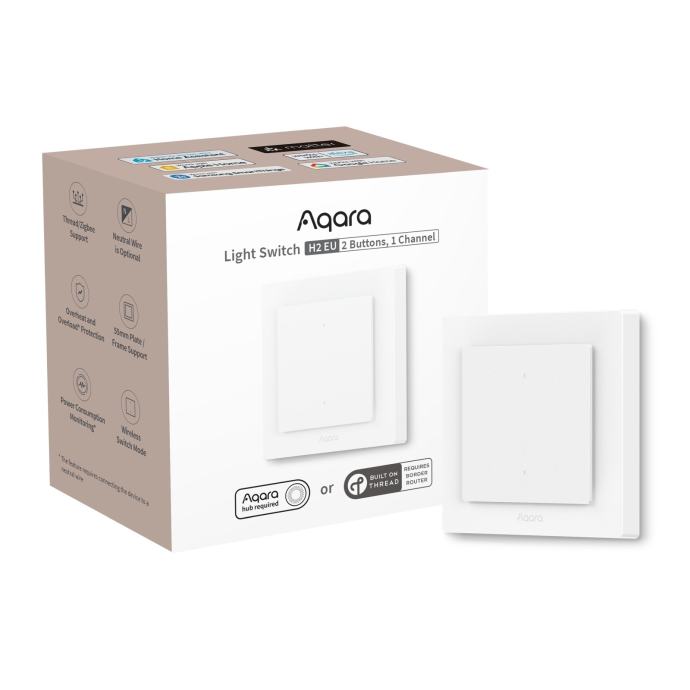

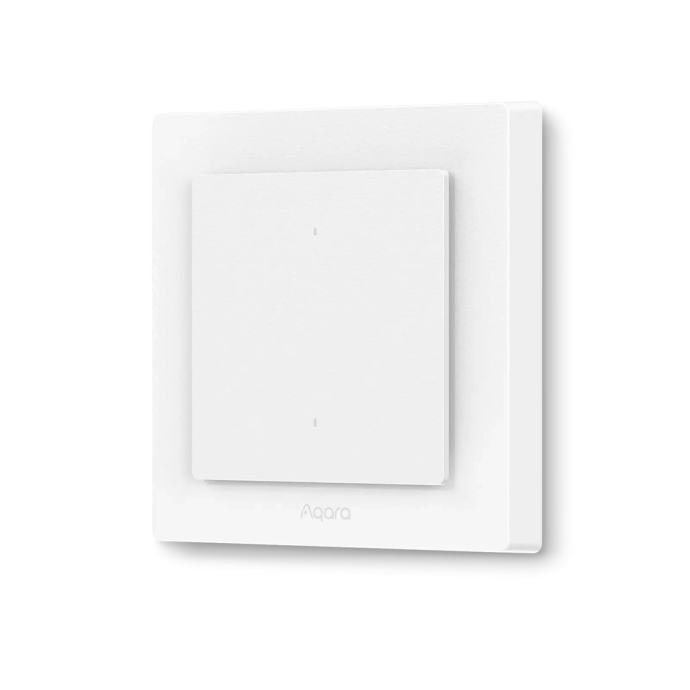

Aqara Smart H2 (WS -K07D) light switch, 2 buttons - 1 channel

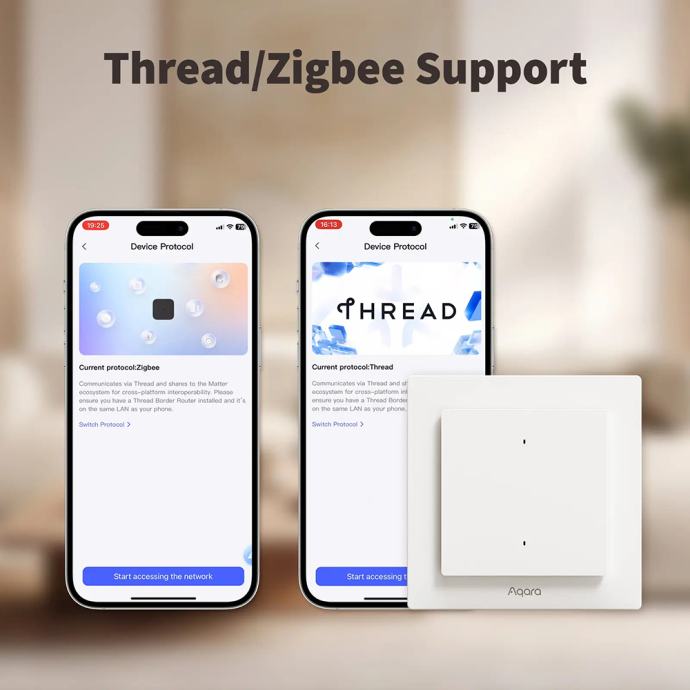

Thread/zigbee support for flexible connectivity
AQARARA LIGHT Switch H2 support Matter Over Thread to connect to third ecosystems and zigbee to integrate AQARARA Home. Users can choose between thread for broader compatibility or zigbee to access AQARAR features such as mars technology and LED lighting settings .

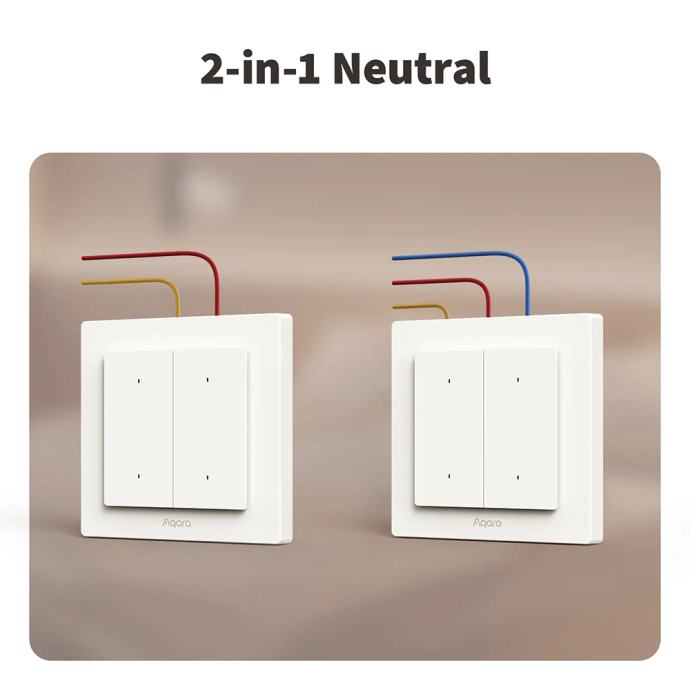

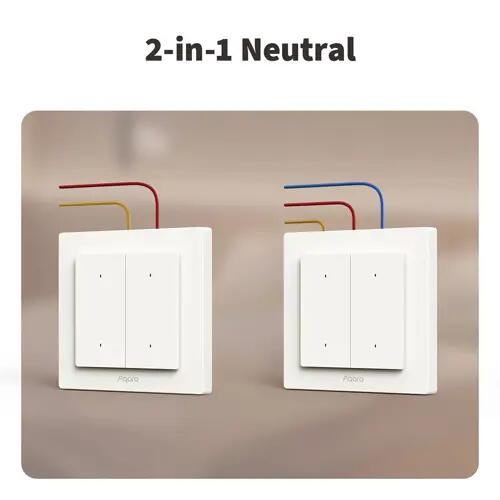

2-in-1 Design: Neutral and Breznevtral Wiring Support switch aqara light switch H2 EU supports both neutral as abysses wiring for easy installation.


Neutral connection provides advanced features such as overload protection, monitoring energy consumption and adjusting LED indicator .

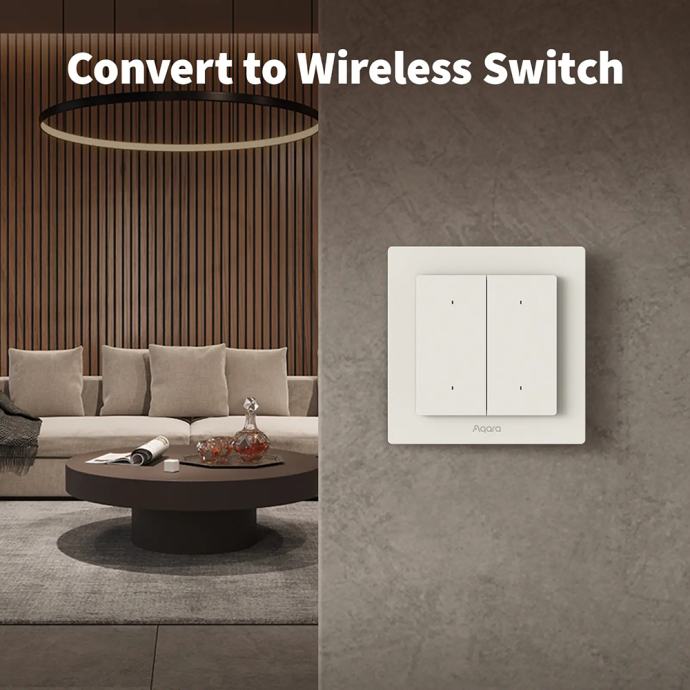

Convert to flexible automation switch Function converting to wireless switch allows the switch to remain with circuit, allowing effective stage automation and smart management .


only available in AQARARA HOME.


< /em>

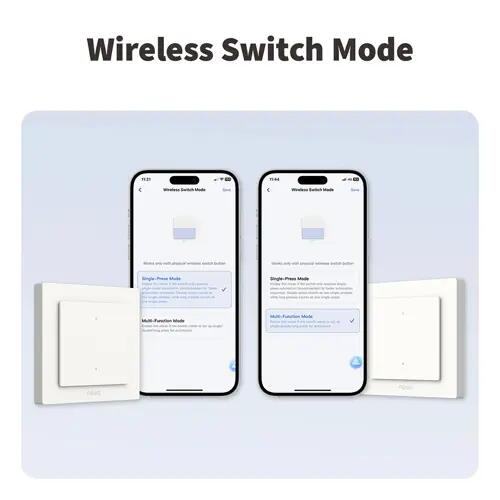

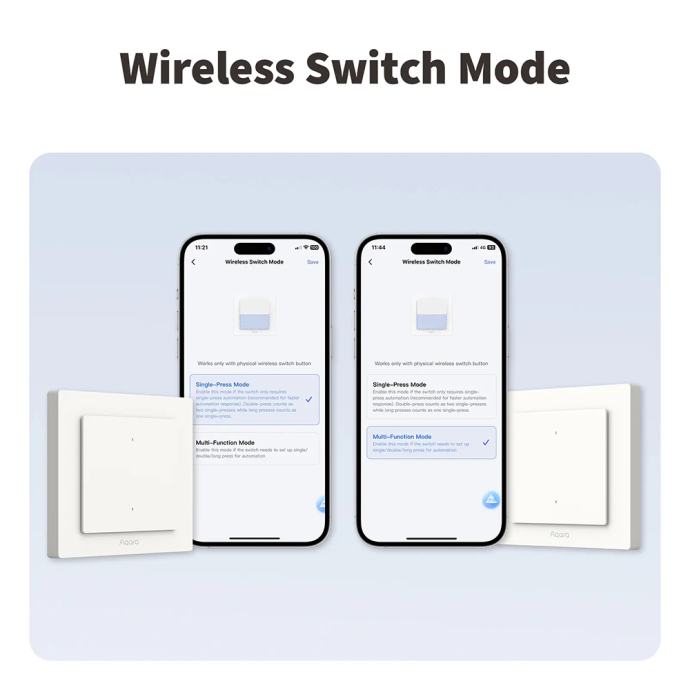

Wireless switch mode allows faultless automation wireless switch mode offers greater flexibility to automate the lower buttons, allowing users to choose between two options.


available only in AQARA HOME, support in third parties applications depends on OTA updates.




overheating If the switch detects fever , it will automatically turn off to prevent overheating. It also monitors electrical overload and automatically interrupt the power supply with dangerous values, protecting both the switch and connected devices.


monitoring energy consumption in real time


at neutral link allows to accurately monitor energy consumption and efficiency reports.


at abysses can manually enter load values ?? to monitor and manage energy consumption.




Mars-tech feature before Mars technology turned off the smart switch meant interrupting power and loss of connection to smart lights. With mars-tech lights always remain connected and ready for use .


available only in Aqara Home and works with Aqara smart lights.






Comparison of Thread and Zigbee mode for AQARARA Light Switch H2 EU


function thread mode (default) zigbee mode < /th>



suitable for
users who want to connect the device directly to third parties' systems.
owners AQARA HUBOV and AQARARA HOME users who want advanced features.


adding device
The device should be manually added to each ecosystem using a pairing code.
After connecting to Aqara Zigbee Hub, it will be automatically added to all third ecosystems.


Node support and ecosystem
Needed matter controller and thread Border Router (or 2-in-1 device such as HOMEPOD MINI, ECHO 4. Generation, Aqara M3, etc.).
Need aqara zigbee hub (it connects to third ecosystems via Aqara Hub, which acts as a bridge).


features
Basic matte function: - wireless switches - wiped on/off the switch - limited monitoring of energy consumption.
Basic Matter Functions + exclusive features in AQARARA HOME: - Wireless switches - wiring on/off switches - Monitoring energy consumption - mars tech - relay lock < /Strong> - Wireless switch mode - reverse indicator light




Thread mode is more suitable for those who want to directly link to third ecosystems.
zigbee mode is a better choice for users who want access to advanced features in AQARARA HOME, such as Mars Tech, advanced automation and better illumination administration.


technical details:

connectivity protocol: thread, bluetooth, zigbee
compatible platforms: aqara, Apple Home, Alexa, Google Home, Samsung SmartThings, Homey, Home Assistant
electrical specification: 200-240 VAC, 50/60 Hz, max. 8 A (resistance load)
minimum power: 5 W (without neutral), unlimited (with neutral)
product dimensions: 86 × 86 × 45 mm
working temperature: 0 ° C ~ 40 ° C
Operating humidity: 0 ~ 95 % Rh, no condensation

package contents:

"

Installation video: https://www.youtube.com/watch?v=A4-EKXHB8RC
manufacturer's website
