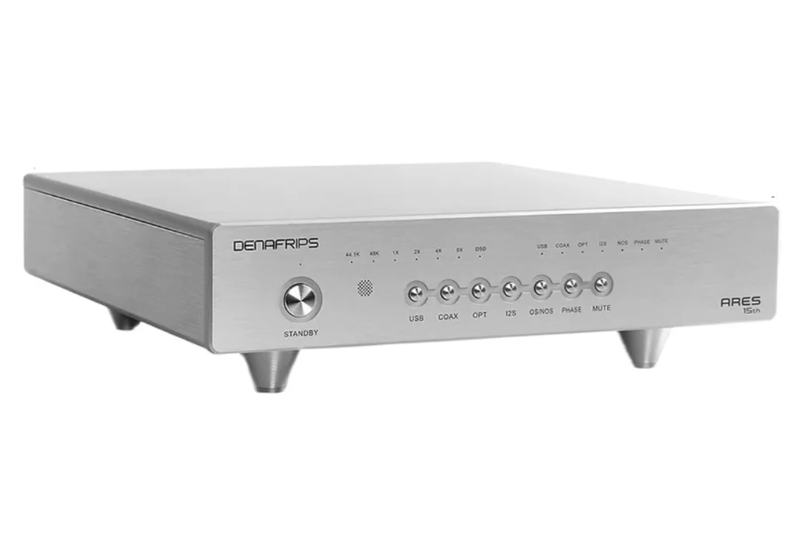

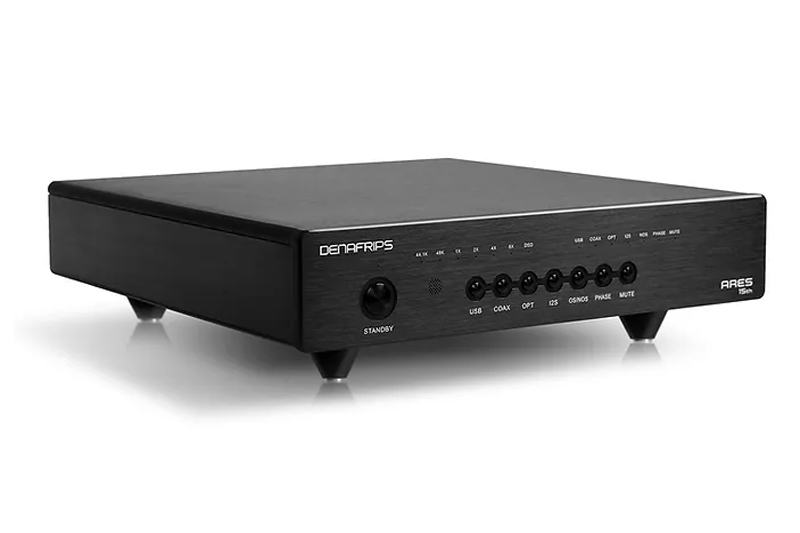

Denafrips Ares 15th R-2R DAC
- Cijena
- 1.650 €
Šifra oglasa: 45663207
Osnovne informacije
- Lokacija
- Grad Zagreb, Trnje, Vrbik
- Stanje
- novo
Opis oglasa
Key Features:
Proprietary DSD + R2R architecture
24bit R2R + 6 bit truly balanced DSD circuitry (32-stage FIR filters)
Low thermal effect, high precision resistors hand-matched to 0,01%.
Femtosecond oscillators at 45,1548 MHz and 49,152 MHz
Technical features:
Product Type NOS R2R Balanced DAC
Inputs 1x USB-B
1x I2S via HDMI
1x coaxial
1x Optical Toslink
Outputs 1x balanced stereo XLR
1x RCA stereo single ended
USB supported sampling rates: PCM up to 1536kHz, DSD up to DSD1024
I2S / Optical / Coaxial: PCM up to 24bit 192kHz, DSD DoP up to DSD64
Output level / RCA impedance: 2Vrms @ 625Ω
XLR : 4Vrms @ 1250Ω
Sampling mode Non-oversampling (NOS)
Oversampling (OS)
Slow Filters, Sharp
Frequency response 20Hz – 70kHz -3dB
THD:+N 0,004%
SNR: 115 dB
Dynamic range: > 119 dB.
Crosstalk: -124 dB.
General
Power supply voltage 100-240 VAC 50/60 Hz
Consumption ≤ 20 W
Black or silver color
Dimensions: 215 x 230 x 45 mm .
Weight 3,5 kg.
Proprietary DSD + R2R architecture
24bit R2R + 6 bit truly balanced DSD circuitry (32-stage FIR filters)
Low thermal effect, high precision resistors hand-matched to 0,01%.
Femtosecond oscillators at 45,1548 MHz and 49,152 MHz
Technical features:
Product Type NOS R2R Balanced DAC
Inputs 1x USB-B
1x I2S via HDMI
1x coaxial
1x Optical Toslink
Outputs 1x balanced stereo XLR
1x RCA stereo single ended
USB supported sampling rates: PCM up to 1536kHz, DSD up to DSD1024
I2S / Optical / Coaxial: PCM up to 24bit 192kHz, DSD DoP up to DSD64
Output level / RCA impedance: 2Vrms @ 625Ω
XLR : 4Vrms @ 1250Ω
Sampling mode Non-oversampling (NOS)
Oversampling (OS)
Slow Filters, Sharp
Frequency response 20Hz – 70kHz -3dB
THD:+N 0,004%
SNR: 115 dB
Dynamic range: > 119 dB.
Crosstalk: -124 dB.
General
Power supply voltage 100-240 VAC 50/60 Hz
Consumption ≤ 20 W
Black or silver color
Dimensions: 215 x 230 x 45 mm .
Weight 3,5 kg.
