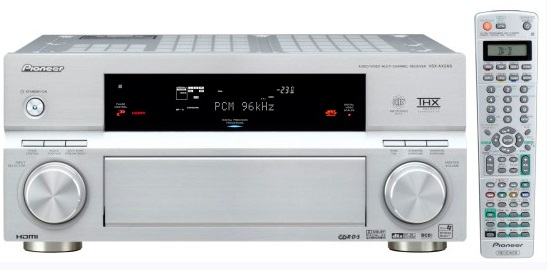

PIONEER VSX-AX2AV Receiver - top model

Prodajem PIONEER VSX-AX2AV Multi-Channel A/V Receiver, HDMI Interface, Video Scaling and Ready for iPod
stanje 10/10

Audio Features VSX-AX2AV-S
Standing Wave Control Yes
Phase Control Yes
AIR Studio Sound Tuning Yes
THX Surround EX Yes
Audio Scaler Yes
Digital Noise Reduction Yes
Midnight Listening Mode Yes
Bass/Treble Tone Controls Yes
Loudness Yes
Sound Delay 6 frame/0.1 frame step
Video Features VSX-AX2AV-S
Video Signal Selector Yes
Universal Video Converter Yes
Input (Sensitivity/Impedance) 1 V p-p / 75 Ohm
Frequency Response Component Video
(720p compatible) 5 Hz - 100 MHz
Remote Control VSX-AX2AV-S
Type LCD - Preset & Learning
Multi-Operation (Macro) Yes
Source Control DVD, Satellite tuner, MCD, DTV
Interface VSX-AX2AV-S
iPod® control OSD Yes
Function Rename Yes
Sleep Timer Yes
Main Features VSX-AX2AV-S
Output Power per Channel 170W
Impedance at Output Level 6 Ω
Number of Channels 7
Signal / Noise Ratio 92 / 65 dB
Input Connections 2 x HDMI, 1 x iPod, 7.1 x multi-channel, 7 x audio, 2 x coaxial, 5 x optical, 3 x RCA audio, 7 x RCA a/v, 5 x S-Video, 3 x component, 1 x iPod connection
Output Connections 1 x HDMI, 1 x audio, 2 AV + 1V, 2 x S-video, 1 x optical, 1 x component, pre-amp (all 7.1 ch.)
Tuner Pre-set Stations 30
HDMI Yes
THX Certified Yes
MCACC Yes
Power Consumption (in use / standby) 460W / 0.52W
Weight 16 kg
Surround Sound Formats VSX-AX2AV-S
Dolby Digital Yes
Dolby Digital EX Yes
Dolby Pro Logic Yes
Dolby Pro Logic II Yes
Dolby Pro Logic IIx Yes
DTS Yes
DTS-ES Matrix 6.1 Yes
DTS Neo: 6 Yes
DTS 96/24 Yes
WMA 9 Pro Yes
Surround Modes 6 + 1
Power Output VSX-AX2AV-S
Power output per channel 140W
Condition DIN, 1kHz, 1%, 8 Ω
Rated Power Output 140W + 140W
Input (Sensitivity/Imp.): LINE 335 mV / 47 kOhm
Frequency Response: LINE 5 - 100 000 Hz, +0 / -3 dB
Signal-to-Noise Ratio: LINE (DIN) 92 / 65 dB
Power Requirements AC 220 - 240 V, 50/60 Hz
Construction VSX-AX2AV-S
Symmetrical Power Train Design Yes
3-D Space Frame Yes
Dimensions (W x H x D) 420 x 187 x 462 mm
Amplifier Specifications VSX-AX2AV-S
DSP design Advanced Twin Digital Core Engine
Digital Signal Processor SHARC EX 32-bit Floating-point with Motorola 180 MIPS New Engine - 48-bit digital processor
D/A Converter 192 kHZ/24-Bit
A/D Converter 96 kHz/24-Bit (2-channel)
Tuner Specifications VSX-AX2AV-S
Radio Data System (RDS) Yes
Random Preset Stations 30
Usable Sensitivity (Mono) 15,2 dBf, IHF (1,6 µV / 75 Ohm)
Sensitivity Mono 1,1 µV
Sensitivity Stereo 50 µV
Signal-to-Noise Ratio Mono (DIN) 62 dB
Signal-to-Noise Ratio Stereo (DIN) 58 dB
Stereo Separation at 1 kHz 40 dB
Input & Output connections VSX-AX2AV-S
HDMI Input/Output 2/1
iPod® Yes
Multi-Channel Input 7.1 ch
IR In/Out Yes
Digital Audio Input 7 (assign)
Digital Coaxial Input 2
Digital Optical Input 5 (includes Front In)
Digital Audio Output (Optical) 1 (Rec Out/Room3)
RCA Audio/Video Inputs 3 A / 7 AV
Audio/Video Output 1 A / 2 AV + 1 V
Phono Input Yes
S-Video Input/Output 5/2 (includes Front In, assignable)
Component Video Input/Output 3/1 (assignable)
Composite Input/Output 7/4
Pre-amp Output Yes, All (7.1 ch)
A/V Input on Front Yes
Speaker A/B Versatile speaker configuration
Bi-Amplifier Yes
