Siemens S7-200 PLC Training Kit

Siemens S7-200 PLC Training Kit je odličan za početnike koji žele savladati znanje o PLC-ima.

Molim zvati popodne ili navečer!

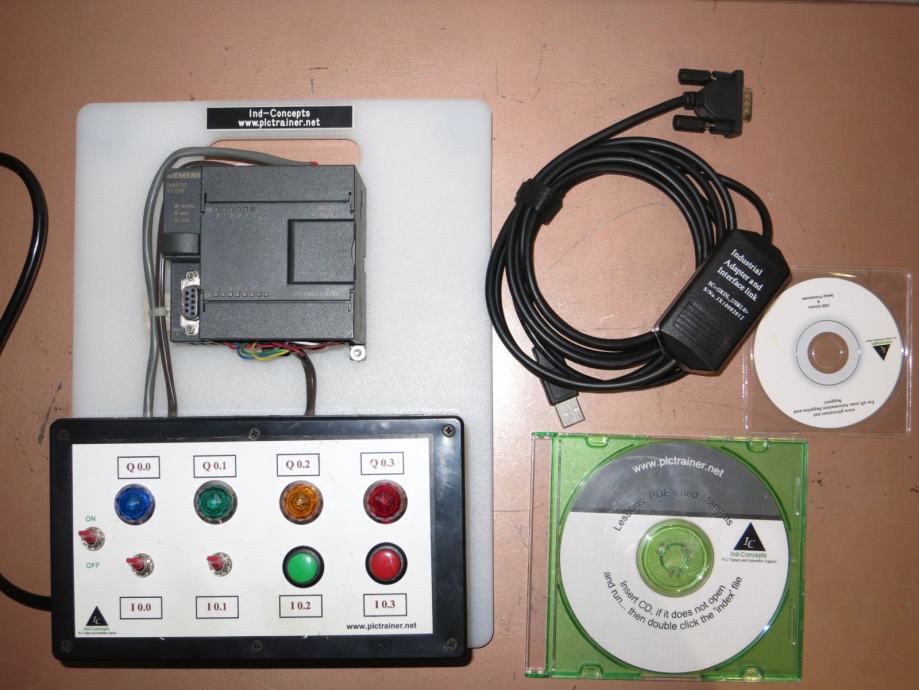

Sadrži sljedeće:

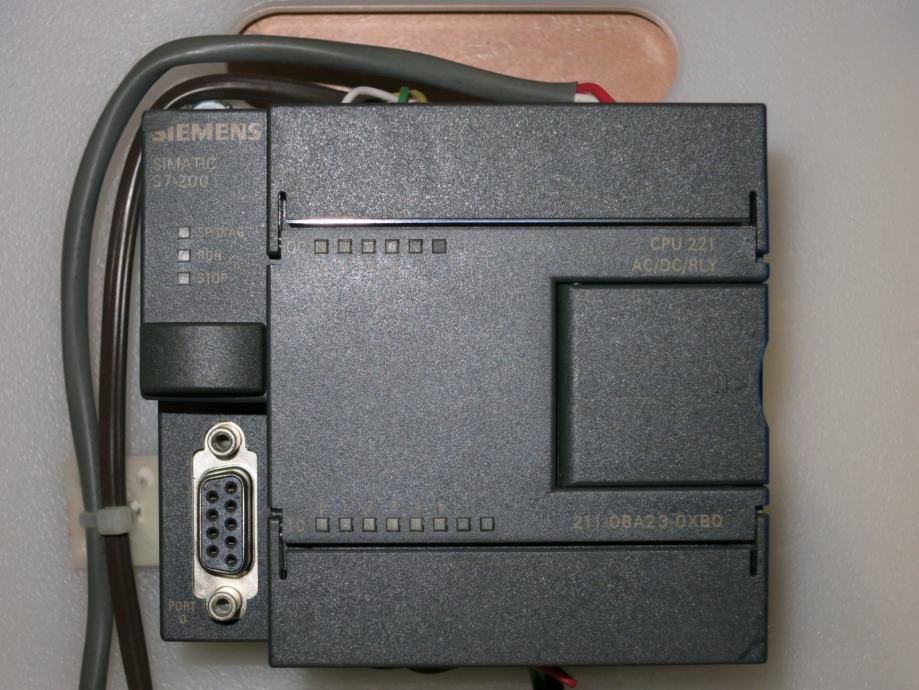

- Siemens S7-200 PLC (CPU 221, 221-OBA23-OXBO)

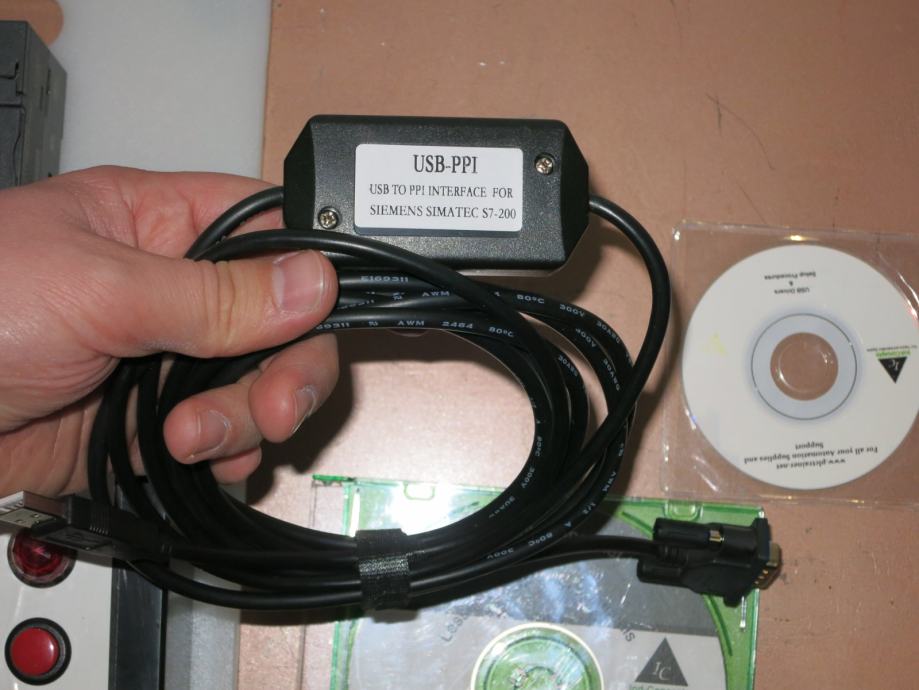

- USB Kabel
- CD sa driverima
- CD sa lekcijama
- Isprintane lekcije

PLC je kupljen pred 2 godine sa stranice:
http://www.plccable.com/siemens-s7-200-plc-trainer-cable-no-software-lessons/

Product Description
This is the perfect low cost trainer, great for students or company's that want to bring there employees up to speed on PLC controls, its a complete package rolled into one.

This is an Siemens S7 200 PLC with everything you need to start programming. The software is NOT included with this trainer (only lessons)

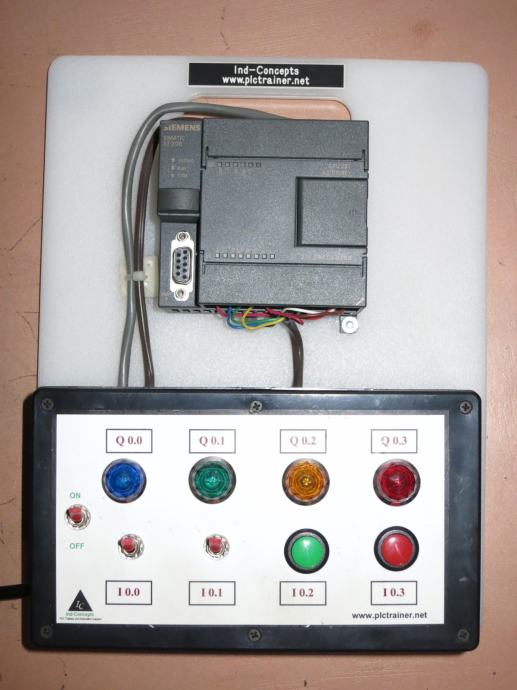

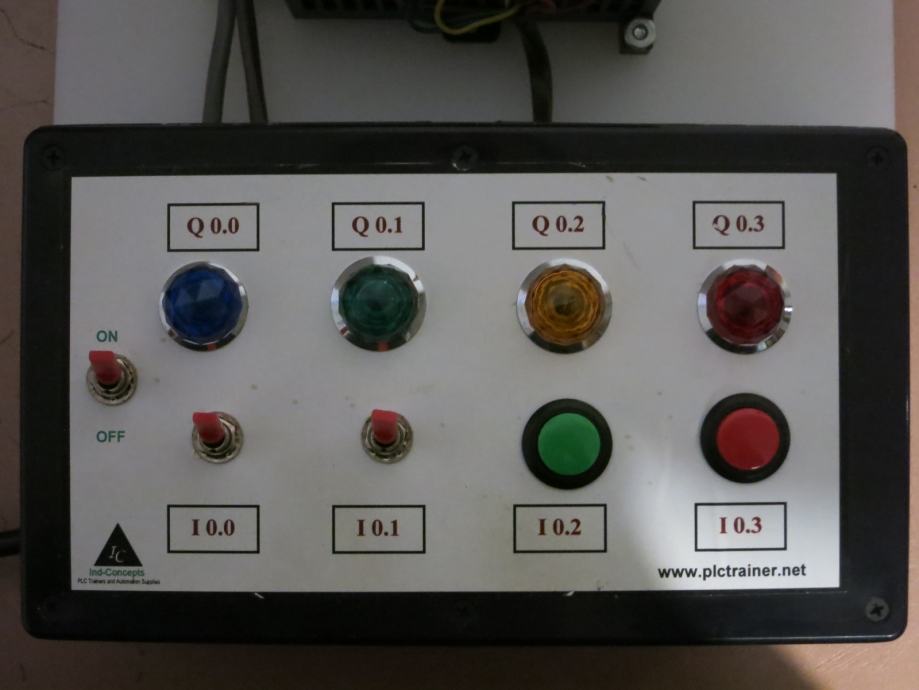

Includes 1 PLC, 4 discrete inputs and 4 discrete outputs, power switch, USB/Serial programming cable, this trainer runs on 110VAC or 220VAC, you will need an adapter in some countries but these are common and can be found on eBay.

All wired up and ready to go, just plug in and start programming. The plc trainers are a small investment in your future. Along with some training (self taught) you can make a very good living for yourself and your family and have a fun exciting career.

And includes lessons...

This is a series of lessons that is for the beginner programmer just learning how to program and the seasoned engineer that is looking to improve their skills, we are covering everything from simple pointers to advanced moves and data manipulation.

We are trying to teach you something you can not get in a manuals, the manuals are great and you should read them, but what we are teaching you will not get out of a manual, we are trying to mimic the machines that you will be working on or building, this is where the real value of the lessons are... you will have a understanding on why and how the logic is working and you will be able to come up with your own logic in no time at all.

With over a total of 50pages (pdf) on just the lessons and 4 .mwp programs this will give you the knowledge that you need to get started and continue in the future.

The lessons

1) Basic intro: Download, go online, viewing program, making a simple program

2) Basic intro: Instructions, Split Screen, Program Tree, Key features, Processor Status

3) PLC Cycle Scan's: How the PLC's looks at the logic and decides what needs to happen next, this is important if you plan on any 'automation', this is over looked by many and they have a hard time understanding the full concept of programming, the PLC’s don’t change their mind… its always the same so once you learn how to read their mind you can tell what its going to do next.

4) Recording actions with a PLC: In this lesson we will cover on how to record and play back (in sequence) an event or series of actions (inputs) then play them back as outputs, we will be recording up to 20 inputs… if you are old enough you can remember the old game Simon Says, this is similar to that by randomly pushing the buttons/inputs then switching to the play back mode the PLC plays back the buttons you just pushed then the same sequence you pushed them.

5) Grinder: This lesson simulates a grinding machine by running a table up and down and into the grinder (resurfacing grinder) it will run in automatic if the correct conditions are made.

(6) Parts conveyer: (Timers, Counters, Moves, Sequence Loads, Data Viewing), Learn how to track a part that is moving down a production line or conveyor, by tracking parts you can determine when to remove a rejected part, speed up or slow down line speed, run the program/machine in manual or automatic.

7) Peak HMI: Human Machine Interface), Using a demo version of Peak HMI you will learn how an HMI interfaces with the PLC and is controlled by your PC, HMI’s are becoming a large part of any manufacturing/production plants, learning this is a bit more advanced but this is a MUST for any system integrator or plant maintenance personal, this is the next level… we are working on this one, when it is finished you will receive it along with instructions on how to download and setup the HMI
