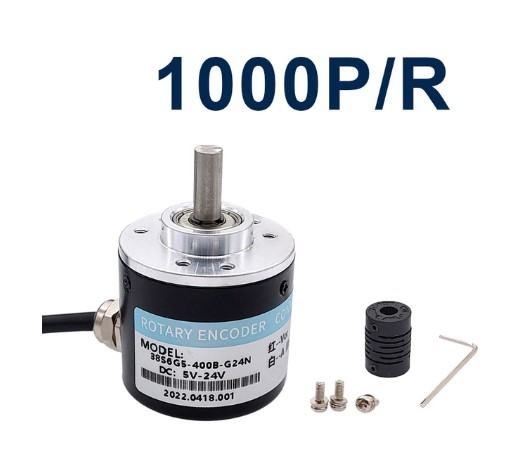

Rotacioni enkoder 1000pulsa 5-24V NPN AB two-way do 1000RPM

Rotacioni enkoder, rotary encoder 1000 pulsa. Namjene za mjerenje duljine ili pozicije na strojevima.
Može raditi u kombinaciji s npr. brojačem Mypin FH8-6CRNB kojeg isto tako imam u ponudi
Detaljne specifikacije dolje u tekstu.


Slanje robe je na trošak kupca dostavom po izboru
trošak je 1EUR običnom poštom i avansno plaćanje na račun
2EUR za preporučeno slanje poštom i avansno plaćanje na račun
oko 4,5EUR za preporučeno slanje i plaćanje pouzećem
Moguće slanje Oversease i GLS dostavom, trošak dostave je od 4,65 do 7,3EUR

U ponudi imam i druge modele timera, brojača, termostata, releja, grijača, prekidača i razne druge elektro opreme.

Description:
Model: 1000P / R incremental rotary encoder, AB two-phase. Can identify the direction of the count pulse signal generated by the rotation of the grating disc and optocoupler.
Performance:
400 pulses per revolution.
Working voltage :5-24V,
maximum mechanical speed of 1000 rev / minute Dimensions: the encoder body size: | Õ 38mm; shaft Ø6 x 13mm; axis platform: high-5mm Ø 20 mm; fixing holes: M3 screws, three mounting holes round of 30, three mounting holes in round 28; side of the outlet.
Output: the output circuit NPN open collector output type; pulse of A, B two-way;
Wiring: Vcc positive supply, 0V to A-phase, B-phase, shielded cable.
Note: AB two-phase outputs must not be connected directly to the power supply VCC, otherwise, they will burn the output transistor.

VCC .............RED
0V..................BLACK
A ...................YELLOW
B ...................GREEN
F.G ...............shielding
