Ispravljač Graetz Grec 200A 1600V TROFAZNI diodni most MDS200A1600V

Grecov spoj velike snage model MDQ200A-1600V za razne namjene npr. generatore, punjače baterija viličara itd...

Grecov spoj MDS200A je cijene 39,00 eur

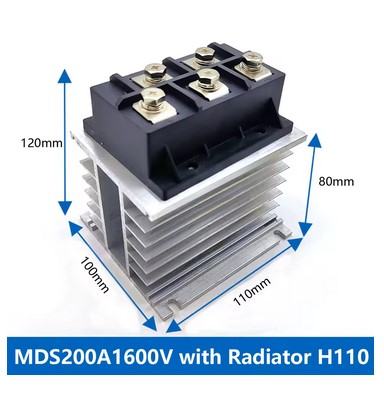

Grecov spoj MDS200A + hladilo H110 je cijene 75,00 eur


šaljem dostavom po želji o trošku kupca ili osobno preuzimanje
ako se šalje običnom poštom uz avansno plaćanje na račun poštarina je 1-2 eur
ako se šalje preporučenom poštom uz avansno plaćanje na račun poštarina je 3,12 eur
Ako se šalje preporučenom poštom+ plaćanje pouzećem cijena slanja je cca 5,3 eur
Dostava Overseas ili GLS dostavom 6-9 eur


U ponudi imam i razne druge modele timera, brojača, termostata, releja, grijača, prekidača i razne druge elektro opreme.


Specification:

Specification:
Product Name Rectifier Module
Model MDs200A-1600V
Max. Average Forward Current 200A
Max. Working Peak Reverse Voltage AC 2000V
Terminals 5
Mount Hole Size

5.5mm/ 0.2"(Diameter)

10 x 5mm/ 0.4" x 0.2"(L*W)
Mount Hole Center Distance 60 x 50mm/ 2.4" x 2"(L*W)
Total Size 94 x 73 x 40mm/ 3.7" x 2.9" x 1.6" (L*W*H)
Material Metal, Plastic
Color Black, Silver Tone
Net Weight 394g
Package Content


Power Diode Module MDS-200A is designed for three phase full wave rectification, which has six diodes connected in a three phase bridge configuration.
Output DC current is 200Amp
Repetitive peak reverse voltage is up to 1,600V.

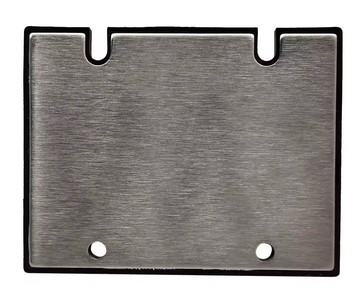

Isolated mounting base, High reliability by unique glass passivation.
Applications: AC, DC Motor Drive/AVR/Switching -for three phase rectification.
