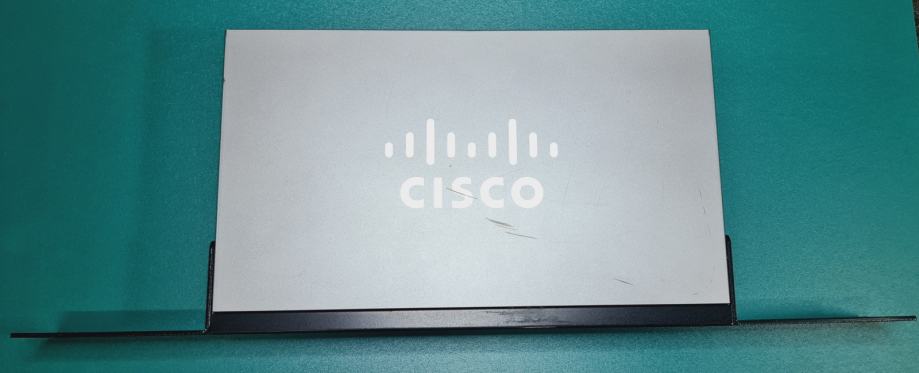

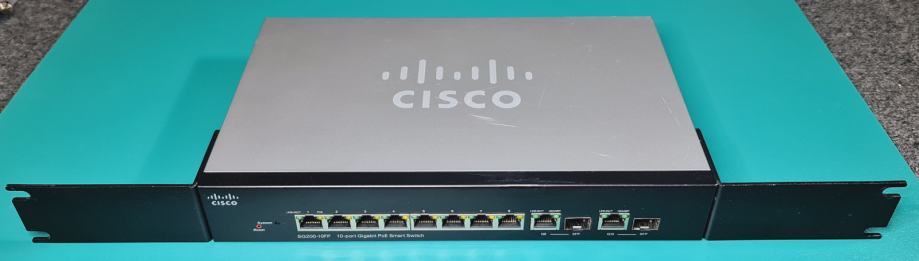

CISCO SG200-10FP (10-portnin PoE ROUTER-SWITCH)

Rabljeni 10-portni PoE router-switch

SG200-10FP Datasheet

Product ID SG200-10FP

Device Type Switch - 10 ports
Enclosure Type Rack-mountable
Ports 8 x 10/100/1000 + 2 x combo Gigabit SFP
Power Over Ethernet (PoE) PoE
Performance Switching capacity : 20 Gbps : Forwarding performance (64-byte packet size) :
14.88 Mpps
MAC Address Table Size 8000 entries
Jumbo Frame Support Yes
Remote Management Protocol SNMP, RMON, HTTP, TFTP
Encryption Algorithm MD5
Authentication Method RADIUS
Features
Layer 2 switching, DHCP support, BOOTP support, VLAN support, IGMP snooping,
Syslog support, port mirroring, DiffServ support, Weighted Round Robin (WRR)
queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast
Storm Control, SNTP support, STP support, RSTP, TFTP support, QoS, Jumbo
Frames support, MLD snooping, SNMP, RMON, SNTP, Cisco Discovery Protocol,
Auto SmartPorts
Compliant Standards IEEE 802.3, 802.3u, 802.3z, 802.1D, 802.1Q, 802.3ab, 802.1p, 802.3x, 802.3ad
(LACP), 802.1x, 802.1w RSTP, 802.3af PoE
RAM 128 MB
Flash Memory 16 MB
Status Indicators Link activity, port transmission speed, system, PoE
Expansion and Connectivity
Interfaces 8 x 10BASE-T/100BASE-TX/1000BASE-T - RJ-45 - PoE | 2 x 10BASE-T/100BASE-
TX/1000BASE-T - RJ-45 | 2 x SFP (mini-GBIC)

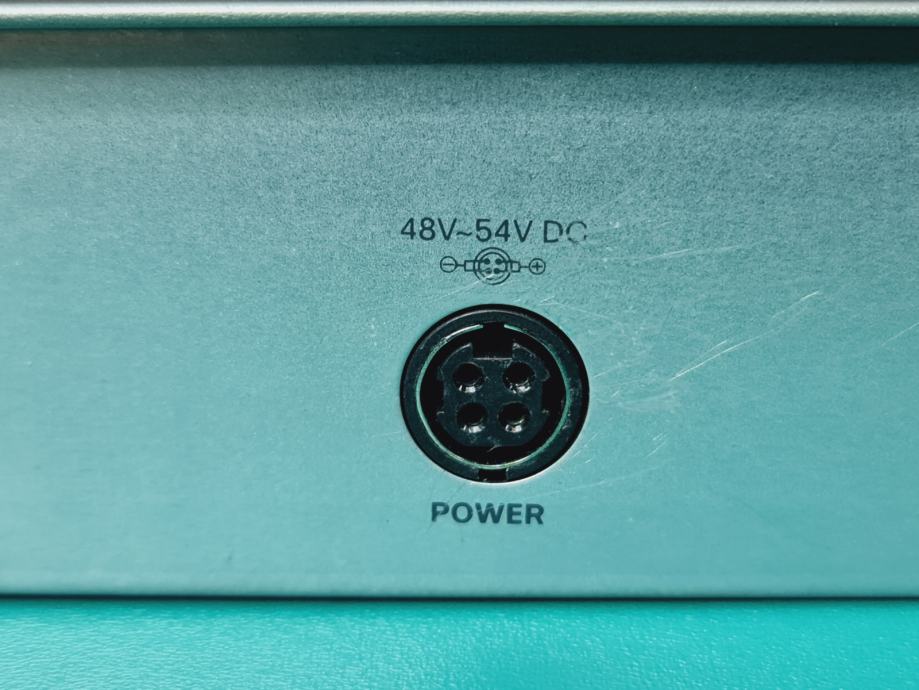

Power
Power Device Power supply - internal

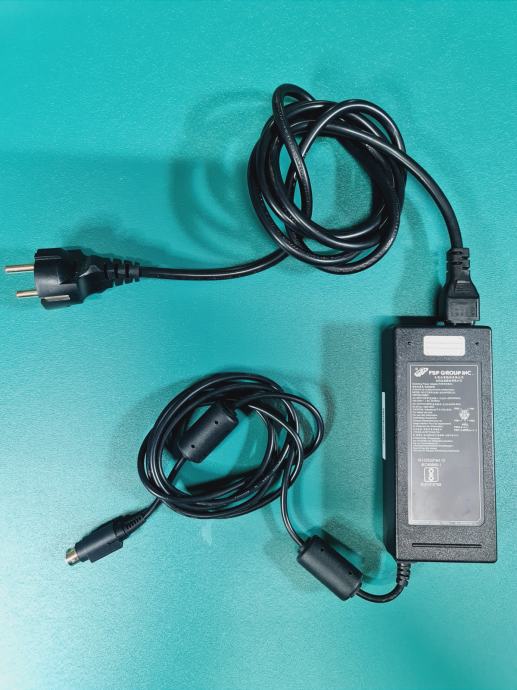

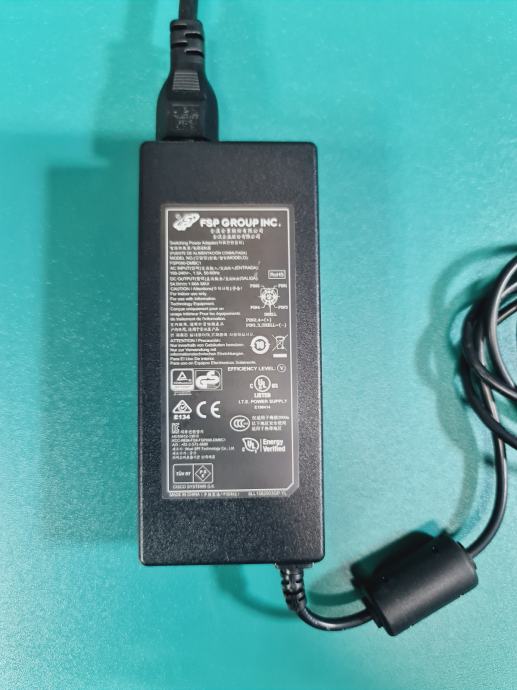

Voltage Required Power adapter - external
Miscellaneous
Width 11 in
Depth 6.7 in
Height 1.5 in
Weight 8.7 lbs
Mounting Kit 2.7 lbs
MTBF 67,009 hour(s)
Compliant Standards UL 60950, FCC Part 15 A, CSA 22.2
Localization Chinese (simplified), English, German, French, Italian, Spanish
Manufacturer Warranty
Service & Support Limited lifetime warranty
Service & Support Details Limited warranty - lifetime : Technical support - web support - 1 year ¦ Technical
support - phone consulting - 1 year
Environmental Parameters
Min Operating Temperature 32 ° F
Max Operating Temperature 104 ° F
Humidity Range Operating 10 - 90% (non-condensing)
Min Storage Temperature -4 ° F
Max Storage Temperature 158 ° F
Humidity Range Storage 10 - 90% (non-condensing)
Get More Information
Do you have any question about the Cisco SG200-10FP?
Contact us now via Live Chat or sales@router-switch.com.
Specification
SG200-10FP Specification
Device Type Switch - 10 ports
Enclosure Type Rack-mountable
Ports 8 x 10/100/1000 + 2 x combo Gigabit SFP
Power Over Ethernet (PoE) PoE
Performance Switching capacity : 20 Gbps : Forwarding performance (64-byte packet size) :
14.88 Mpps
MAC Address Table Size 8000 entries
Jumbo Frame Support Yes
Remote Management Protocol SNMP, RMON, HTTP, TFTP
Encryption Algorithm MD5
Authentication Method RADIUS
Features
Layer 2 switching, DHCP support, BOOTP support, VLAN support, IGMP snooping,
Syslog support, port mirroring, DiffServ support, Weighted Round Robin (WRR)
queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast
Storm Control, SNTP support, STP support, RSTP, TFTP support, QoS, Jumbo
Frames support, MLD snooping, SNMP, RMON, SNTP, Cisco Discovery Protocol,
Auto SmartPorts
Compliant Standards IEEE 802.3, 802.3u, 802.3z, 802.1D, 802.1Q, 802.3ab, 802.1p, 802.3x, 802.3ad
(LACP), 802.1x, 802.1w RSTP, 802.3af PoE
RAM 128 MB
Flash Memory 16 MB
Status Indicators Link activity, port transmission speed, system, PoE
Expansion and Connectivity
Interfaces 8 x 10BASE-T/100BASE-TX/1000BASE-T - RJ-45 - PoE | 2 x 10BASE-T/100BASE-
TX/1000BASE-T - RJ-45 | 2 x SFP (mini-GBIC)
Power
Power Device Power supply - internal
Voltage Required Power adapter - external
Miscellaneous
Width 11 in
Depth 6.7 in
Height 1.5 in
Weight 8.7 lbs
Mounting Kit 2.7 lbs
MTBF 67,009 hour(s)
Compliant Standards UL 60950, FCC Part 15 A, CSA 22.2
Localization Chinese (simplified), English, German, French, Italian, Spanish
