Cisco Catalyst 2960 Series SI poe-48 WS-C2960-48PC 48-Port Net Switch

Cisco Catalyst 2960S 10G SFP+ Switch WS-C2960S-48TD-L

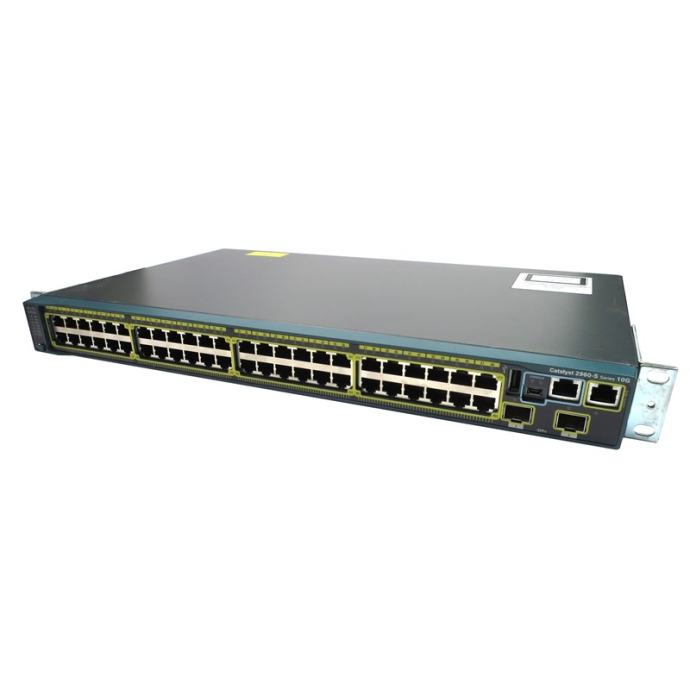

The Cisco Catalyst 2960-S Series Switches WS-C2960S-48TD-L, similar to WS-C2960S-24TD-L
but has twice ports to 48 Ethernet 10/100/1000 ports. Its 2 Ten Gigabit Ethernet SFP+ or 2 One
Gigabit Ethernet SFP dual-purpose uplinks, with each dual-purpose uplink port has one port active
at a time, for Gigabit Ethernet uplink flexibility, allowing use of either a copper or fiber uplink is also
the distinctive function of this model, as excellent as WS-C2960S-24TD-L.

Specification


Device Type Switch - 48 ports - Managed

Enclosure Type Rack-mountable - 1U

Ports 48 x 10/100/1000 + 2 x 10 Gigabit SFP+

Power Over Ethernet (PoE) Yes

Performance Switching capacity : 176 Gbps
Forwarding performance (64-byte packet size) : 101.2 Mpps

MAC Address Table Size 8K entries

Remote Management Protocol SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH

Encryption Algorithm SSL

Authentication Method Secure Shell (SSH), RADIUS, TACACS+

Features

Layer 2 switching, auto-sensing per device, dynamic IP address assignment , auto-negotiation, BOOTP support, ARP support, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Link Aggregation Control Protocol (LACP), Port Security, MAC Address Notification, Remote Switch Port Analyzer (RSPAN)

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP)

RAM 128 MB

Flash Memory 64 MB Flash

Status Indicators Port status, link activity, port transmission speed, port duplex mode, power, system
