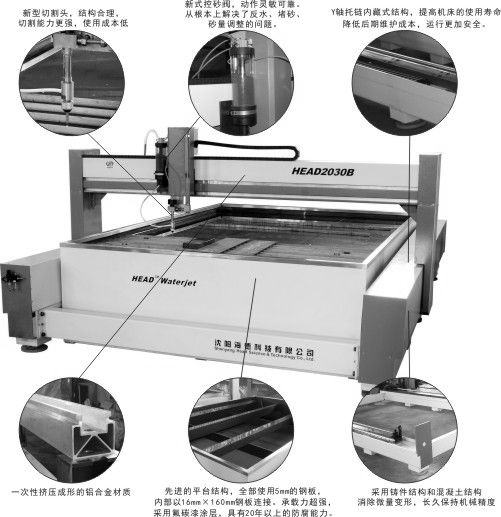

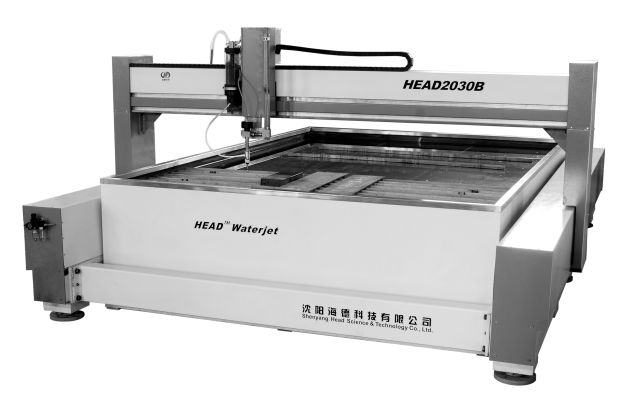

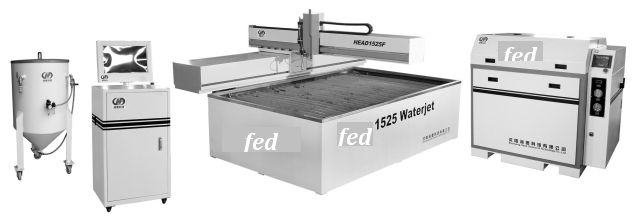

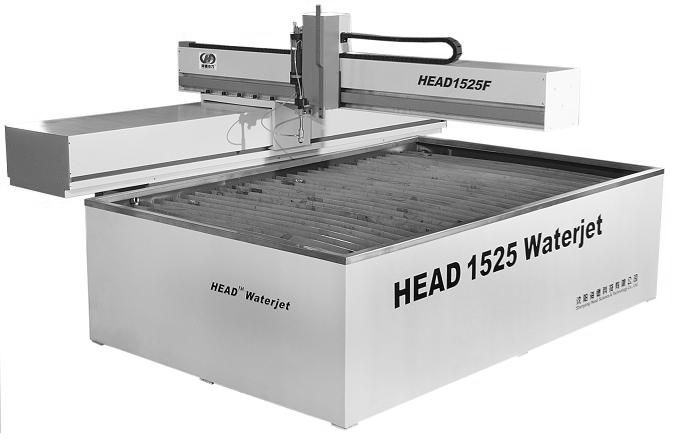

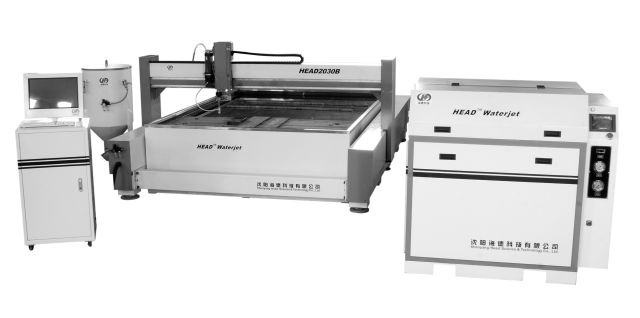

CNC za rezanje vodom pod tlakom 3000 Bara

CNC vodeni rezač (water cutter) najnovija svjetska tehnologija rezanja vodom pod pritiskom od 300 Mpa

ili 3000 Bara bez iskrzanih rubova bez tragova paljevine (laser) posebno pogodan za rezanje termo labilnih

elemenata i čeličnih ploča kamena i sl.

Samo neke od karakteristika:

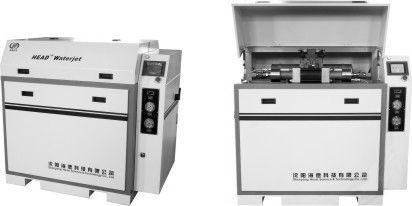

Master Technical Parameters
Item Parameters

Model HD-300 / HD-380 / HD-A420
Brand IWP, America
Method of Direction Regulation Electronic Direction Regulation
Pressure Range 50-420MPA
Maximum Flow of Hydraulic Pump 90L/min
Maximum Discharge Capacity 3.7L/min
Maximum Diameter of Gem Nozzle 0.3mm
Power of Master Motor 18.5KW(25Hp)-37KW(50Hp)
Power Source 380V/50HZ
Industrial Touch Screen 7-inch Touch Screen, Man-machine Interface
Indicate Working Conditions & Error Information

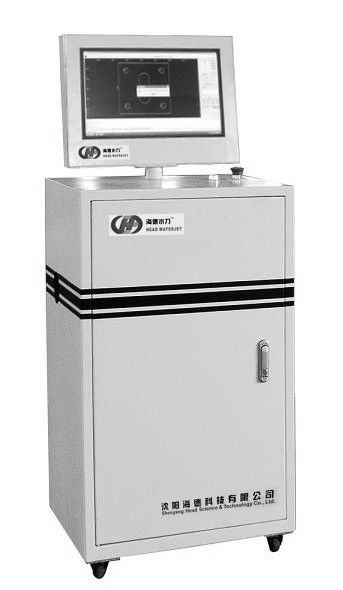

Item Parameters
Control Method CNC
Display Size 19inch LCD
Model of Cutting Text DXF
Model of Computer Industrial Control Computer
Operating System Windows XP
PLC OMRON
Software Characteristics Automatic computation for cutting tool compensation &
cutting parameters database for normal materials

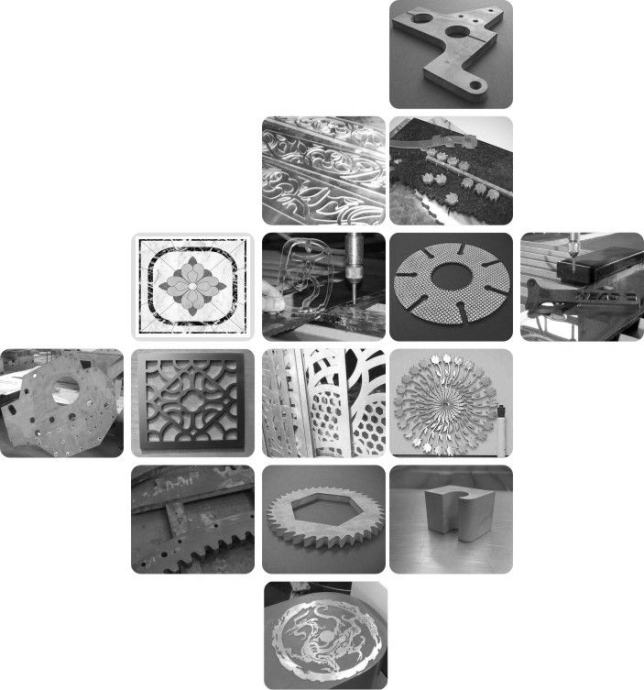

materijal i debljina brzna rezanja mm u minuti pod pritiskom
u mm od 300Mpa i od 380 Mpa

Normal Glass6 1100-1200 1400-1500
10 480-600 690-800
19 290-350 400-500
Granite Pane20 200-250 260-300
30 120-150 170-200
Porcelain Tile10 610-700 900-1000
Marble Panel10 500-700 600-900
20 260-300 350-400
30 170-200 260-300
Laminating Glass21 310-400 490-600
Sponge & Foam20 4000-5000 6000-7000
50 1500-2000 2600-3000
80 1300-1500 1600-2000
Steel Plate 10 150-180 170-220
20 55-80 75-100
30 13-20 15-30
Stainless Steel Plate1 700-900 1000-1200
3 300-400 500-600
6 180-220 240-300
10 80-100 150-180
16 70-85 85-100
20 50-60 70-80
30 20-25 30-40
Copper Plate3 850-1000 1350-1500
5 360-500 700-850
20 80-100 160-200
30 50-60 100-120
Titanium Alloy13 50-60 100-115


Za ostale karakteristike molimo obratite se na mail: vlado@fedgrupa.hr
