ECS Z77H2-A3, Z77 , Socket 1155 , novo, 36mj. garancija

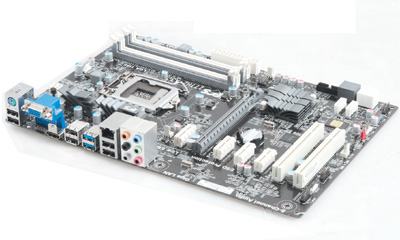

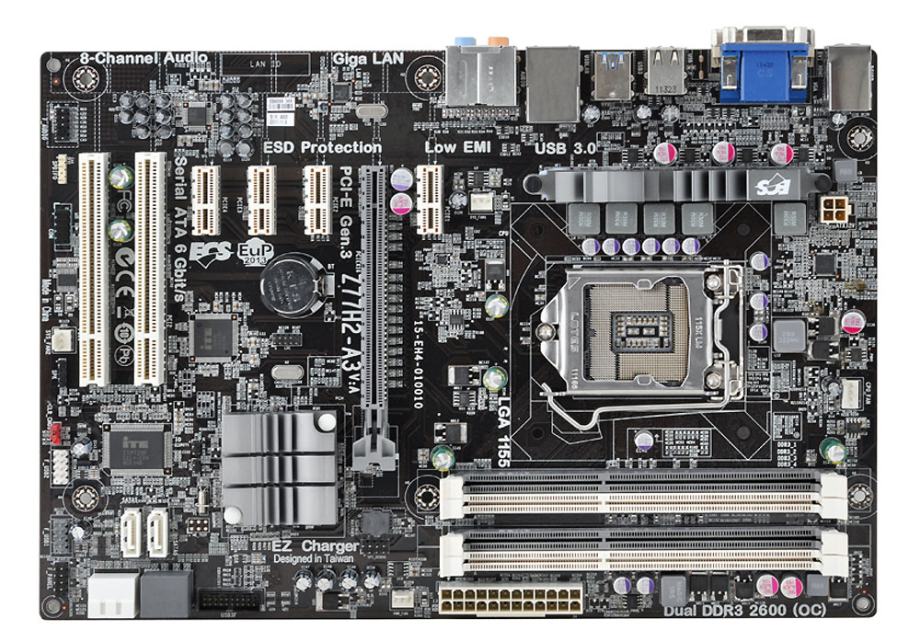

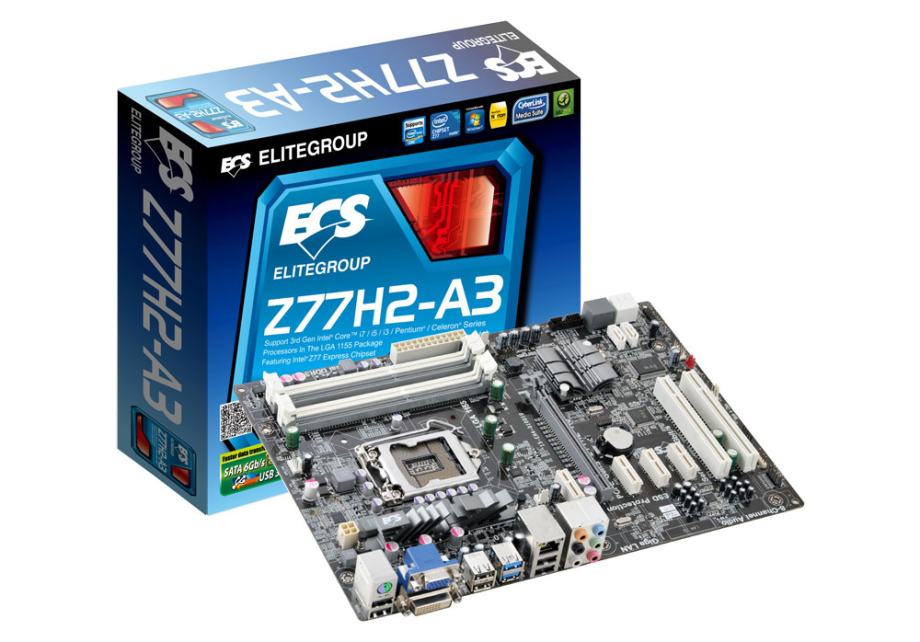

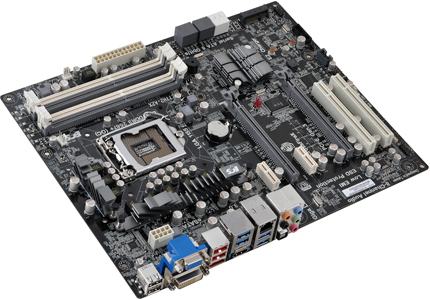

Prodajem novu zapakiranu ECS Z77H2-A3 matičnu

CPU º LGA1155 socket for new 2nd & 3rd Generation Intel® Core™ Family/ Pentium® /Celeron® Processors
º DMI 5.0GT/s

CHIPSET º Intel® Z77 Express Chipset

GRAPHICS º Integrated DirectX 11 graphics processor

MEMORY º Dual-channel DDR3 memory architecture
º 4 x 240-pin DDR3 DIMM socket support up to 32 GB
º Support DDR3 up to 2800(OC)/2600(OC)/2400(OC)/2133(OC)/1800(OC)/1600 DDR3 SDRAM
Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS.
For Windows® 64-bit OS with 64-bit CPU, there is no such limitation

EXPANSION SLOT º 1 x PCI Express x16 Gen3.0 slot
º 4 x PCI Express x1 slot
º 2 x PCI slots

STORAGE º Support by Intel® Z77
• 4 x Serial ATA 3.0Gb/s devices
• 2 x Serial ATA 6.0Gb/s devices
• RAID0, RAID1, RAID5, RAID 10 configuration

AUDIO º Realtek ALC892 8-Ch High Definition audio CODEC
º Compliant with HD audio specification

LAN º RealTek RTL 8111E Gigabit Lan

REAR PANEL I/O º 2 x USB 3.0 Ports
º 6 x USB 2.0 ports
º 1 x D-sub(VGA)
º 1 x DVI Port
º 1 x HDMI Port(Optional)
º 1 x RJ45 LAN connector
º 1 x Audio port 8 CH 6 JACKS

INTERNAL I/O CONNECTORS & HEADERS
º 1 x 24-pin ATX Power Supply connector
º 1 x 4-pin ATX Power Supply Connector
º 1 x 4-pin CPU_FAN connector
º 2 x 3-pin SYS_FAN connector
º 1 x 3-pin PWR_FAN connector
º 2 x USB 2.0 headers support additional 4 USB ports(Gray One support EZ Charger)
º 1 x USB 3.0 header supports additional 2 USB 3.0 Ports
º 4 x SATA 3Gb/s connectors
º 2 x SATA 6Gb/s connectors
º 1 x COM header
º 1 x Case Open header
º 1 x SPDIF out header
º 1 x Front panel switch/LED header
º 1 x Front panel audio header
º 1 x Clear CMOS header

SYSTEM BIOS º AMI BIOS with 64Mb SPI Flash ROM
º Supports Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
º Audio, LAN, can be disabled in BIOS
º F7 hot key for boot up devices option
º Supports Page Up clear CMOS Hotkey
º Support over-clocking
º Supports ECS M.I.B III Utility
º Support EZ Charger
º Supports eDLU
º Supports eSF
º Supports eBLU
º Support eOC

FORM FACTOR º ATX Size, 305mm*210mm
------------------------------------------------------------------------------
Zagreb osobno preuzimanje ostatak po dogovoru
