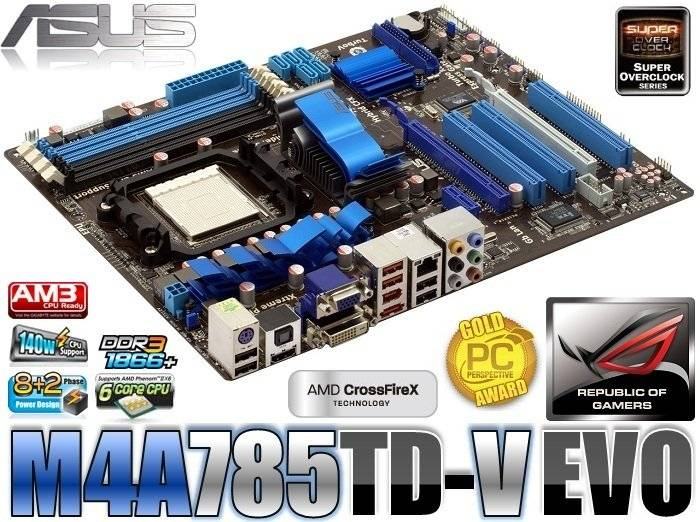

ASUS - M4A785TD-V EVO,DDR3 1800,HD 4200 GPU

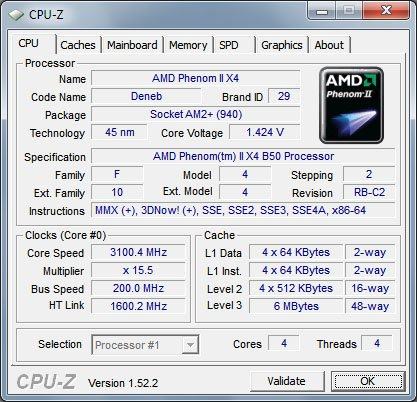

može i u kombinaciji sa procesorom Phenom x2 550 BE,unlokanog u X4 B50,ko je blizu može do mene da vidi kak to radi....500 kn proc sa kulerom sa heatpipeom..92 mm vent...
AMD Socket AM3 ;Phenom™II /Athlon™II /Sempron™ 100 Series Processors
AMD Cool 'n' Quiet™ Technology
Supports 45nm CPU AMD
AMD 785G/SB710
Up to 5200 MT/s HyperTransport™ 3.0
4 x DIMM, Max. 16 GB, DDR3 1800(O.C.)*/1600(O.C.)/1333/1066/800 ECC,Non-ECC,Un-buffered Memory
Dual Channel memory architecture
*AMD AM3 100 and 200 series CPU support up to DDR3 1066MHz
**Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit WindowsWindows® OS when you want to install 4GB or more memory on the motherboard.
2 x PCIe 2.0 x16 (blue @ x16 mode,gray @ x4 mode)
1 x PCIe x1
3 x PCI
ATI® CrossFireX™ Technology
Integrated ATI Radeon™ HD 4200 GPU
SidePort Memory - onboard 128MB DDR3 1333 memory
- Supports HDMI™ Technology with max. resolution up to 1920 x 1200 (1080P)
- Supports Dual-link DVI with max. resolution up to 2560x1600 @60Hz
- Supports D-Sub with max. resolution up to 2048x1536 @85Hz
- Hybrid CrossFireX™ Support
- Dual independent displays support with HDMI / DVI and D-Sub
- Supports Microsoft® DirectX 10.1, OpenGL 2.0, Shader Model 4.1
- Hardware Decode Acceleration for H.264,VC-1, and MPEG-2
- Maximum shared memory of 512MB
SB710 Chipset
1 xUltraDMA 133/100/66 for up to 2 PATA devices
5 xSATA 3 Gb/s ports Support RAID 0,1,10,JBOD
1 x eSATA 3Gb/s port
RTL8112L Gigabit LAN controller featuring AI NET 2
VT1708S 8-Channel High Definition Audio CODEC
- Supports Jack-Detection, Multi-Streaming, and Front Panel Jack-Retasking
- Optical S/PDIF Out ports at back I/O
VT6308P controller supports 2 x 1394a port(s) (1 at mid-board; 1 at back panel)
12 USB 2.0/1.1 ports (6 ports at mid-board, 6 ports at back panel)
ASUS Power Solutions:
- 8+2 Phase Power Design
ASUS Green Design:
- EPU
Express Gate
ASUS Quiet Thermal Solution:
- ASUS Fanless Design: Stylish heat sink solution
- ASUS Q-Fan
ASUS EZ DIY:
- ASUS CrashFree BIOS 3
- ASUS MyLogo 2
- ASUS EZ Flash 2
- Turbo V
- GPU NOS (*GPU NOS does not take effect under Hybrid CrossFireX mode.)
- Turbo Key
SFS (Stepless Frequency Selection)
- FSB tuning from 200MHz up to 550MHz at 1MHz increment
- PCI Express frequency tuning from 100MHz up to 150MHz at 1MHz increment
Overclocking Protection
- ASUS C.P.R.(CPU Parameter Recall)
100% All High-quality Conductive Polymer Capacitors
AMD OverDrive Support*
*Advanced cooling system is required when advanced overclock functions of AMD OverDrive are enabled.
1 x PS/2 Keyboard/Mouse Combo port
1 x DVI
1 x D-Sub
1 x HDMI
1 x External SATA
1 x S/PDIF Out (Optical)
1 x IEEE 1394a
1 x LAN(RJ45) port
6 x USB 2.0/1.1
8 -Channel Audio I/O
3 x USB connectors (6 ports)
1 x COM connector
1 x IDE connector
5 x SATA connectors
1 x CPU Fan connector
1 x Chassis Fan connectors
1 x Power Fan connector
Front panel audio connector
1 x IEEE 1394a connector
1 x S/PDIF Out Header
1x LPT connector
24-pin ATX Power connector
4-pin ATX 12V Power connector
System Panel
8 Mb Flash ROM AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3, ACPI 2.0a, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
WOL by PME,WOR by PME,WOR by Ring,PXE
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
