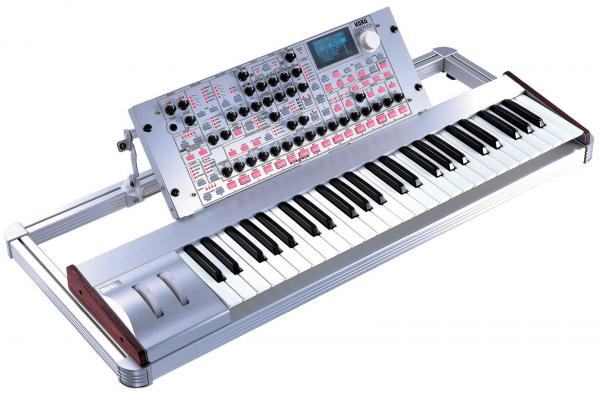

KORG RADIAS Synthesizer/Vocoder

Prodajem Korg Radias synth s klavijaturom .... Kao nov , korišten iskljucivo u studiu. Prva ruka,orginalno pakiranje sa svim uputama, softwerima i kablovima.

Cijena : 6000 kn

Specifications


Tone Generator:
MMT (Multiple Modeling Technology) synthesis

Maximum Polyphony - 24 voices

Varies depending on the parameters that make up the sound.

Structure:
Synth:
2 oscillators + noise generator:
Oscillator 1 - 9 basic waveforms, 4 types of modulation, PCM (64 synth sounds, 128 drum sounds)
Oscillator 2 - 4 basic waveforms, 2 types of modulation
2 filters (w/serial, parallel, individual routings):
Filter 1 (variable multi-mode) -24 dB Low Pass, -12 dB Low Pass, High Pass, Band Pass, Thru
Filter 2 (switchable multi-mode) Low Pass, High Pass, Band Pass, Comb
1 driver or wave shaper (11 types)
3 EGs
2 LFOs
6 virtual patches
3 modulation sequences

Vocoder:
16-band vocoder
variable level/pan for each channel
formant motion function (sixteen 7.5 sec. formant motion data sets can be recorded)
formant shift function
formant hold function

Envelope Follower:
A detected envelope can be used as a virtual patch source or effect control source, or to generate note-on/off (maximum 8-note polyphony)

Effect Section:
Number of Effects:
30 types

Structure:
2-band EQ + 2 Insert effects per timbre (x4) + 1 Master effect

Arpeggiator:
Arpeggio Type:
6 types (Up/Down/Alt1/Alt2/Random/Trigger)

Structure:
Switchable on/off for each of 32 steps

Step Sequencer:
Simultaneous polyphony:
8 notes


Structure:
Two 32-step sequencers (both can be linked for playback)
Three playback modes (OneShot/Loop/Step)
Step entry via keyboard or panel keys


Programs:
Number of Programs:
256 (16 x 16 banks, including program/user area)
128 Timbre Templates
128 Insert effect Templates
128 Master effect Templates


Structure:
Program = 4 timbres + 1 vocoder + 1 master effect + arpeggiator + 2 step sequencers
Timbre = 1 synth program or 1 drum kit + EQ + 2 insert effects

Drums:
Number of Programs:
32 kits


Structure:
One Timbre = 1 drum kit, one drum kit = 16 synth programs
A drum kit can be assigned to one of the four timbres in a program.

Connections:
Audio Inputs:
AudioIn1: 1/4” phone jack
AudioIn2: 1/4” phone jack and mini jack with Mic/Line SW

Audio Outputs:
MAIN OUTPUT (Lch/MONO, Rch): 1/4” phone jacks
INDIV. OUTPUT (Lch, Rch): 1/4” phone jacks
PHONES OUT: 1/4” stereo phone jack

Control Inputs:
Assignable Pedal
Assignable Switch
Keyboard (FROM KYBD)

MIDI:
In, Out, Thru

USB:
TYPE B connector

Display:
128 x 64 pixel full-graphic LCD with backlight

Power Supply:
DC 9 V

Dimensions:
RADIAS-R:
18.98” (W) x 7.28” (D) x 2.99” (H)
482 (W) x 185 (D) x 76 (H) mm


Accessories:
Included Items:
headset microphone (condenser microphone)
CD-ROM (PC editor software, etc.)
4 washers, 4 bushings, 4 screws (RADIAS-R only)
accessory shelf (RADIAS only)
AC adapter model – 500405013600/KA173
9V AC 4200ma Four-Pin Connection


RADIAS / RADIAS-R Options:
XVP-10 Exp/Vol Pedal
EXP-2 Expression Pedal
PS-1 Pedal Switch
DS-1H Damper Pedal

Windows system compatibility to connect via USB:
Windows:
• Supported OS: Microsoft Windows XP Home Edition/Professional/Vista

• Supported Computer: A computer with USB connector that meets the above requirements

Please use the latest Korg USB/MIDI driver

Macintosh system requirements to connect via USB:
Supported OS:
Mac OS X 10.2 or later

Supported Computer:
Apple Macintosh, including Intel/Mac with available USB port and the ability to run supported OS.

Sys. Req. for RADIAS Editor (Windows):
CPU:
Intel Pentium/Celeron 500 MHz or faster

Memory:
256 MB or more, 512 MB or more recommended

Monitor:
1024 x 768, 16-bit color or higher

Operating system:
Microsoft Windows XP Home Edition / Prof Edition Service Pack1 or later

A Vista compliant version will be released soon.

Sys. Req. for RADIAS Editor (MAC):
CPU:
Apple G4 400MHz or better

Memory:
256 MB or more, 512 MB or more recommended

Monitor:
1024 x 768, 32000 colors or higher

Operating system:
Mac OS X v.10.2.8 or later

Note: This software has been tested on Intel-based Macs, and while not Universal Binary compliant, runs fine under Rosetta.

*PCM sound processed with INFINITY.
