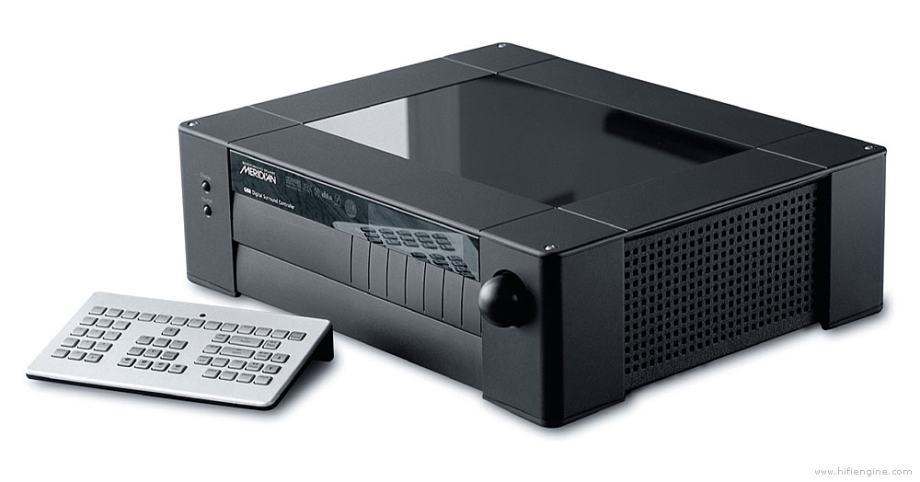

Meridian G 68, predpojačalo, DAC, Procesor, FM tuner, moguća zamjena

Meridian G 68, predpojačalo, DAC, procesor, FM tuner, originalni daljinski, uputstva, odlično stanje, moguća zamjena uz doplatu
Outline Specifications

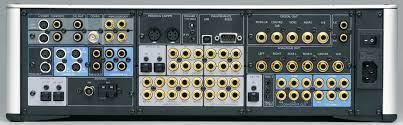

Most units* include: Digital (S/PDIF) Input: 4 x optical in, 6 coax stereo in,
2 x 6-ch MHR coax in
Analogue Input: 5 x stereo, 1 x 6-ch analogue in,
unbalanced
Tuner: AM (Long/Medium Wave, 150–285/525–1605
kHz); FM (VHF Band II, 87.5–108 MHz), sensitivity
2.0µv. Configurable channel spacing & emphasis for
US/EUR/ Japan, etc. DSP-based FM stereo width/blend
reduces noise on weak signals; AM whistle filter, LPF
Zone2/Tape/Zone3 Audio: 2 x analogue audio out, 2 x
digital out. BNC Meridian Comms
Comms: 2 x Meridian Comms (DIN) Trigger, IR in, USB,
RS232 remote control/configuration
Primary Options: G68D adds: Digital (S/PDIF) Output: 10-channel digital
surround out with MHR (5 x phono); 2 x analogue
out (phono)
G68ADV adds:
Analogue/Digital Output: 10-channel digital out w/MHR
(5 x phono); 8 channels of analogue out
Primary Video: 2 x S-Video out, 4 x S-Video in, 2 x
composite out, 4 x composite in
Component Video I/O: 1 x component video out, 3
x component video in (phono); Trigger 2, 3; 1 x additional optical digital in
A/V multi-zone (replaces Audio zone output): 2 x
S-Video out, 2 x composite video out, 2 x analogue
audio out, 2 x digital out. BNC Meridian Comms.
G68AXV adds: Bal/Unbal Analogue Out instead of
digital outputs: L, R, C, Sub balanced outs (XLR-3F); 6
x surround outs, unbalanced
G68XXV adds: Balanced Analogue Out instead of the
listed outputs: 8 x balanced outputs, XLR-3F
*G68J is as the G68ADV but without the tuner, multizone capability and video switching
Processing: 5 x Motorola 56367s running at 150MHz to give a
total of approx. 750MIPS (million instructions per
second). 48-bit arithmetic throughout.
Conversion: 24-bit Sigma-Delta converter chips operating at up to
96 kHz on analogue inputs and outputs
Analogue ins: 0.5–2.5Vrms adjustable, input impedance 20kΩ
Analogue outs: Variable between 0 and 3.5Vrms, output impedance
47Ω. Distortion
