CNC GLODALICA ZA DRVO MOD. mod. D75-2 proiz. HJ tommasiniles

br. 1 Cnc Glodalica mod. D75-2 proiz. HJ tommasiniles
tehn. Opis:
radne dimenzije 1300 x 2500 x z 300 mm.

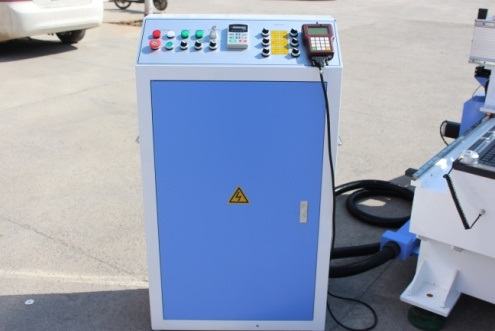

NC kontrola RichAuto A15 DSP hand control

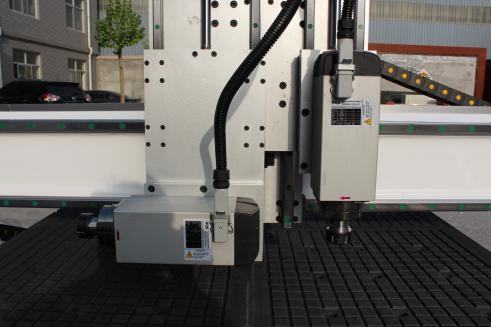

br. 1 glodalica vertikalna mod. HQD 7,5 kw 6.000-18.000 ok.min
br. 1 glodalica horizontalna mod. HQD 7,5 kw 6.000-18.000 ok.min
br. 1 vakuski stol u 6 polja jacina motora 5,5 kw sa pumpu za vacuum

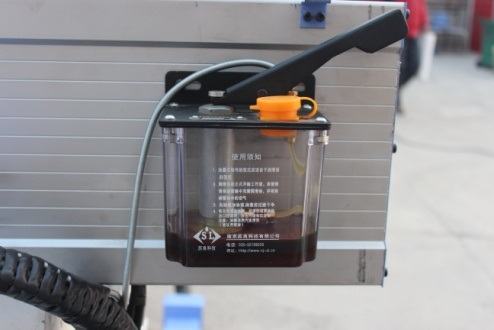

rucno podmazivanje vodilice stroja

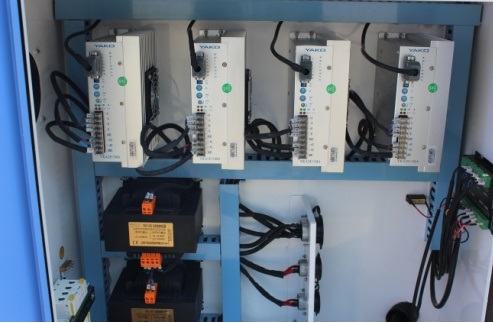

YAKO 2811 Driver Japan YASKAWA Servo motor
Taiwan 30 HIWIN vodilice ravne traju 10 puta vse od normalne

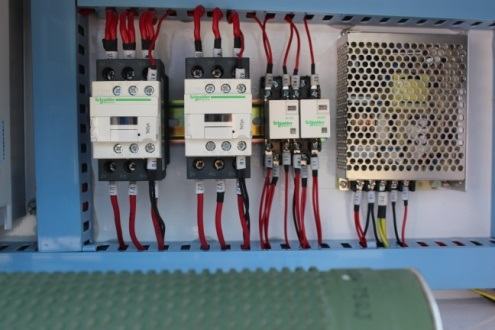

France import Schneider electric parts,
dimenzije stroja 1900 x 3100 x 1760mm
tacnost ±0.0025mm
bezkonacni vijak Z vodilice na ricirkulaciju kolute
ravne vodilice 30 square/Taiwan HIWIN Max. speed 30000 mm/min
Max. brzina 20000 mm /min
br. 2 radne jedinice po 7.5kw svaka HQD hladjenje na zrak 6.000-18.000 ok.min
Inverter power Fuling Working voltage 380V, 50/60Hz,

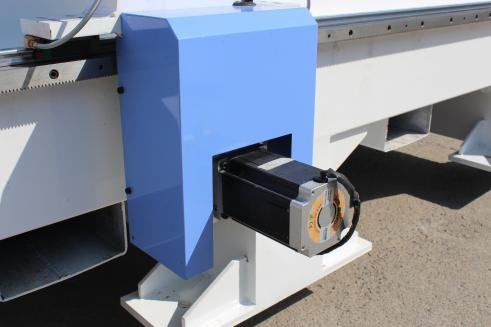

Motor i Driver mod. 450C stepper motor and YAKO 2811 driver
3-phase Command code G code / HPGL
Computer interface USB 2.0 Collet ER32-12.7mm,6mm,8mm,3.175mm Software Type3
Software/Artcam/Ucancam Controls DSP A15 control system
Packing dimensions 2250 x 3300 x 1950mm , 1800kg ( Gross Weight )
cijena € 15.400,00


novo isporuka 80 dana od naruzbe
montaza ukljucena
servis u hrvatskoji
garancija :1 god.
