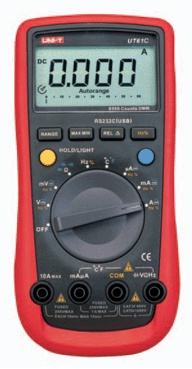

UNI-T UT61C DIGITALNI MULTIMETAR PC USB RS232

  • Cijena: 500kn
  • Približno: 65
  • Šifra oglasa: 4715227
  • Objavljen:
  • Do isteka je još:
  • Oglas prikazan: puta
DIGITALNI MULTIMETAR 180 x 87 x 47mm
MJERI : ISTOSMJERNI NAPON DO 1000 V, IZMJENIČNI NAPON DO 750 V
ISTOSMJERNU I IZMJENIČNU STRUJU DO 10 A
OTPOR DO 60 Mohma , ZUJALICA ,RS 232-USB, Duty Cycle
FREKVENCIJA 10 Hz - 10 MHz, KAPACITET DO 4000 uF
DIODNI TEST, DATA HOLD,SLABA BATERIJA,OSVJETLJENJE
DISPLAY :65 x 43mm,ANALOGNI BAR GRAPH, PRIKAZUJE SVE SIMBOLE
USB NA SERISKI PRIKLJUČAK

http://www.uni-trend.com/UT61C.html

SPECIFICATIONS
Basic Functions Range Best Accuracy
DC Voltage

60mV/600mV/6V/60V/600V/1000V
(0.5%+1)
AC Voltage 60mV/600mV/6V/60V/600V/750V (1.0%+3)
AC Current 600mA/6000mA/60mA/600mA/6A/10A (1.2%+5)
DC Current 600mA/6000mA/60mA/600mA/6A/10A (1.0%+3)
Resistance 600W/6kW/60kW/600kW/6MW/60MW (1.0%+2)
Capacitance 40nF/400nF/4mF/40mF400mF/4000mF (3.0%+5)
Frequency 10Hz-10MHz (0.1%+4)
Frequency Response 0 45Hz~1kHz
Duty Cycle 0.1%~99.9%
Temperature (°C) -40°C~1000°C (1.2%+3)
Temperature (°F) -40°F~1832°F (1.2%+4)
Special Functions
Auto/Manual Ranging
Diode
Continuity Buzzer
Data Hold
Max/Min Mode
Display Backlight
REL
Sleep Mode Around 15 Minutes
Analogue Bar Graph 61

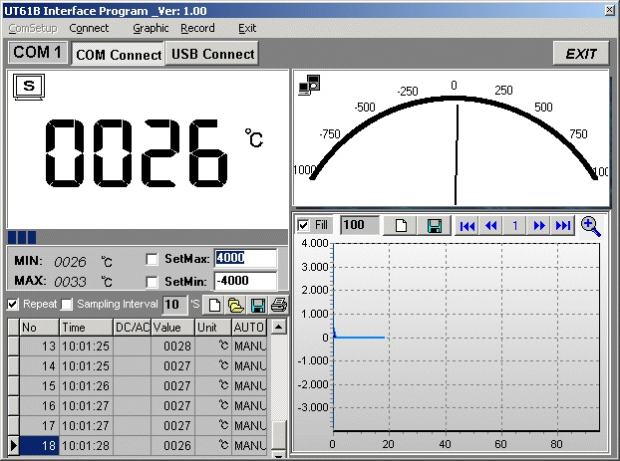

RS232(USB)
Input Protection
Input Impedance for DC Voltage Measurement Around 10MW
Low Battery Display ≤7.5V
Max Display 6000
GENERAL CHARACTERISTICS
Power 9V Battery (6F22)
LCD Size 65 x 43mm
Product Colour Red and Grey
Product Net Weight 370g
Product Size 180 x 87 x 47mm

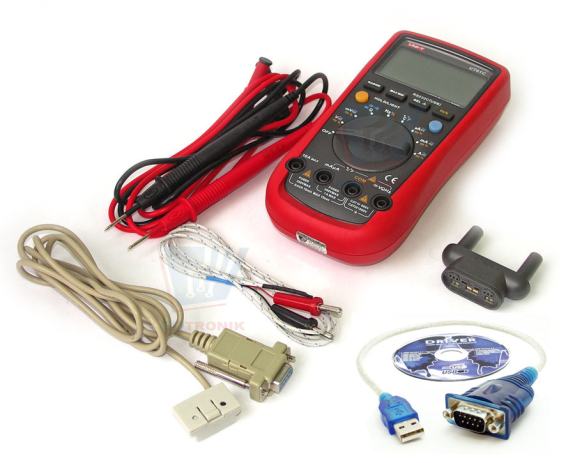

Standard Accessories Battery, Test Lead, English Manual, Multi-Purpose Socket, RS232 Interface Cable,Software, Point Contact Temperature Probe
Optional Accessories* USB Interface Cable
